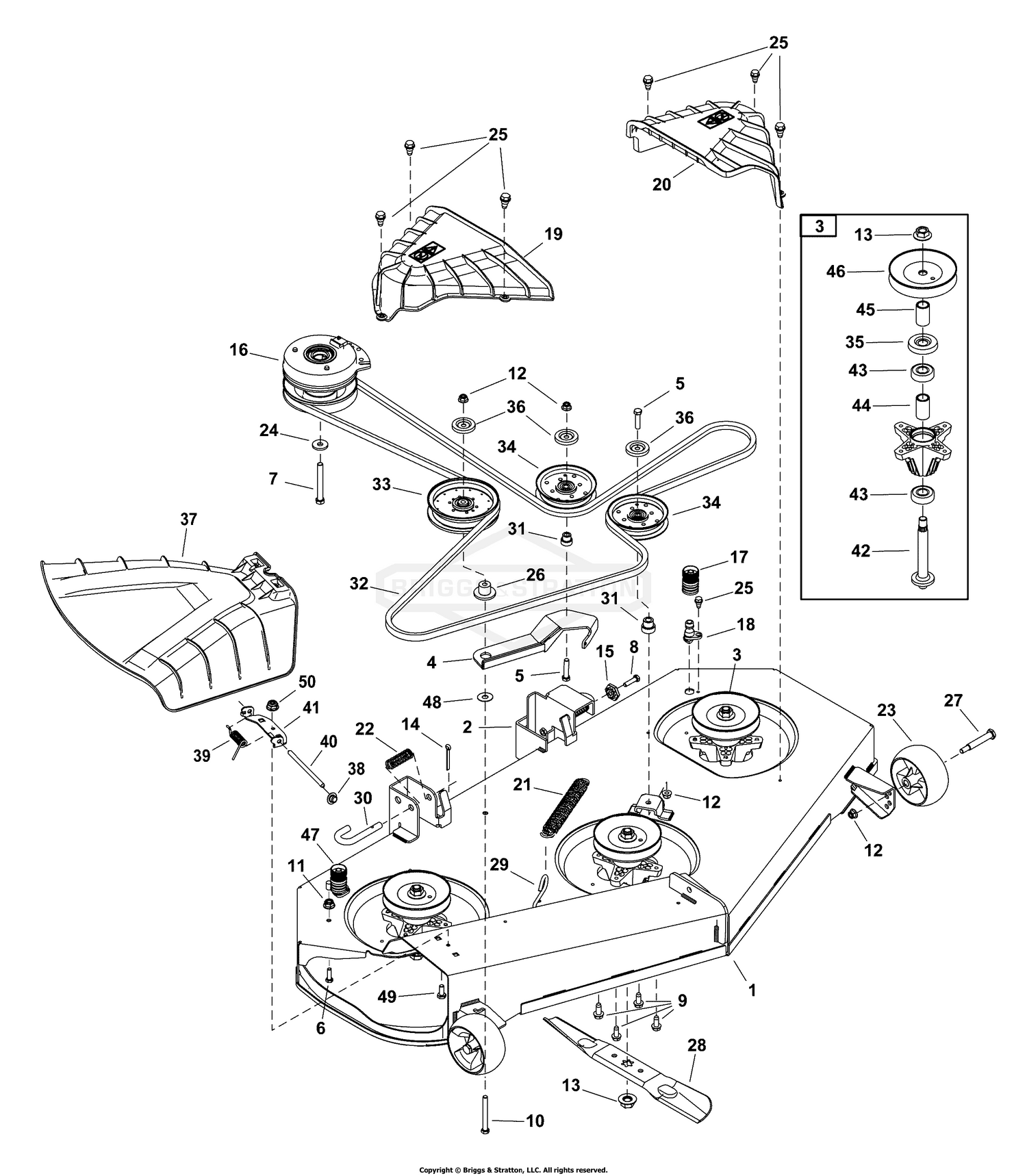

| Ref | Part Number | Description |
|---|
| 2 |
84003505 |
BRACKET, Deck Lift Price: $119.99 |
| 4 |
84003506 |
ASSEMBLY, Idler Arm Price: $124.99 |
| 5 |
771374 |
SCREW 3/8-16 X 1.75 GR5, Hex Price: $7.09 |
| 6 |
771319 |
SCREW, 5/16-18 X 1.00, Hex Cap Price: $6.64 |
| 7 |
771375 |
SCREW, 7/16-20 X 3.5 GR5 Price: $6.39 |
| 8 |
771315 |
SCREW, 3/8-16, Hex Flange Price: $3.99 |
| 9 |
771311 |
SCREW, 5/16-18 X .750, Hex Washer Price: $5.87 |
| 10 |
771377 |
SCREW, 3/8-16 X 3.25 GR8 Price: $9.79 |
| 11 |
84005079 |
LOCKNUT Price: $7.49 |
| 12 |
703333 |
NUT, 3/8-16 Price: $4.26 |
| 13 |
771318 |
NUT, 5/8-18 Hex Flange Price: $9.62 |
| 14 |
771320 |
PIN, 5/32 X 1.25, Cotter Price: $7.92 |
| 15 |
771321 |
GEAR, Deck Adjustment Price: $16.99 |
| 16 |
771322 |
CLUTCH, Electric PTO Price: $679.99 |
| 17 |
703557 |
ADAPTER, Water Nozzle Price: $38.55 |
| 18 |
703502 |
NOZZLE, Water Price: $5.54 |
| 19 |
771390 |
COVER, Spindle, RH Price: $63.99 |
| 20 |
771391 |
COVER, Spindle, LH Price: $48.99 |
| 21 |
771325 |
SPRING, 1.25 OD X 1.751, Extension Price: $33.69 |
| 22 |
771324 |
SPRING, .66 X 1.9, Compression Price: $4.79 |
| 23 |
771326 |
WHEEL, 5.0, Deck Ball Price: $50.99 |
| 24 |
771328 |
WASHER, .450 X 1.25 X .164, Flat Price: $10.09 |
| 25 |
84005076 |
SCREW, Shoulder, 1/4-20 x 1/2 Price: $7.59 |
| 26 |
771386 |
SPACER, Shoulder Price: $7.59 |
| 27 |
771331 |
SCREW, .5 X 2.5 X 3/8-16, Shoulder Price: $11.49 |
| 28 |
771387 |
BLADE, 18.61" (2N1) Price: $38.92 |
| 29 |
771333 |
ROD, Deck Spring Price: $5.89 |
| 30 |
771334 |
ROD, Deck Hangar Price: $14.29 |
| 31 |
771159 |
SPACER, Shoulder Price: $6.99 |
| 32 |
771388 |
V-BELT, B Sec X 148.25 LG Price: $137.08 |
| 33 |
771337 |
PULLEY, 5.00 DIA., Idler Price: $56.99 |
| 34 |
771389 |
PULLEY, IDLER Price: $57.99 |
| 35 |
771339 |
SHIELD, Bearing Price: $9.59 |
| 36 |
771164 |
PULLEY CAP, Idler Pulley Price: $8.39 |
| 37 |
84003507 |
ASSEMBLY, Chute Price: $159.99 |
| 38 |
771327 |
CAP, Push Price: $6.99 |
| 39 |
771346 |
SPRING, .440 ID X 1.75, Torsion Price: $6.09 |
| 40 |
771345 |
PIN, Hinge Price: $4.79 |
| 41 |
771347 |
BRACKET, Chute, 42? Price: $21.49 |
| 42 |
771396 |
SHAFT, 6.11" LG, Blade Spindle, Star Price: $72.99 |
| 43 |
771341 |
BEARING, Ball Price: $24.49 |
| 44 |
771342 |
SPACER, .792 X 1.060 X 1.860 Price: $10.59 |
| 45 |
771395 |
SPACER, .792 X 1.060 X 1.782 Price: $10.01 |
| 46 |
771393 |
PULLEY, 5.57" Dia., Spindle Price: $35.99 |
| 47 |
771330 |
CAP, .290 X .500 Price: $6.98 |
| 48 |
771384 |
WASHER, 3/8, Flat Price: Call Us |
| 49 |
771317 |
SCREW, 1/4-20 X .62, Hex Cap Price: $6.58 |
