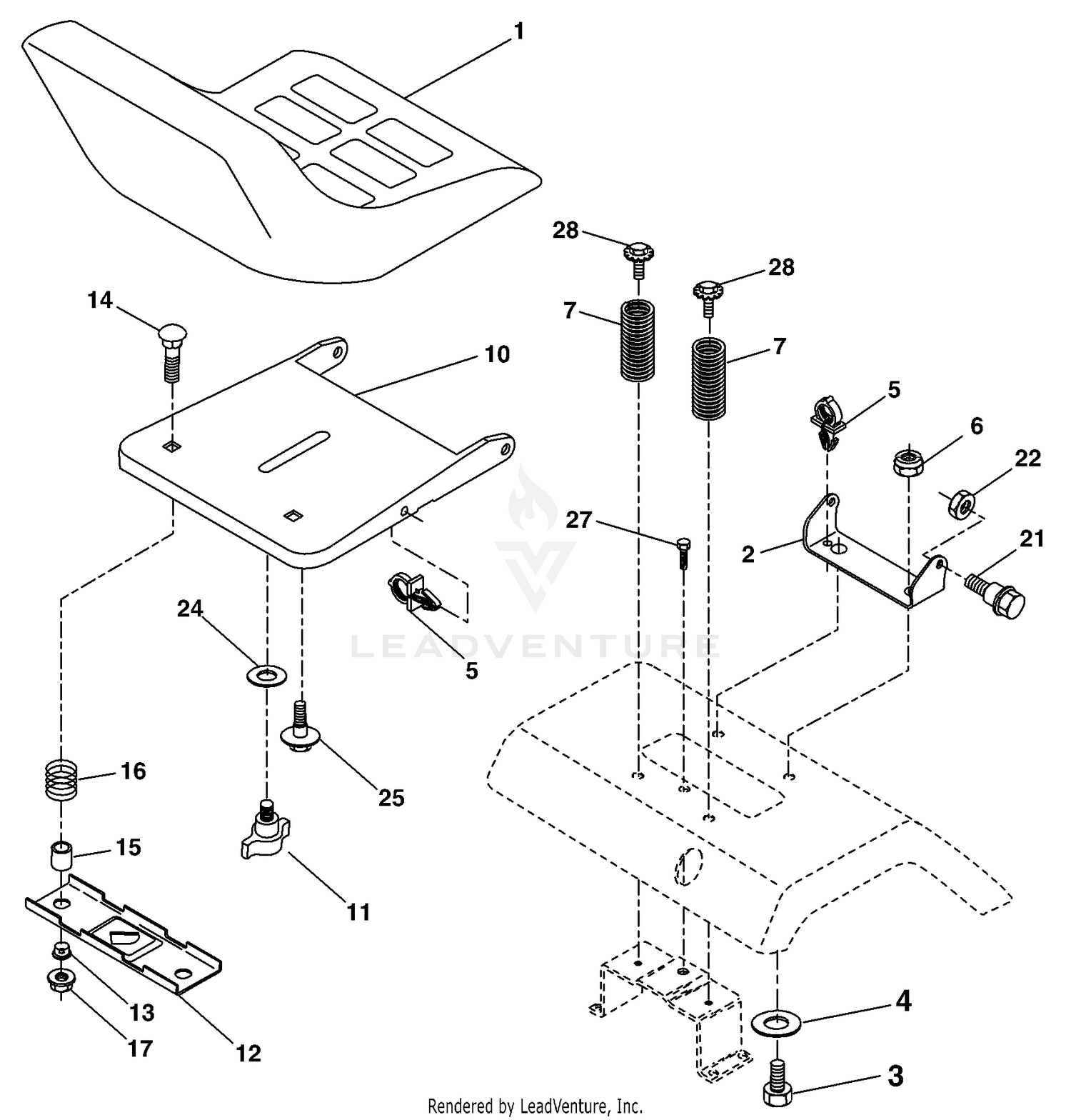

| Ref | Part Number | Description |
|---|
| 1 |
140117 |
Seat Price: Call Us |
| 1 |
95-1821 |
SPRING-COMPRESSION Price: $6.71 |
| 2 |
140551 |
Bracket Pivot Seat 8 720 Price: Call Us |
| 2 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 3 |
71110616 |
Bolt Fin Hex 3/8-16 Unc x 1 Price: Call Us |
| 4 |
19131610 |
Washer Flat 13/32 x 1 x 10 Ga. Price: Call Us |
| 4 |
21-2850-01 |
MOUNT-PEDAL, RH Price: $69.64 |
| 5 |
145006 |
Clip Push-In Price: Call Us |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 6 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 6 |
73800600 |
Nut Hex w/Ins. 3/8-16 Unc Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 8 |
233-17 |
KNOB Price: $10.58 |
| 9 |
82-8670 |
ROD-LATCH, BRAKE Price: $61.33 |
| 10 |
182493 |
Pan Seat Price: Call Us |
| 10 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 11 |
166369 |
Knob Seat Adj. Wingnut Price: Call Us |
| 11 |
323-15 |
SCREW-HH Price: $1.53 |
| 12 |
121246X |
Bracket Mounting Switch Price: Call Us |
| 12 |
88-1720 |
PAD-FOOTREST Price: $5.27 |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 13 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 14 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 14 |
72050412 |
Bolt Rdhd Sqnk 1/4-20 x 1-1/2 Price: Call Us |
| 15 |
134300 |
Spacer Split Price: Call Us |
| 15 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 16 |
88-1710-01 |
FOOTREST ASM Price: $62.29 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr 5 Zinc Price: Call Us |
| 17 |
88-1680-01 |
BRACKET-FOOTREST Price: $17.86 |
| 18 |
3220-5 |
NUT-JAM Price: $0.65 |
| 19 |
21-0141 |
RH BALL JOINT ASM This part replaces 21-0141-03. Price: $109.12 |
| 20 |
3220-3 |
NUT-HJ Price: $0.28 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 Unc Price: Call Us |
| 21 |
32128-20 |
NUT-HF Price: $0.99 |
| 22 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 22 |
73800500 |
Nut Hex Lock W/Ins 5/16-18 Price: Call Us |
| 23 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 24 |
19171912 |
Washer 17/32 X 1-3/16 x 12 Ga. Price: Call Us |
| 24 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 25 |
127018X |
Bolt Shoulder 5/16-18 x 62 Price: Call Us |
| 25 |
88-1650 |
SHAFT-PEDAL, TRACTION Price: $55.18 |
| 26 |
88-1640 |
PIN-PEDAL, TRACTION Price: $17.64 |
| 27 |
108-1380 |
LH BRAKE CABLE ASM Price: $162.33 |
| 27 |
17490608 |
Screw 3/8-16 x 1/2 Price: Call Us |
| 28 |
108-1379 |
RH BRAKE CABLE ASM Price: $162.33 |
| 29 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 30 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 31 |
88-1670 |
PIVOT BRACKET ASM Price: $109.29 |
| 32 |
88-0470 |
TUBE-SPACER, PEDAL Price: $10.25 |
| 33 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 34 |
23-2240-03 |
PUMP CONTROL TUBE ASM Price: $209.72 |
| 35 |
94-3304-01 |
SUPPORT-PEDAL Price: $121.34 |
