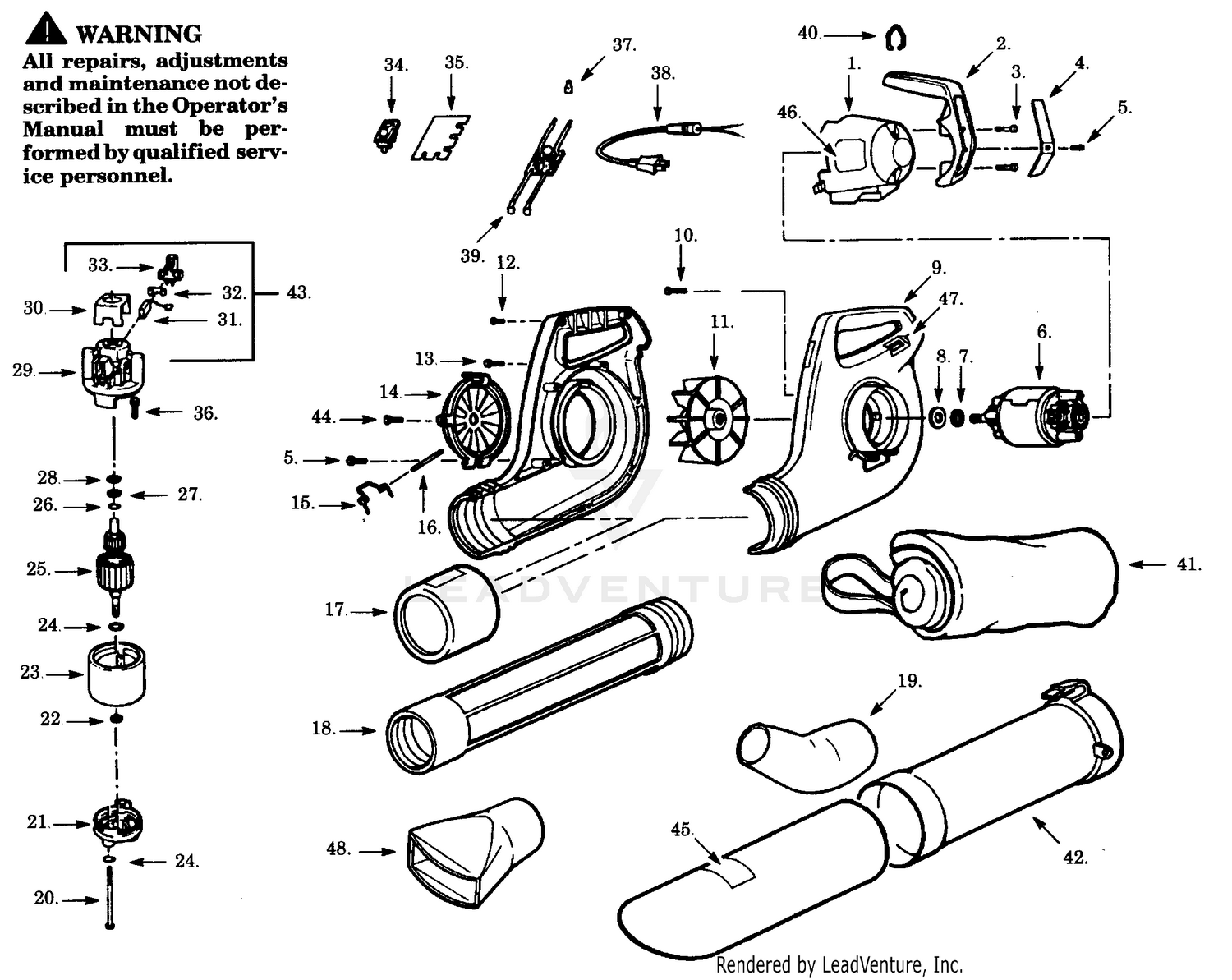

BLOWER ASSEMBLY
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 112-0029 | SPIKER ADAPTER ASM Price: $981.19 |
| 1 | 534319602 | Motor Cover Price: $11.99 |
| 2 | 3272-11 | PIN-COTTER Price: $0.99 |
| 2 | 534319705 | Handle Price: $22.99 |
| 3 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 3 | 530015772 | Screw Price: $1.99 |
| 4 | 283-83 | PIN-CLEVIS Price: $9.52 |
| 4 | 534404355 | Plate Warning Price: $1.99 |
| 5 | 3296-25 | NUT-LOCK, NI Price: $1.34 |
| 5 | 534908400 | Screw Price: $0.99 |
| 6 | 534992001 | Motor Price: $74.99 |
| 6 | 92-2651 | WASHER Price: $1.83 |
| 7 | 112-0038 | SPACER Price: $7.34 |
| 7 | 534747011 | Retaining Ring Price: $1.99 |
| 8 | 534757900 | Washer Price: $1.99 |
| 8 | 99-7984 | KNOB-SOFT GRIP, PUSH-ON Price: $11.31 |
| 9 | 112-7695-03 | HANDLE Price: $53.91 |
| 9 | 534491722 | L.H/R.H. Housing Price: $3.33 |
| 10 | 323-12 | SCREW-HH Price: $1.14 |
| 10 | 534967501 | Screw Price: $0.99 |
| 11 | 534398315 | Impeller Ass'y. Price: $3.33 |
| 11 | 75-5270 | SPACER-KNOB, SEAT This part replaces 99-2058. Price: $4.61 |
| 12 | 144-7093 | LINK ASM This part replaces 110-8105. Price: $105.96 |
| 12 | 534790302 | Screw Price: $1.99 |
| 13 | 323-10 | SCREW-HH Price: $0.89 |
| 13 | 534790300 | Screw Price: $3.33 |
| 14 | 112-7686 | LATCH Price: $40.54 |
| 14 | 534498205 | Inlet Cover Price: $2.56 |
| 15 | 3296-44 | NUT-LOCK, NI Price: $2.46 |
| 15 | 534475900 | Spring Price: $1.99 |
| 16 | 534327201 | Hinge Pin Price: $2.99 |
| 17 | 534408415 | Ferrule Sleeve Price: $8.99 |
| 18 | 534352705 | Outlet Tube Price: $7.99 |
| 19 | 530401318 | Concentrated Nozzle Price: $4.99 |
| 20 | 534228700 | Screw Price: $1.99 |
| 21 | 534207101 | Endbell Ass'y. (Drive) Price: $3.33 |
| 22 | 534228802 | Washer Price: $0.99 |
| 23 | 534227001 | Field Ass'y. Price: $24.99 |
| 24 | 534994500 | Retaining Ring Price: $0.99 |
| 25 | 534920101 | Armature Ass'y. Price: Call Us |
| 26 | 534246700 | Retaining Ring Price: $0.99 |
| 27 | 534228800 | Washer Price: $1.99 |
| 28 | 534238903 | Washer Price: $1.99 |
| 29 | 534227501 | Endbell Ass'y. (Brush) Price: $3.33 |
| 30 | 534226000 | Insulator Price: $3.33 |
| 31 | 534227800 | Brush Price: $3.16 |
| 32 | 534228000 | Brush Spring Price: $1.99 |
| 33 | 534227700 | Brush Holder Price: $3.33 |
| 34 | 534447903 | On-Off Switch Ass'y. Price: $3.99 |
| 35 | 534334800 | Mounting Board Price: $1.99 |
| 36 | 534624001 | Screw Price: $3.33 |
| 37 | 534253201 | Wire Nut Price: $0.99 |
| 38 | 534970301 | Power Cord/Harness Ass'y. Price: Call Us |
| 39 | 534807002 | P.C. Board Ass'y. Price: Call Us |
| 40 | 534270100 | Hanger Price: $1.99 |
| 41 | 530095114 | Vacuum Bag Price: $27.99 |
| 42 | 534528705 | Vacuum Tube Price: $3.33 |
| 44 | 534826801 | Screw Price: $1.99 |
| 45 | 534970600 | Warning Label-Tube (Not a serviceable part) Price: Call Us |
| 46 | 534970800 | Motor Cover Label (Not a serviceable part) Price: Call Us |
| 47 | 534500300 | Switch Position Label Price: $3.33 |
| 48 | 530053890 | Nozzle This part replaces 530036769. Price: $7.99 |
