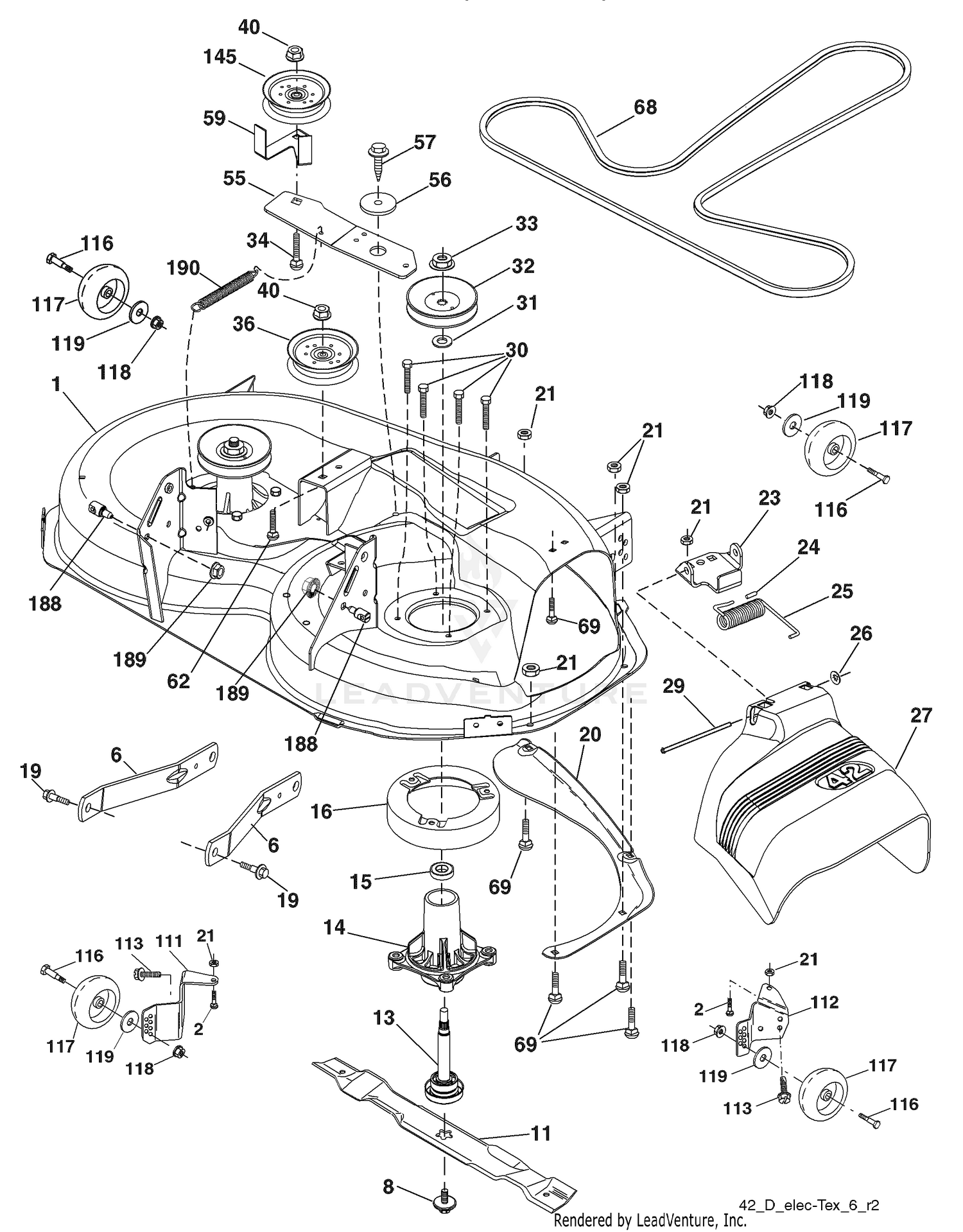

Mower Deck

Mower Deck

Parts (67)

RefPart NumberDescription
1 285-17 PLUG-PIPE This part replaces 285-10. Price: $2.59
1 598602801 Decks This part replaces 532418616. Price: $349.99
2 5-2795 DISCONTINUED Price: Call Us
2 595901601 GSPW Bolts This part replaces 872140506. Price: $2.99
3 5-2896 PIVOT *R Price: $2.44
4 3256-4 WASHER-FLAT Price: $0.28
5 3253-21 WASHER-LOCK Price: $0.28
6 323-6 SCREW-HH Price: $0.66
6 529846401 SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99
7 5-2845 ROLLER HANGER WA *RO Price: $188.44
8 3290-212 WASHER-SPRING Price: $1.56
8 532193003 BOLT.WASHER.ASM.7/16-2 Price: $6.99
9 3272-12 PIN-COTTER Price: $0.25
10 3245-35 SCREW-SET, HSH Price: $0.41
11 5-2808 DISCONTINUED Price: Call Us
11 532139755 Blade, 42", Mulching PREMIUM Price: Call Us
12 237-69 O-RING Price: $5.72
13 11-3050 SLEEVE Price: $53.95
13 587819701 KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99
14 253-118 SEAL-OIL Price: $18.29
14 587819701 KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99
15 5-1384 HOUSING-BEARING Price: $84.20
15 532110485 BEARING Price: $11.99
16 251-205 BEARING-BALL Price: $40.83
16 531167701 SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99
17 32151-13 RING-RETAINING Price: $4.39
18 237-68 O-RING Price: $3.22
19 3272-6 PIN-COTTER Price: $0.25
19 532196539 BOLT.SHOULDER Price: $5.99
20 283-2 PIN-CLEVIS Price: $12.99
20 531167001 SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99
21 282-1 DISCONTINUED Price: Call Us
21 596040501 Hardware This part replaces 873680500. Price: $2.99
22 5-1686 ADJ ROD Price: $41.75
23 5-2856 DISCONTINUED Price: Call Us
23 532192557 BRKT.DEFLECTOR.38"2005+ Price: $7.99
24 3290-255 PIN-COTTER, HAIR Price: $7.89
24 532105304 CAP-SLEEVE LT Price: $3.99
25 5-5910 DISCONTINUED Price: Call Us
25 532197026 SPRING.TORSION.DEFLECT Price: $8.99
26 532110452 NUT PUSH M Price: $2.99
27 532403004 SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99
29 595297001 Rods This part replaces 532131491. Price: $4.99
30 584953901 BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99
31 532187690 WASHER.SPACER.MANDREL Price: $3.99
32 532173436 PULLEY MANDREL This part replaces 532153535. Price: $14.99
33 596134801 Nuts This part replaces 532400234. Price: $1.00
34 596136101 GSPW Bolts This part replaces 872110612. Price: $2.99
36 532196106 PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99
40 532409149 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99
55 531169401 SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99
56 532199092 SPACER.RETAINER Price: $5.99
57 817000616 SCREW 3/8-16X1 Price: $5.99
62 596136301 Bolts This part replaces 872110616. Price: $2.99
68 532144959 BELT V SECONDARY Price: $37.99
69 596136401 Bolts This part replaces 872140505. Price: $2.99
111 531170801 SERVICE KIT BRKT.WHEEL.GAUGE B This part replaces 532404784. Price: $8.99
112 531170901 SERVICE KIT BRKT.WHEEL.GAUGE B This part replaces 532404785. Price: $8.99
113 817000510 BOLT.5/16HEX.WHS.HD Price: $4.99
116 596434402 Bolts This part replaces 532124842. Price: $3.99
117 589527401 WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $9.99
118 596322601 Nuts This part replaces 873930600. Price: $2.99
119 596134901 GSPH This part replaces 819121414. Price: $2.99
145 532177968 PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99
188 593824001 STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99
189 596135701 GSPW Nuts This part replaces 873900500. Price: $2.99
190 532197251 SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99
