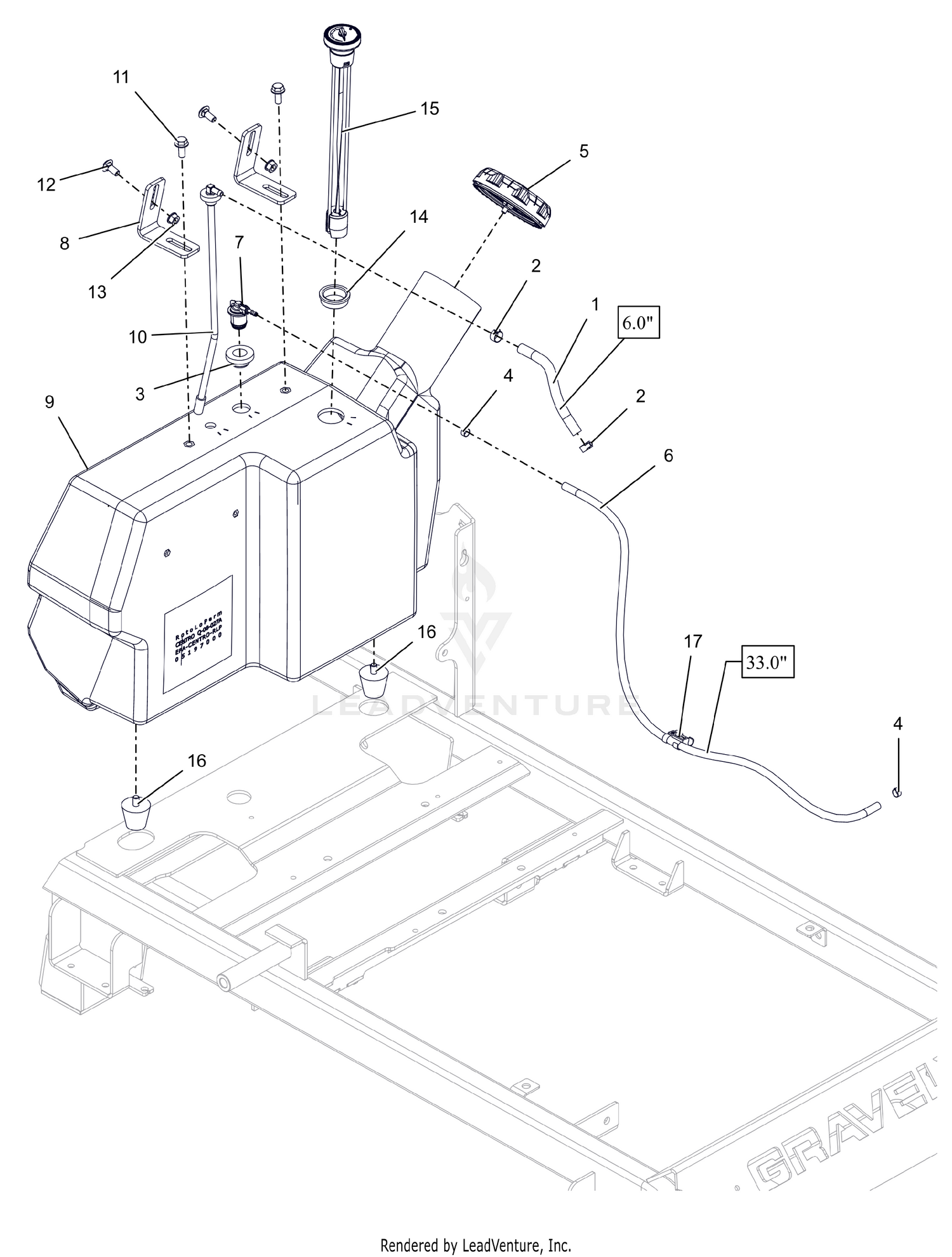

| Ref | Part Number | Description |
|---|
| 2 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 3 |
04082700 |
GROMMET, REMOTE VENT NITRILE Price: $3.45 |
| 4 |
04097700 |
CLAMP-HOSE- SPRING .188 Price: $1.45 |
| 5 |
09190300 |
CAP, FUEL - 3.50 RATCHET INLET VENT This part replaces 04558000. Price: $30.95 |
| 6 |
04745900 |
HOSE- .188 30R7 BULK Price: $0.95 |
| 7 |
05185600 |
VALVE, COMBINATION VENT 3/16 Price: $16.45 |
| 8 |
05192553 |
BRKT, TANK HOLDDOWN Price: $50.95 |
| 9 |
05197000 |
ASSY,48-60 PROSTANCE FUEL TANK Price: $305.95 |
| 10 |
05248300 |
ASM, PROSTANCE FUEL LINE PICK-UP Price: $15.45 |
| 11 |
07001820 |
BLT, SERHFWH 0.312-18X0.75 GR5 ZCC Price: $1.95 |
| 12 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC Price: $2.45 |
| 13 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 14 |
07500221 |
GROMMET, FUEL GAUGE Price: $5.45 |
| 15 |
07500601 |
GUAGE-REMOTE SEALED FUEL-12.0" This part replaces 07500310. Price: $35.95 |
| 16 |
07500428 |
BUMPER, STUD MOUNTED CONE SHAPED Price: $10.45 |
