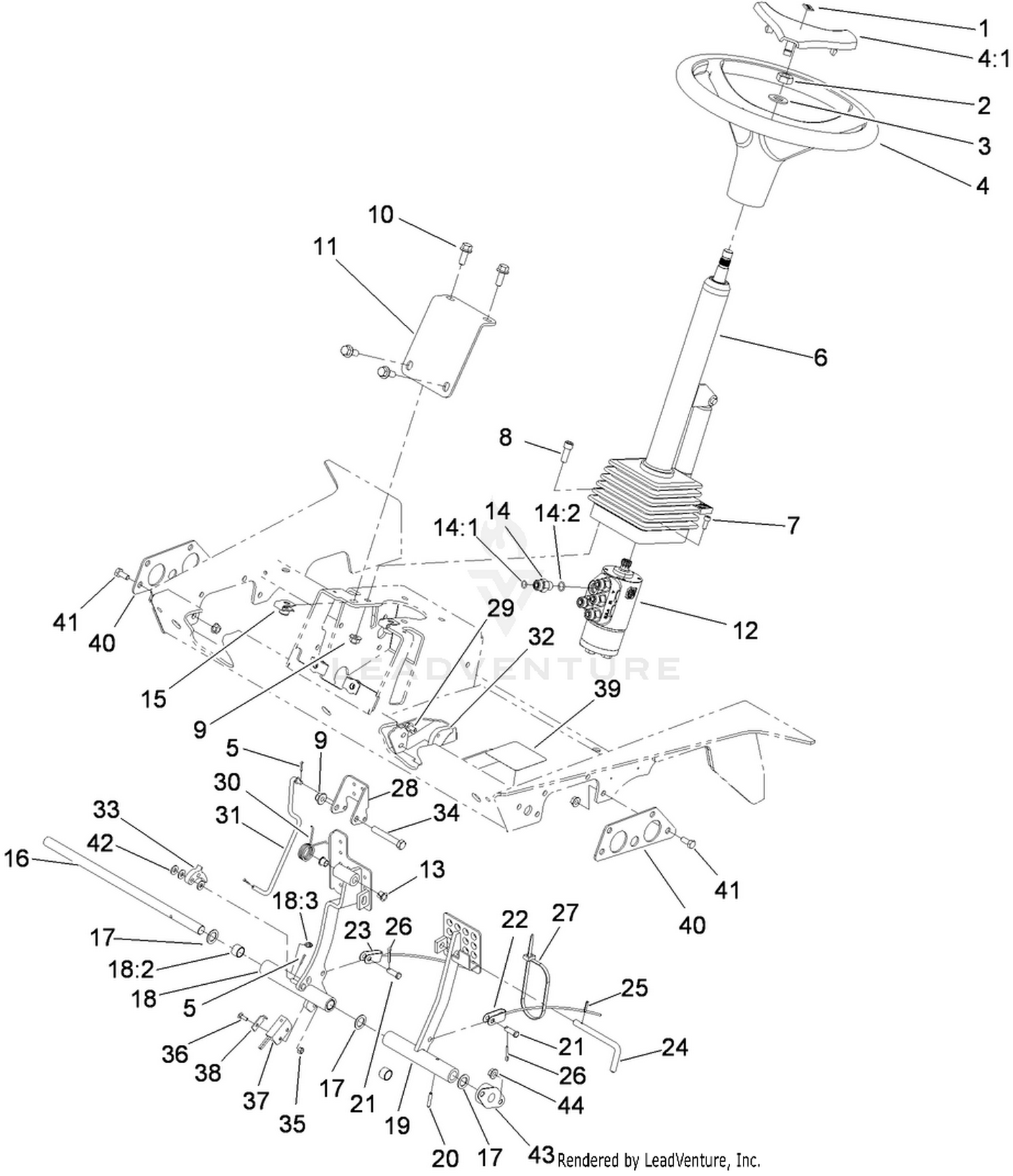

| Ref | Part Number | Description |
|---|
| 1 |
98-1459 |
DECAL Price: $3.93 |
| 2 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 3 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 4 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 5 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 6 |
106-3622 |
STEERING TILT COLUMN ASM Price: $715.85 |
| 7 |
105-2409 |
SCREW-HSH Price: $0.68 |
| 8 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 11 |
115-4379-0P |
BRACE-COLUMN This part replaces 115-4379-01. Price: $26.14 |
| 12 |
114-8119 |
STEERING VALVE ASM Price: $865.12 |
| 13 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 14 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 15 |
105-4886 |
NUT-TINNERMAN This part replaces 112-4576. Price: $2.37 |
| 16 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 17 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 18 |
136-2889 |
PEDAL-BRAKE, RH This part replaces 119-0005. Price: $429.93 |
| 19 |
136-2887-03 |
PEDAL-BRAKE, LH This part replaces 115-4421-03. Price: $159.32 |
| 20 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 21 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 22 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 23 |
92-7529 |
CABLE-BRAKE, RH Price: $132.98 |
| 24 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 25 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 27 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 28 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 29 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 30 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 31 |
115-4417 |
ROD-BRAKE PAWL Price: $43.81 |
| 32 |
119-0002 |
PAWL-BRAKE Price: $38.81 |
| 33 |
120-1691 |
DETENT-BRAKE Price: $32.54 |
| 34 |
323-12 |
SCREW-HH Price: $1.14 |
| 35 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 36 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 37 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 38 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 39 |
117-4763 |
DECAL-BRAKE Price: $15.19 |
| 40 |
106-7794-01 |
PLATE-MOUNT, HYD FITTING Price: $15.21 |
| 41 |
322-3 |
SCREW-HH Price: $0.79 |
| 42 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 43 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
