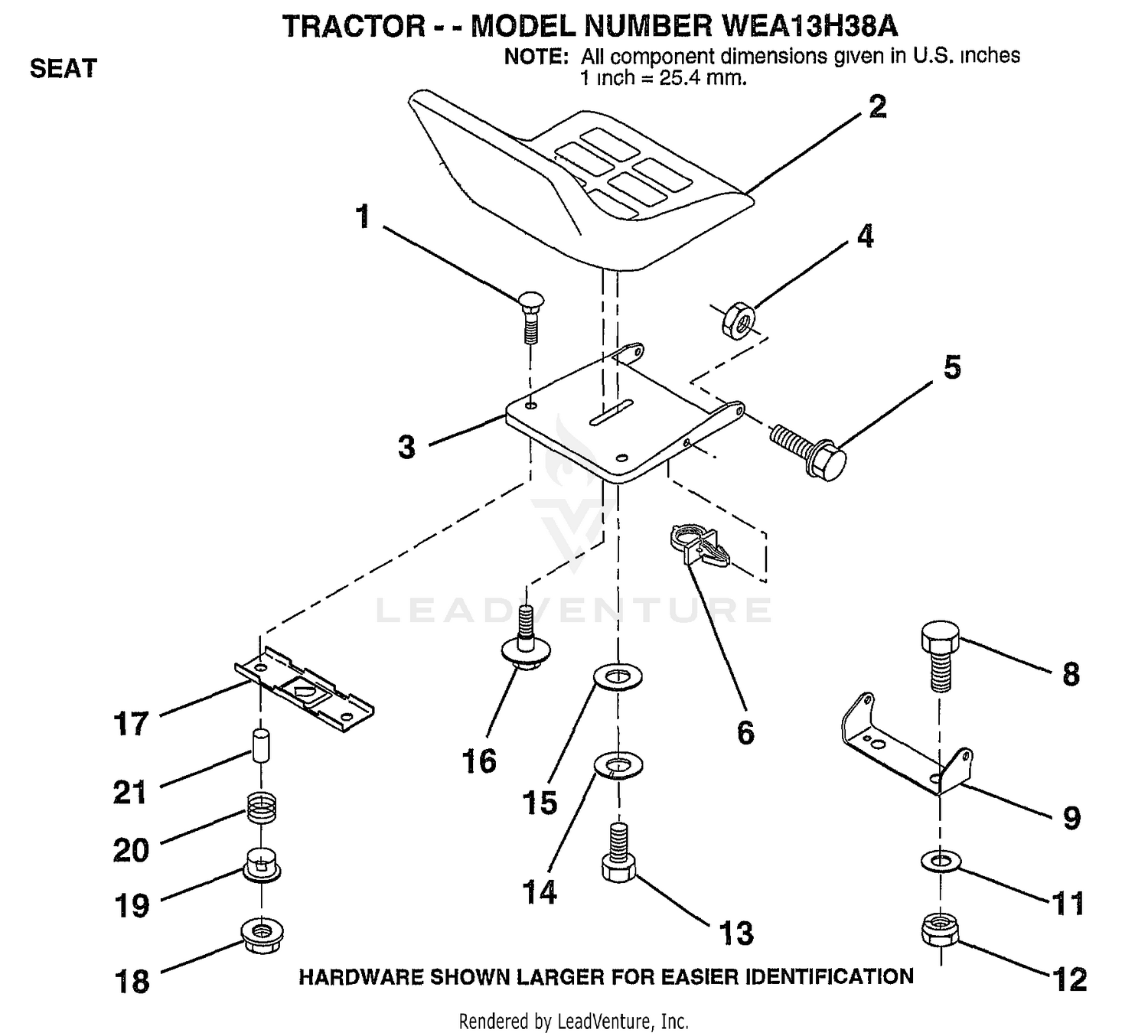

| Ref | Part Number | Description |
|---|
| 1 |
323-12 |
SCREW-HH Price: $1.14 |
| 1 |
72050412 |
BOLT-RD HD SQ NK Price: Call Us |
| 2 |
134647 |
SUB= 140119 Price: Call Us |
| 2 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 3 |
155925 |
PAN-SEAT Price: Call Us |
| 3 |
83-1050 |
SPACER Price: $3.26 |
| 4 |
108-6539 |
MANIFOLD-EXHAUST This part replaces 83-1080. Price: $249.13 |
| 4 |
73800500 |
NUT Price: Call Us |
| 5 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 6 |
145006 |
CLIP.PUSH-IN.HING Price: Call Us |
| 6 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 7 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
139-6524 |
ENGINE-BRIGGS STRATTON,VANGUARD This part replaces 107-9525. Price: $2,957.43 |
| 8 |
74760616 |
BOLT Price: Call Us |
| 9 |
140551 |
BRACKET PVT SEAT Price: Call Us |
| 9 |
98-0616 |
MUFFLER Price: $136.88 |
| 10 |
112-0220 |
GRILLE-MUFFLER This part replaces 83-1400-03. Price: $18.94 |
| 11 |
19133210 |
WASHER Price: Call Us |
| 12 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 12 |
73800600 |
NUT Price: Call Us |
| 13 |
74780814 |
BOLT Price: Call Us |
| 13 |
83-1630-03 |
BRACKET-SUPPORT, MUFFLER Price: $129.03 |
| 14 |
10040800 |
LOCKWASHER Price: Call Us |
| 14 |
322-8 |
SCREW-HH Price: $1.26 |
| 15 |
19171912 |
WASHER Price: Call Us |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 17 |
121246X |
BRKT SWITCH Price: Call Us |
| 17 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 18 |
123976X |
SUB= 73900400 Price: Call Us |
| 18 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 19 |
121248X |
BUSHING Price: Call Us |
| 19 |
83-1060-0P |
PUMP MOUNT - MACH. *B This part replaces 83-1060-03. Price: $249.55 |
| 20 |
121250X |
SPRING Price: Call Us |
| 20 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 21 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120-03. Price: $114.20 |
| 22 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 23 |
324-7 |
SCREW-HH Price: $1.79 |
| 24 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
93-8069 |
DECAL-SURFACE, HOT Price: $10.04 |
| 27 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 30 |
43-2830 |
NUT-HEX Price: $0.39 |
| 31 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 32 |
33113-016 |
SCREW-HH Price: $0.34 |
| 33 |
2412-81 |
CLAMP-R Price: $3.39 |
