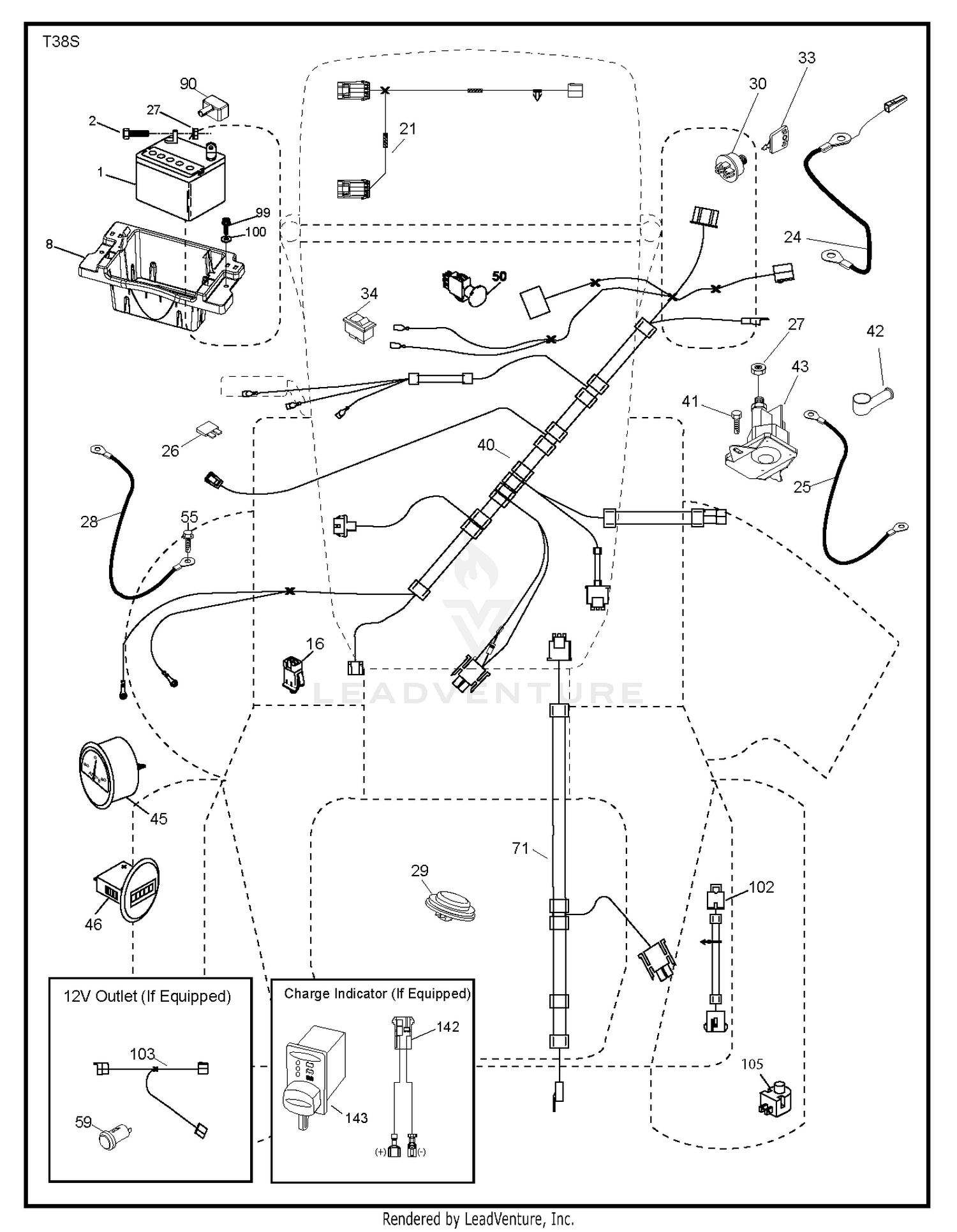

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 8 |
587205101 |
TRAY.BATTERY BOX.FRONT Price: $14.99 |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
585436401 |
HARNESS LIGHT ASSY TRACTOR, Price: $22.99 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 Price: $7.99 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532416588 |
CABLE.GROUND.21"BLK.8GA.90T Price: $11.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
501133101 |
HARNESS.IGN.DSH.W112V.WPORTWIR Price: $59.99 |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 582042801. Price: $22.99 |
| 45 |
529910801 |
AMMETER This part replaces 587553903. Price: $27.99 |
| 46 |
529910701 |
HOUR METER This part replaces 587554003. Price: $69.99 |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK Price: $24.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 103 |
532421747 |
HARNESS.PIGTAIL.12V.OUTLET. Price: $12.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 142 |
583593501 |
CTEK CHARGE PORT W/HARNESS This part replaces 583857801. Price: $27.99 |
| 143 |
583593501 |
CTEK CHARGE PORT W/HARNESS This part replaces 532448059. Price: $27.99 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
