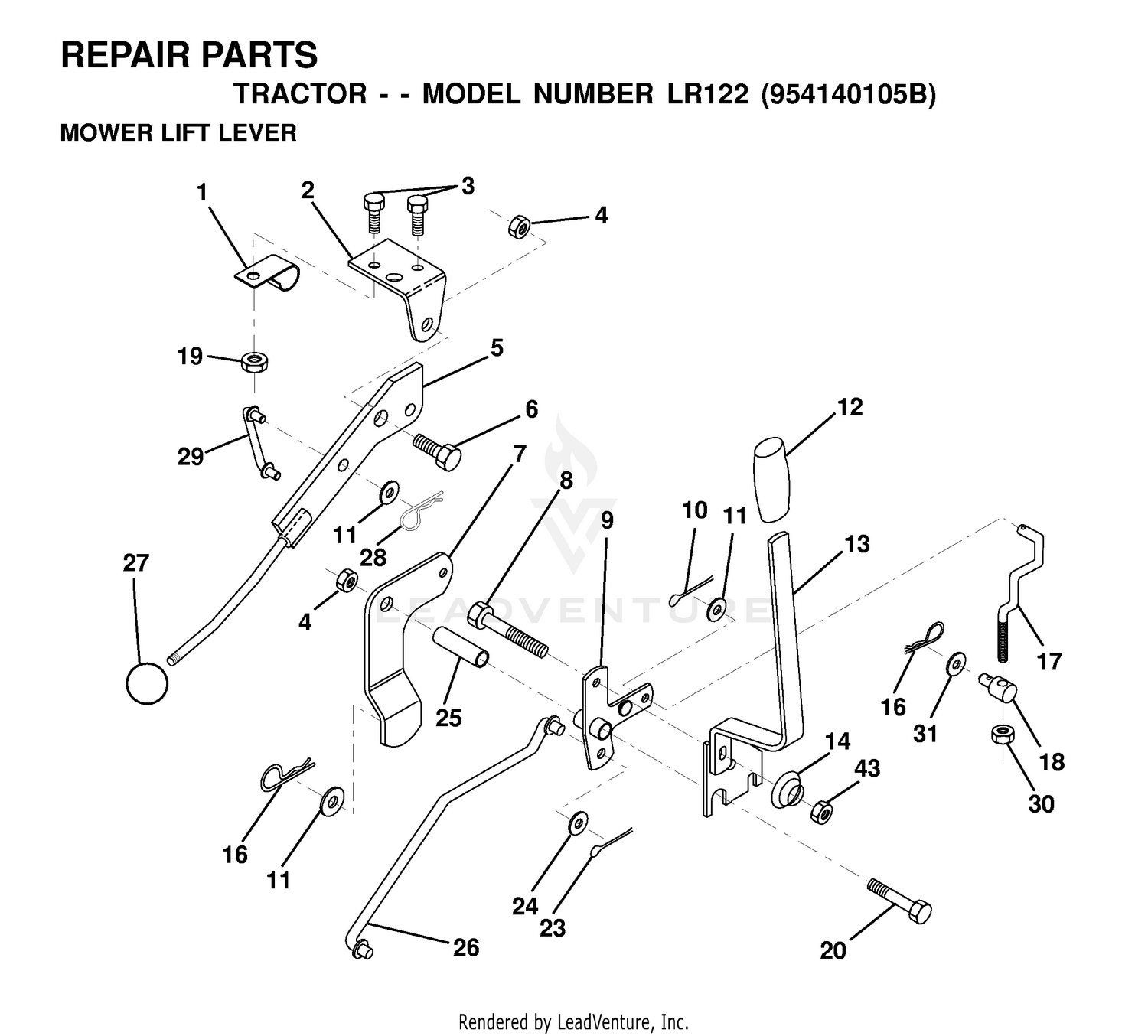

| Ref | Part Number | Description |
|---|
| 1 |
127-3011 |
STUD Price: $8.87 |
| 1 |
532126470 |
CLIP,INSULATOR Price: $3.99 |
| 2 |
127-3001 |
GENERATOR Price: $1,526.12 |
| 2 |
532122018 |
BRKT CLUTCH Price: $2.38 |
| 3 |
127-3190 |
NUT Price: $4.86 |
| 3 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 4 |
127-2951 |
ROTOR ASM Price: $326.08 |
| 4 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 5 |
127-2983 |
BEARING-BALL Price: $23.48 |
| 5 |
532145187 |
CLUTCH LEVER Price: $5.69 |
| 6 |
127-2962 |
COVER Price: Call Us |
| 6 |
532106451 |
BOLT, SHOULDER LT Price: $2.99 |
| 7 |
127-2952 |
FRAME ASM Price: Call Us |
| 7 |
532135371 |
ASSEMBLY MOWER CLUTCH ARM Price: $7.93 |
| 8 |
127-2958 |
BEARING-BALL Price: $25.78 |
| 8 |
874760636 |
BOLT Price: $4.99 |
| 9 |
127-2959 |
PLATE-RETAINER Price: Call Us |
| 9 |
532121930 |
BELLCRANK,LIFT Price: $11.99 |
| 10 |
127-2960 |
SCREW Price: Call Us |
| 10 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 11 |
127-2961 |
STUD Price: Call Us |
| 11 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 12 |
127-2953 |
FRAME ASM Price: $57.52 |
| 13 |
127-2954 |
PULLEY Price: $69.59 |
| 13 |
532139352 |
LIFT HANDLE ASSY Price: $15.88 |
| 14 |
127-2955 |
NUT Price: Call Us |
| 14 |
532123496 |
SPRING COMPRESSIO Price: $2.99 |
| 15 |
127-2957 |
COLLAR Price: $16.32 |
| 16 |
127-3002 |
REGULATOR ASM Price: $643.65 |
| 16 |
532004921 |
COTTER PIN This part replaces 532124961. Price: $4.99 |
| 17 |
127-2963 |
HOLDER Price: $253.39 |
| 17 |
532127359 |
LINK LIFT FRT Price: $19.99 |
| 18 |
127-2993 |
HOLDER Price: $95.21 |
| 18 |
532142028 |
TRUNNION.ADJUSTABLE.3/8-16 Price: $3.99 |
| 19 |
127-2956 |
BRUSH ASM Price: $8.83 |
| 19 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 20 |
127-2964 |
SPRING Price: $3.16 |
| 20 |
874760644 |
BOLT Price: $3.99 |
| 21 |
127-2965 |
SCREW Price: Call Us |
| 22 |
127-2966 |
SCREW Price: Call Us |
| 23 |
127-2999 |
COVER Price: $22.03 |
| 23 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 24 |
127-2967 |
BOLT Price: $9.43 |
| 24 |
596040101 |
Washers This part replaces 819171612. Price: $2.99 |
| 25 |
127-2968 |
SCREW Price: $4.72 |
| 25 |
532121933 |
TUBE SPACER Price: $4.28 |
| 26 |
127-2969 |
BOLT Price: Call Us |
| 26 |
532141470 |
LIFT ROD Price: $14.65 |
| 27 |
127-2970 |
BUSHING-INSULATION Price: Call Us |
| 27 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 28 |
127-2971 |
NUT Price: Call Us |
| 28 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 29 |
127-2972 |
WASHER Price: Call Us |
| 29 |
532131655 |
LINK MOWER CLUTCH Price: $4.99 |
| 30 |
125-7230 |
NUT Price: $2.81 |
| 30 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 31 |
125-6947 |
SPACER Price: $21.65 |
| 31 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 32 |
127-2977 |
ADJUSTER Price: $113.82 |
| 33 |
125-7134 |
BOLT Price: $25.74 |
| 43 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
