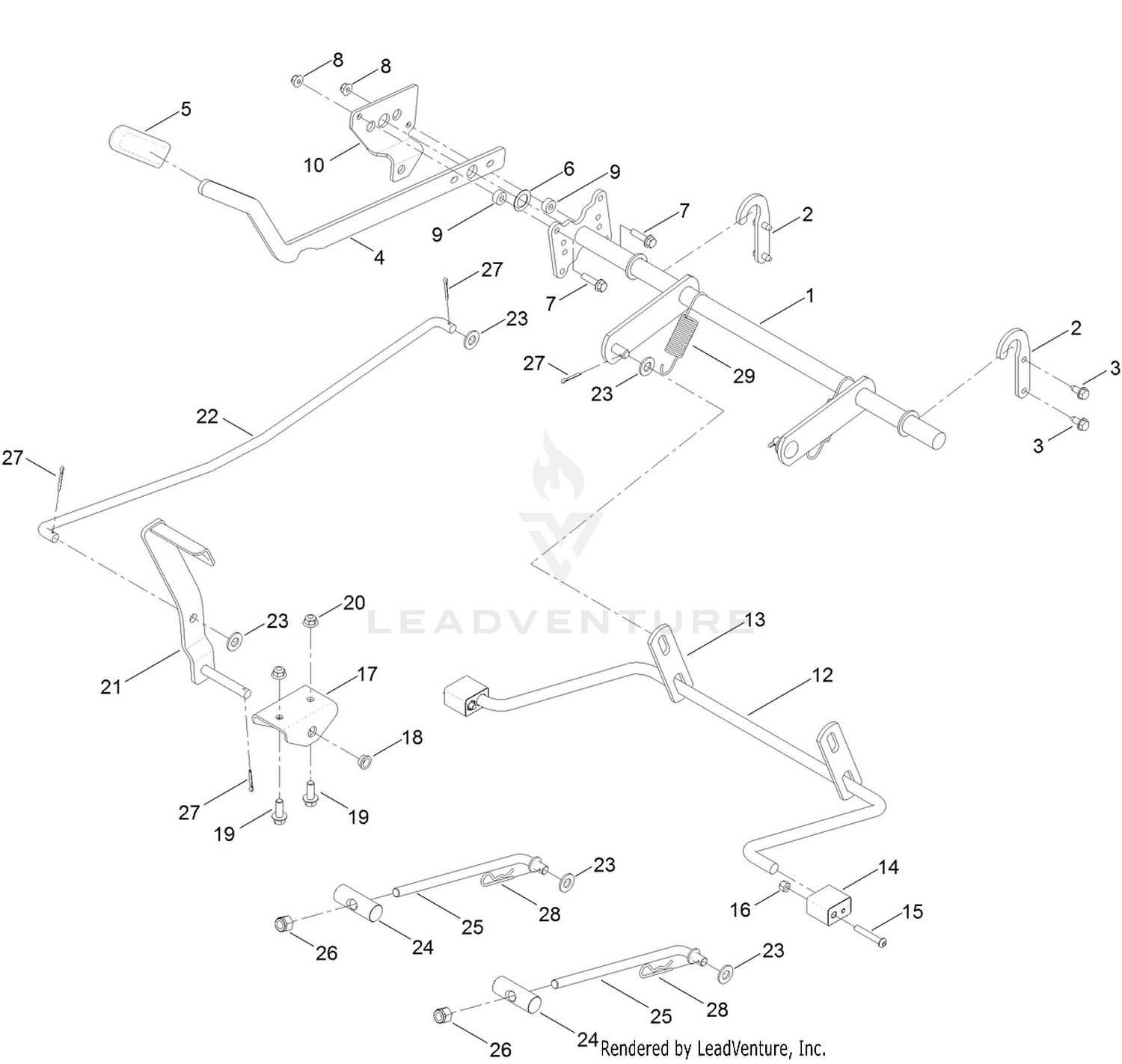

Deck Lift Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 133-7010-03 | DECK LIFT ASM Price: $42.74 |
| 2 | 133-1187 | BRACKET-LIFT Price: $15.51 |
| 3 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 4 | 119-3427-03 | LEVER-LIFT Price: $15.92 |
| 5 | 1-633268 | GRIP-LEVER Price: $13.99 |
| 6 | 3-6498 | WASHER-THRUST Price: $4.58 |
| 7 | 3234-36 | SCREW-HHF Price: $0.75 |
| 8 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 9 | 121-1759 | SPACER Price: $1.59 |
| 10 | 131-3933 | PLATE-FOOTLIFT Price: $11.07 |
| 12 | 138-7239 | ARM-LIFT, REAR (WIDE) This part replaces 119-3347. Price: $23.86 |
| 13 | 138-7235 | LINK-LIFT This part replaces 108-7840. Price: $4.88 |
| 14 | 108-7845 | BLOCK-PIVOT Price: $11.42 |
| 15 | 120-5499 | SCREW-HSBH Price: $1.27 |
| 16 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 17 | 120-2294-03 | BRACKET-FOOTLIFT Price: $8.84 |
| 18 | 256-156 | BUSHING-FLANGE Price: $12.99 |
| 19 | 3234-42 | SCREW-HHF Price: $1.10 |
| 20 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 21 | 132-6939-03 | PEDAL ASM Price: $19.01 |
| 22 | 120-2242 | ROD-FOOTLIFT Price: $15.25 |
| 23 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 24 | 119-8810 | PIN-PIVOT Price: $11.11 |
| 25 | 133-4319 | ROD-MOUNT, DECK Price: $10.35 |
| 26 | 3296-19 | NUT-HEX Price: $0.65 |
| 27 | 3272-11 | PIN-COTTER Price: $0.99 |
| 28 | 1-806005 | PIN-COTTER Price: $2.39 |
