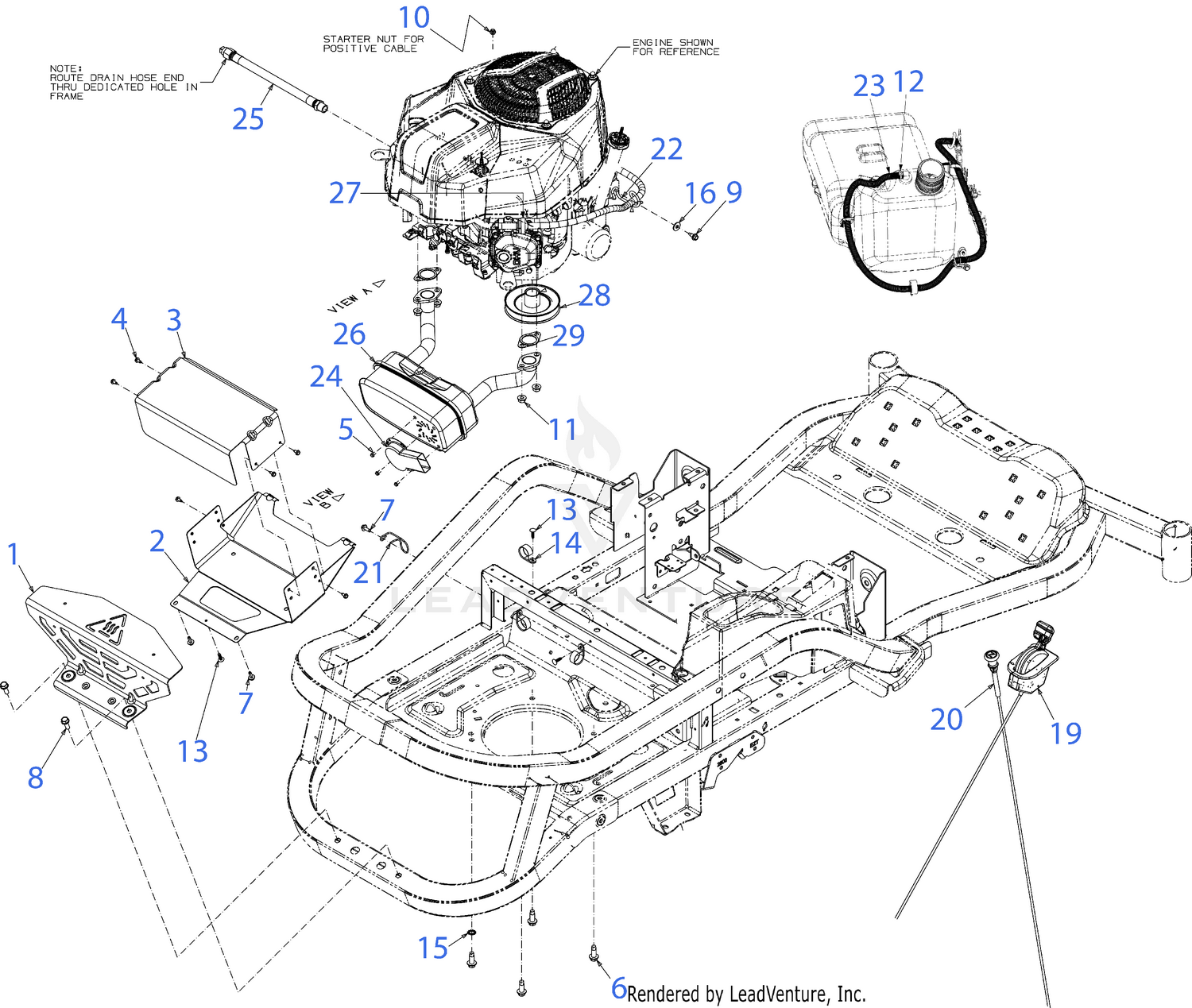

| Ref | Part Number | Description |
|---|
| 1 |
603P06299A |
MUFFLER COVER (REAR) Price: $86.26 |
| 2 |
703-16041A |
MUFFLER SHIELD (LOWER) Price: $74.49 |
| 3 |
703-16042A |
MUFFLER SHIELD (TOP) Price: $42.34 |
| 4 |
910-0224 |
HEX SCREW AB-TAP #10 x .50 Price: $3.19 |
| 5 |
710-0227 |
HEX SCREW WASHER HD #8-18 x 0.500 Price: $3.90 |
| 6 |
710-04683C |
SCREW 3/8-16 x 1 Price: $5.67 |
| 7 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 8 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 9 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 10 |
712-0691 |
HEX NUT Price: $6.13 |
| 11 |
712-3086 |
HEX FLANGE NUT M8X Price: $3.86 |
| 12 |
726-0205 |
HOSE CLAMP 1/20 Price: $3.71 |
| 13 |
726-04099A |
RATCHET CLIP (.188 x .85) Price: $3.16 |
| 14 |
726-04119 |
DRAIN HOSE CLAMP Price: $2.83 |
| 15 |
736-0148 |
LOCK WASHER 3/8 Price: $3.19 |
| 16 |
736-0173 |
FLAT WASHER .28 ID x .74 OD x .063 Price: $3.76 |
| 19 |
746P06893A |
THROTTLE CABLE 52.5LG This part replaces 746P06893. Price: $33.43 |
| 20 |
746P06931 |
CHOKE CABLE 51.5LG Price: $25.16 |
| 21 |
747-10050 |
HOSE GUIDE Price: $4.08 |
| 22 |
747-10630 |
HOSE GUIDE Price: $3.25 |
| 23 |
751-22813-57 |
FUEL HOSE 1/4-57" This part replaces 751-10349-45. Price: $65.25 |
| 24 |
751-11053B |
EXHAUST DELECTOR (LONG) Price: $4.64 |
| 25 |
751-15324B |
OIL DRAIN HOSE (11.37" 3/8x1/4 NPT) This part replaces 751-15324A. Price: $38.80 |
| 26 |
751P15807C |
MUFFLER 679cc This part replaces 751P15807A. Price: $115.25 |
| 27 |
490-202-M002 |
Genuine Factory Parts FUEL FILTER Price: $10.59 |
| 27 |
951-3013 |
FUEL FILTER Price: $7.96 |
| 28 |
756-04494C |
TRANSMISSION DRIVE PULLEY This part replaces 756-04494B. Price: $30.97 |
| 29 |
921-04936 |
EXHAUST GASKET Price: $7.02 |
