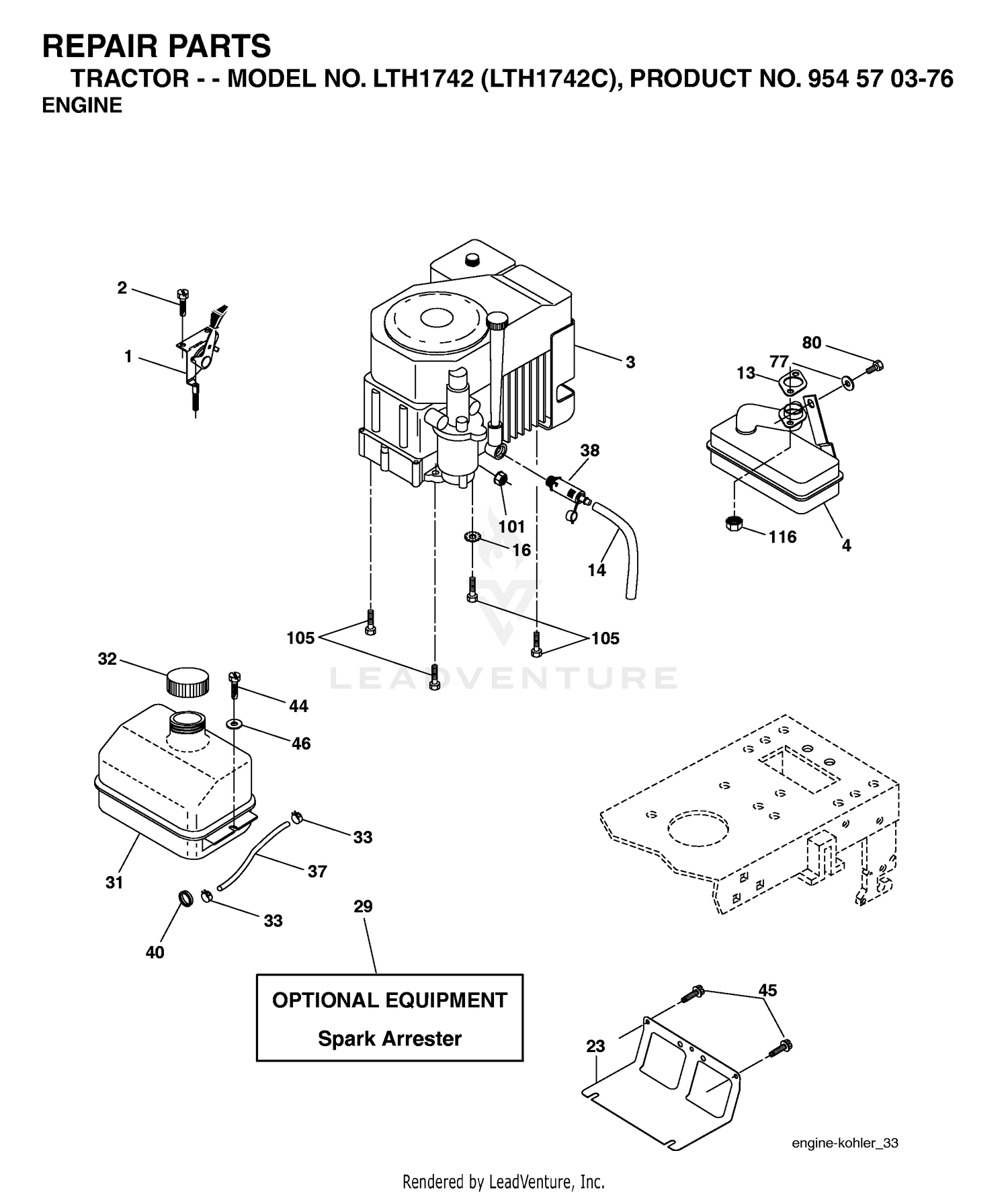

| Ref | Part Number | Description |
|---|
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT Price: $27.99 |
| 1 |
X-22-9 |
Washer Price: Call Us |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 2 |
X-25-79 |
Washer Price: Call Us |
| 3 |
X-50-37 |
Screw-R.H.M. Price: Call Us |
| 4 |
X-50-57 |
Screw-R.H.M. Price: Call Us |
| 5 |
X-132-5 |
Screw Price: Call Us |
| 6 |
X-167-2 |
Screw-F.H. Price: Call Us |
| 7 |
X-276-7 |
Nut-Wing Price: Call Us |
| 8 |
277069 |
Gasket Price: Call Us |
| 9 |
277070 |
Elbow Air Cleaner Price: Call Us |
| 10 |
277071 |
Base, Air Cleaner Price: Call Us |
| 11 |
277093 |
Gasket-Air Cleaner Price: Call Us |
| 12 |
277116 |
Brace elbow Price: Call Us |
| 13 |
277138 |
Element, Air Cleaner Price: Call Us |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 77 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 80 |
874760508 |
Bolt, Hex Head, Fin. 5/16-18 x 1/2 Price: $3.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
