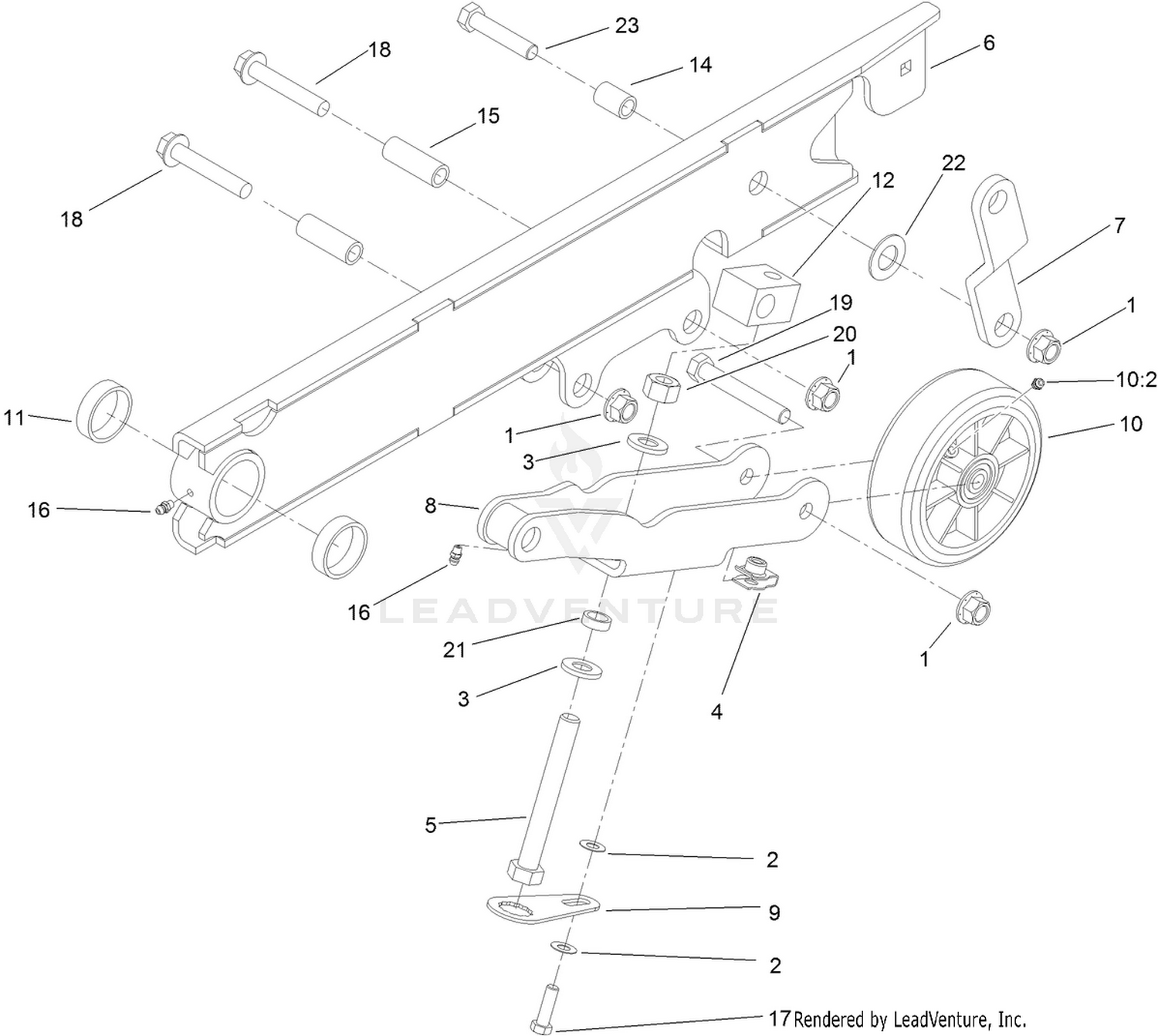

LH Trailing Arm Assembly No. 117-8470
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-5107 | NUT-LOCK Price: $1.77 |
| 2 | 108-1438 | WASHER-HARDENED Price: $1.76 |
| 3 | 99-7667 | WASHER-FLAT Price: $4.80 |
| 4 | 105-4886 | NUT-TINNERMAN Price: $2.37 |
| 5 | 112-4874 | SCREW-HH, TAP Price: $8.70 |
| 6 | 120-5905-03 | ARM-TRAILING Price: $265.67 |
| 7 | 117-8465-03 | LINK-LIFT Price: $29.79 |
| 8 | 119-6301-03 | ARM-GAUGE, WHEEL Price: $153.51 |
| 9 | 117-8484 | TAB-LOCKING Price: $36.51 |
| 10 | 117-8544 | WHEEL-CASTER Price: $120.71 |
| 11 | 119-2985 | BUSHING Price: $7.60 |
| 12 | 119-6184 | BLOCK-PIVOT Price: $36.42 |
| 14 | 119-6191 | TUBE-PIVOT Price: $4.68 |
| 15 | 119-6192 | TUBE-PIVOT Price: $6.50 |
| 16 | 302-5 | FITTING-GREASE Price: $0.59 |
| 17 | 323-6 | SCREW-HH Price: $0.66 |
| 18 | 3234-40 | SCREW-HF Price: $3.38 |
| 19 | 325-14 | SCREW-HH Price: $2.64 |
| 20 | 3217-11 | NUT-HEX Price: $0.95 |
| 21 | 119-6253 | SPACER-LIMITER Price: $9.65 |
| 22 | 69-8930 | WASHER Price: $0.81 |
