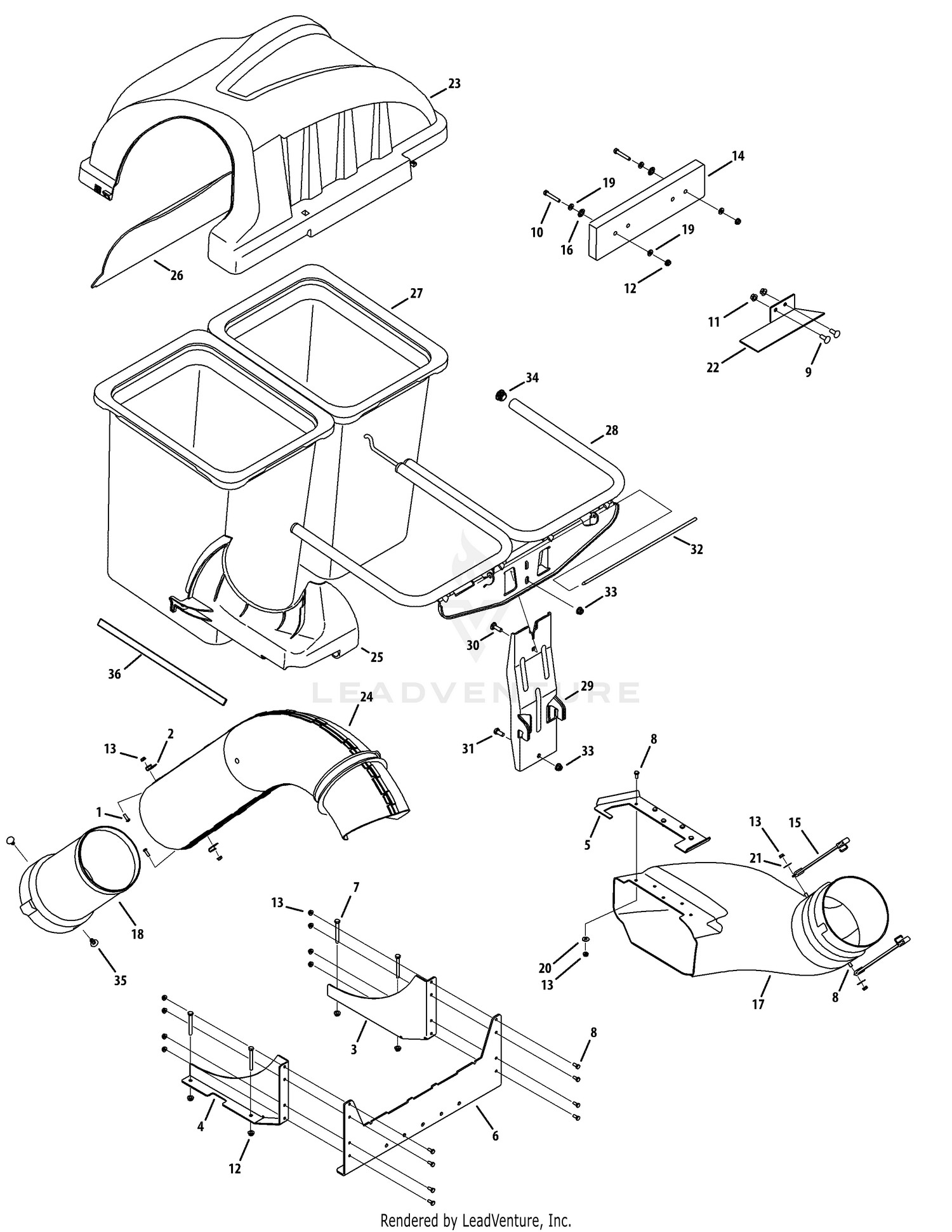

| Ref | Part Number | Description |
|---|
| 1 |
710-04064 |
Screw, 1/4-20 x .75 This part replaces 01009362. Price: $7.44 |
| 2 |
96606 |
Retainer Hook Bracket Price: $6.71 |
| 5 |
703-05245A-0637 |
Boot Mount Bracket Price: $57.00 |
| 6 |
703-07670-0637 |
Catcher Mounting Bracket Price: $113.74 |
| 7 |
710-0176 |
Hex Head Screw, 5/16-18 x 2.75 Price: $3.89 |
| 8 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 9 |
710-3097 |
Carriage Bolt, 3/8-16 x 1.00 Price: $5.79 |
| 10 |
710-3103 |
Hex Head Screw, 5/16-18 x 2.00 Price: $4.02 |
| 11 |
912-0431 |
Flange Lock Nut, 3/8-16 Price: $4.29 |
| 12 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 13 |
912-3027 |
Flange Lock Nut, 1/4-20 Price: $3.85 |
| 14 |
02002426 |
Weight Bar Price: $147.73 |
| 15 |
723-0476 |
Chute Strap Price: $30.86 |
| 16 |
726-04040 |
Push Nut, 5/16 Price: $3.28 |
| 17 |
731-04347A |
Discharge Chute Elbow Price: $182.80 |
| 18 |
731-06611 |
Chute Adapter Price: $41.17 |
| 19 |
736-0185 |
Flat Washer, .375 x .738 x .063 This part replaces 936-0185. Price: $3.43 |
| 20 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 21 |
736-3092 |
Flat Washer, .265 X 1.0 X .030 Price: $3.68 |
| 22 |
783-05183-0637 |
Baffle Price: $33.53 |
| 23 |
931-04292 |
Twin Bagger Cover Assembly Price: $129.14 |
| 24 |
931-04295B |
UPPER CHUTE ASSEMBLY This part replaces 931-04295A. Price: $128.08 |
| 25 |
731-06497 |
Upper Chute Support Price: $31.91 |
| 26 |
731-06504 |
Bagger Cover Screen Price: $15.49 |
| 27 |
964-05104 |
GRASSBAG ASSEMBLY W/ HARD BOTTOM (STD) This part replaces 964-04090. Price: $83.90 |
| 28 |
683-04461B-0637 |
DOUBLE BAGGER SUPPORT (POWDER BLACK) This part replaces 683-04461-0637. Price: $182.57 |
| 29 |
683-04519B-0637 |
Vertical Support Bracket This part replaces 683-04519-0637. Price: $125.78 |
| 30 |
710-0276 |
Carriage Screw, 5/16-18 x 1.00" Price: $3.68 |
| 31 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 32 |
711-04988 |
Cover Hinge Pin Price: $11.08 |
| 33 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 34 |
735-0246A |
End Plug Price: $5.01 |
| 35 |
726-3046 |
Ratchet Clip Price: $3.71 |
