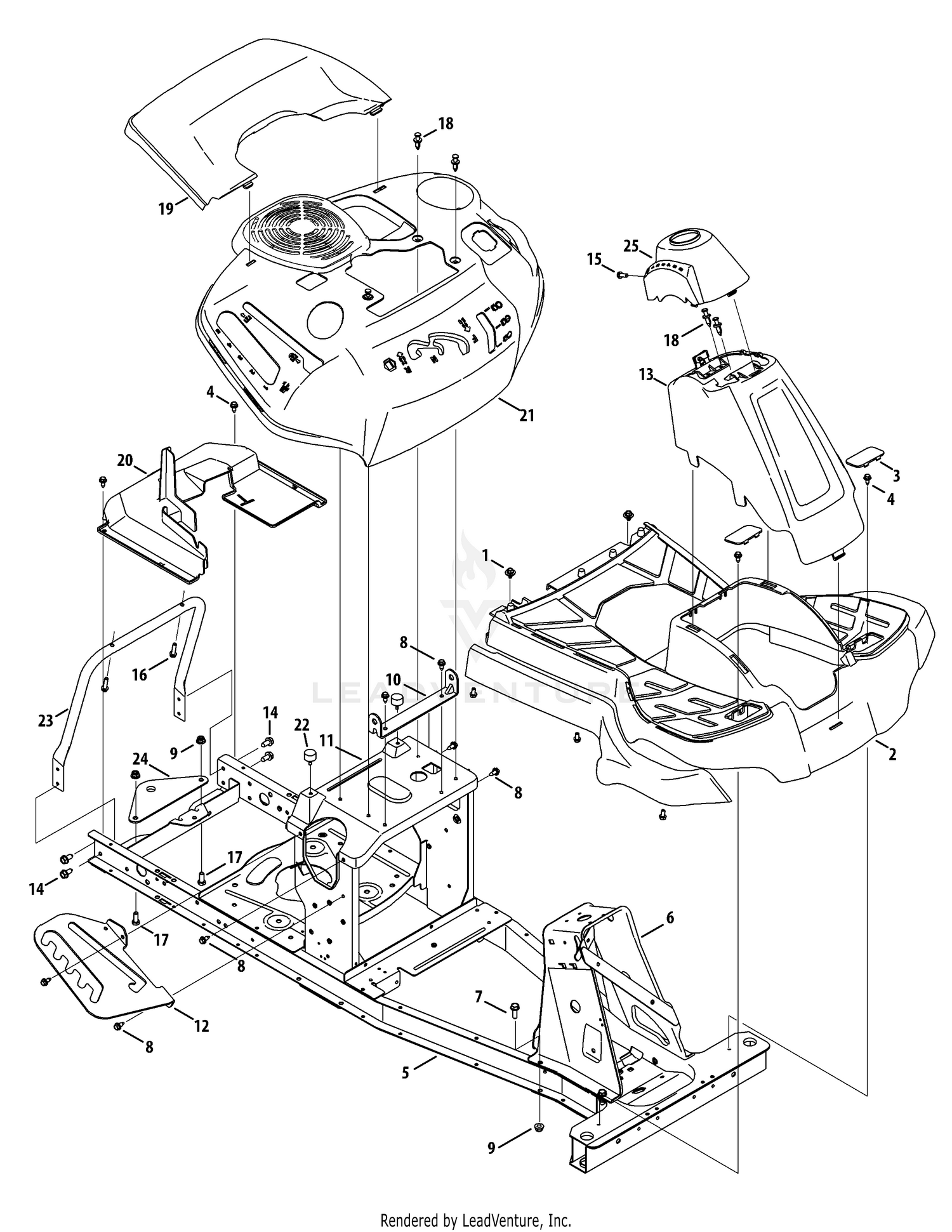

| Ref | Part Number | Description |
|---|
| 1 |
710-05073 |
Screw, 1/4-20 x .500 Price: $3.52 |
| 2 |
931-09591 |
RUNNING BOARD Not Available Price: |
| 3 |
731-08753B |
RUNNING BOARD PLUG This part replaces 731-08753A. Price: $3.75 |
| 4 |
738-04184A |
Shoulder Screw, .368 X.113: 1/4-20 Price: $5.99 |
| 5 |
683-05015-0637 |
FRAME ASSEMBLY (POWDER BLACK) Not Available Price: |
| 6 |
683-05019-0637 |
COLUMN ASSEMBLY (POWDER BLACK) Not Available Price: |
| 7 |
710-06194 |
Hex Washer Screw, 5/16-18 x .75 Price: $3.70 |
| 8 |
710-1652 |
Tap Screw, 1/4-20, .625 Price: $3.86 |
| 9 |
712-0429 |
Lock Nut, 5/16-18 This part replaces 912-0429. Price: $3.56 |
| 10 |
783-13996-0637 |
SEAT PIVOT BRACKET (POWDER BLACK) This part replaces 783-07168-0637. Price: $5.59 |
| 11 |
783-13995-0637 |
SEAT PAN (POWDER BLACK) This part replaces 783-08197. Price: $36.55 |
| 12 |
783-08260-0637 |
Deck Lift Index Bracket Price: $26.08 |
| 13 |
631-05038 |
Column Cover Price: $29.83 |
| 14 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 15 |
710-0924 |
Machine Screw, 1/4-20, 0.750 Price: $4.02 |
| 16 |
710-1241 |
Hex Screw, 1/4-15, 1.000 Price: $5.77 |
| 17 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 18 |
728-0199 |
Rivet, .3125 Price: $4.08 |
| 19 |
731-08620A |
Rear Cover Price: $29.37 |
| 20 |
753-08259 |
SERVICE KIT-731-09185 Not Available This part replaces 731-09185. Price: |
| 21 |
931-09465A |
FENDER This part replaces 931-09465. Price: $80.06 |
| 22 |
735-05006 |
Bumper, .62 Dia. x .50 Price: $3.70 |
| 23 |
749-04932-0637 |
Rear Cover Support Tube Price: $29.83 |
| 24 |
783-07208A-0637 |
HITCH PLATE This part replaces 783-07208-0637. Price: $7.44 |
