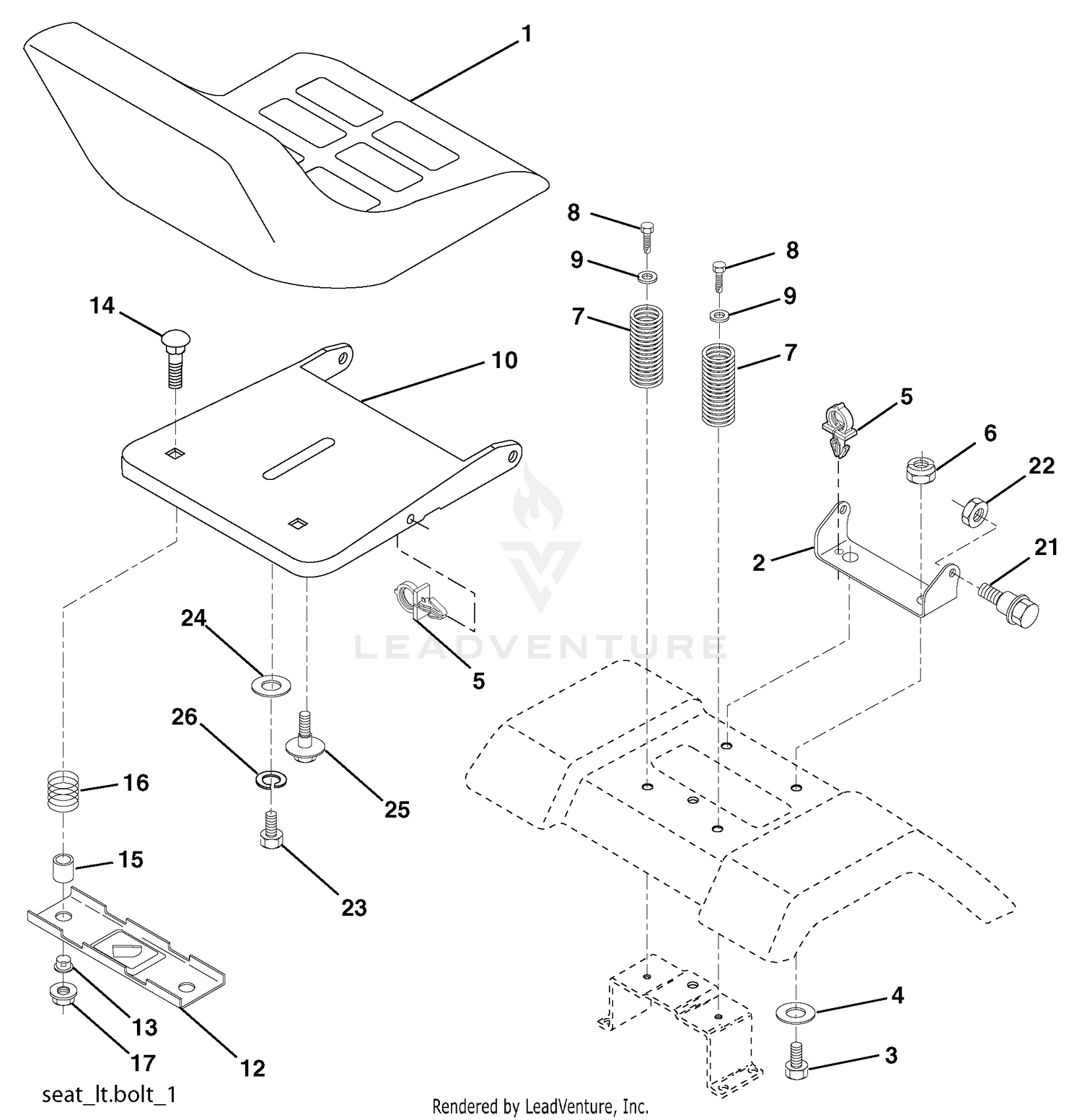

| Ref | Part Number | Description |
|---|
| 1 |
401042 |
Seat Price: Call Us |
| 2 |
140551 |
Bracket Seat Pivot Price: Call Us |
| 3 |
59-8040 |
SPRING Price: $7.29 |
| 3 |
71110616 |
Bolt Hex 3/8 - 16 x 1 Price: Call Us |
| 4 |
19131610 |
Washer 13/32 x 1 x10 Ga. Price: Call Us |
| 4 |
59-8080 |
WASHER Price: $18.05 |
| 5 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 5 |
59-8170 |
WASHER Price: $8.09 |
| 6 |
63-4820 |
BLOCK-DETENT Price: $275.22 |
| 6 |
73800600 |
Nut Lock Hex w/Ins 3/8 - 16 Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 7 |
59-8070 |
LOCKWASHER Price: $0.49 |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Price: Call Us |
| 8 |
63-4830 |
CAPSCREW Price: $0.85 |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga. Price: Call Us |
| 9 |
59-8060 |
PLUG Price: $22.35 |
| 10 |
195530 |
Pan Pnt Seat (Blk) Price: Call Us |
| 10 |
59-8050 |
SPRING Price: $15.65 |
| 11 |
59-8150 |
PAWL Price: $36.37 |
| 12 |
174648 |
Bracket Pnt Mounting Switch Price: Call Us |
| 12 |
63-4840 |
SCREW-DETENT Price: $172.21 |
| 13 |
121248X |
Bushing Snap Blk Nyl Price: Call Us |
| 13 |
59-8100 |
WASHER Price: $8.63 |
| 14 |
59-8180 |
WASHER Price: $33.37 |
| 14 |
72050412 |
Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2 Price: Call Us |
| 15 |
134300 |
Spacer Split .28 x .96 Price: Call Us |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 16 |
59-8190 |
WIPER Price: $10.41 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Price: Call Us |
| 17 |
63-4780 |
VALVE-RELIEF Price: $485.19 |
| 18 |
63-4850 |
PLUNGER Price: $88.33 |
| 19 |
63-4510 |
SPRING Price: $38.85 |
| 20 |
63-4860 |
CIRCLIP Price: $28.63 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 unc-2A Price: Call Us |
| 21 |
59-8230 |
PLUG Price: $47.93 |
| 22 |
73800500 |
Nut Lock Hex w/Ins 5/16 - 18 Price: Call Us |
| 22 |
AU114313A1 |
O-RING This part replaces 59-7780. Price: $2.40 |
| 23 |
302-66 |
FITTING-GREASE Price: $5.13 |
| 23 |
71110814 |
Bolt Hex Price: Call Us |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Ga. Price: Call Us |
| 24 |
59-8140 |
RING Price: $1.44 |
| 25 |
127018X |
Bolt Shoulder 5/16-18 x .62 Price: Call Us |
| 25 |
59-8160 |
PLUG Price: $18.66 |
| 26 |
59-8120 |
RING Price: $3.69 |
| 27 |
66-5420 |
SLEEVE Price: $29.51 |
| 28 |
60-4550 |
SWITCH-MICRO Price: $318.29 |
| 29 |
3256-12 |
WASHER-FLAT This part replaces 3256-13. Price: $0.99 |
| 30 |
63-4440 |
O-RING Price: $13.18 |
| 31 |
3253-19 |
WASHER-LOCK Price: $0.25 |
| 32 |
66-5430 |
SCREW Price: $10.07 |
| 33 |
66-5440 |
NUT-HEX Price: $1.07 |
| 34 |
59-7860 |
WASHER Price: $4.31 |
