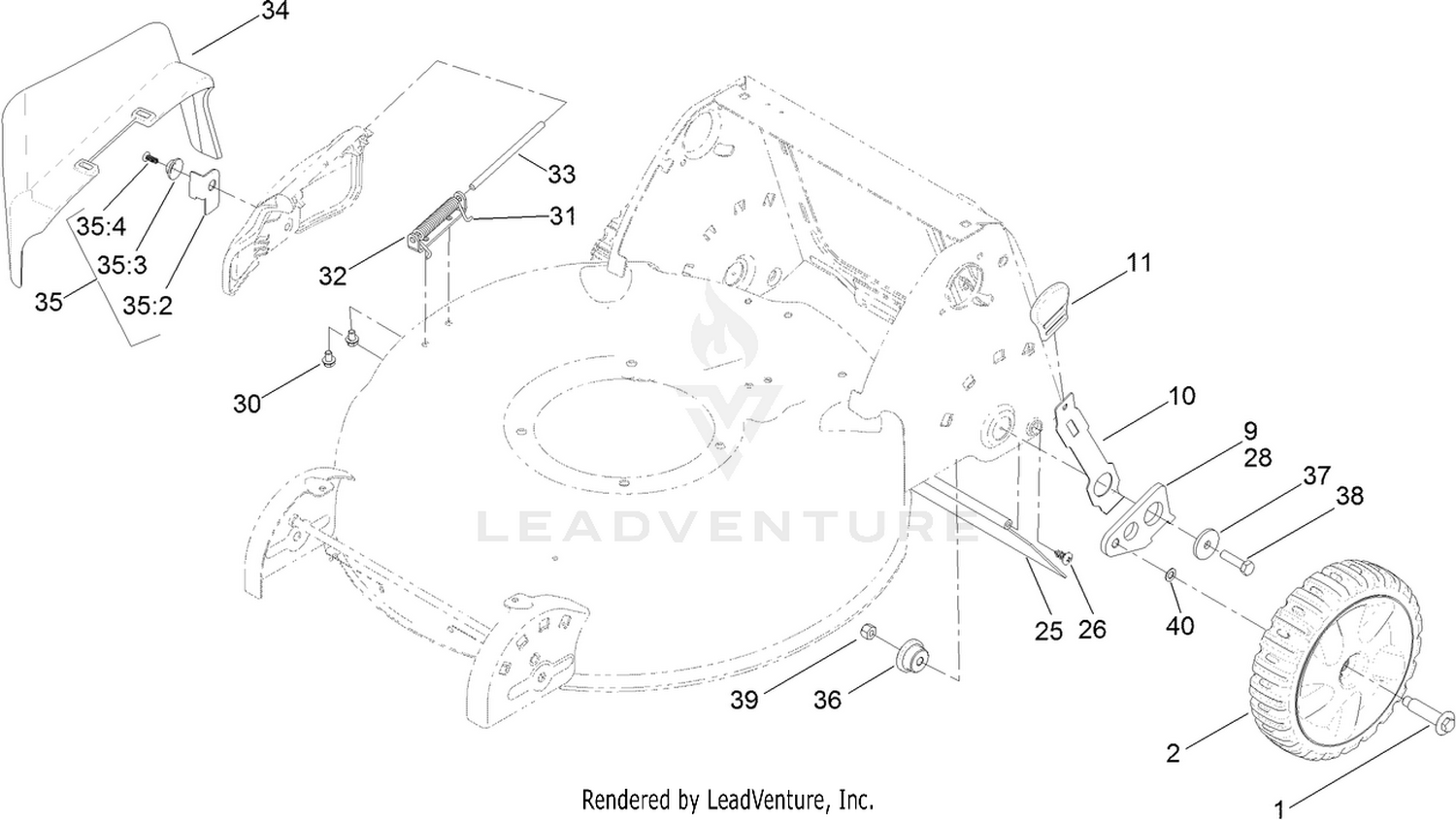

| Ref | Part Number | Description |
|---|
| 1 |
614650 |
BOLT-SHOULDER Price: $3.28 |
| 9 |
108-9344 |
ARM-REAR PIVOT, LH Price: $8.10 |
| 10 |
110-9445 |
ARM-SPRING, REAR Price: $7.85 |
| 11 |
110-0549 |
KNOB-HOC Price: $1.08 |
| 25 |
120-7010 |
SHIELD-TRAILING Price: $26.19 |
| 26 |
139-1692 |
SCREW-THD This part replaces 117-1092. Price: $0.32 |
| 28 |
108-9343 |
ARM-REAR PIVOT, RH Price: $8.10 |
| 30 |
137-4795 |
SCREW This part replaces 99-8445. Price: $0.29 |
| 31 |
99-5293 |
SPRING-TORSION Price: $9.99 |
| 32 |
112-6416 |
BRACKET-COVER Price: $1.88 |
| 33 |
136-8672 |
PIN-HINGE, DEFLECTOR This part replaces 99-5291. Price: $1.99 |
| 34 |
105-3028 |
CHUTE-DISCHARGE, SIDE Price: $8.74 |
| 35 |
106-8376 |
DISCHARGE DOOR ASM Price: $8.96 |
| 36 |
105-1818 |
BUSHING-MOUNT, HOC Price: $3.26 |
| 37 |
105-3048 |
WASHER-FLAT Price: $0.89 |
| 38 |
322-6 |
SCREW-HH Price: $0.45 |
| 39 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
