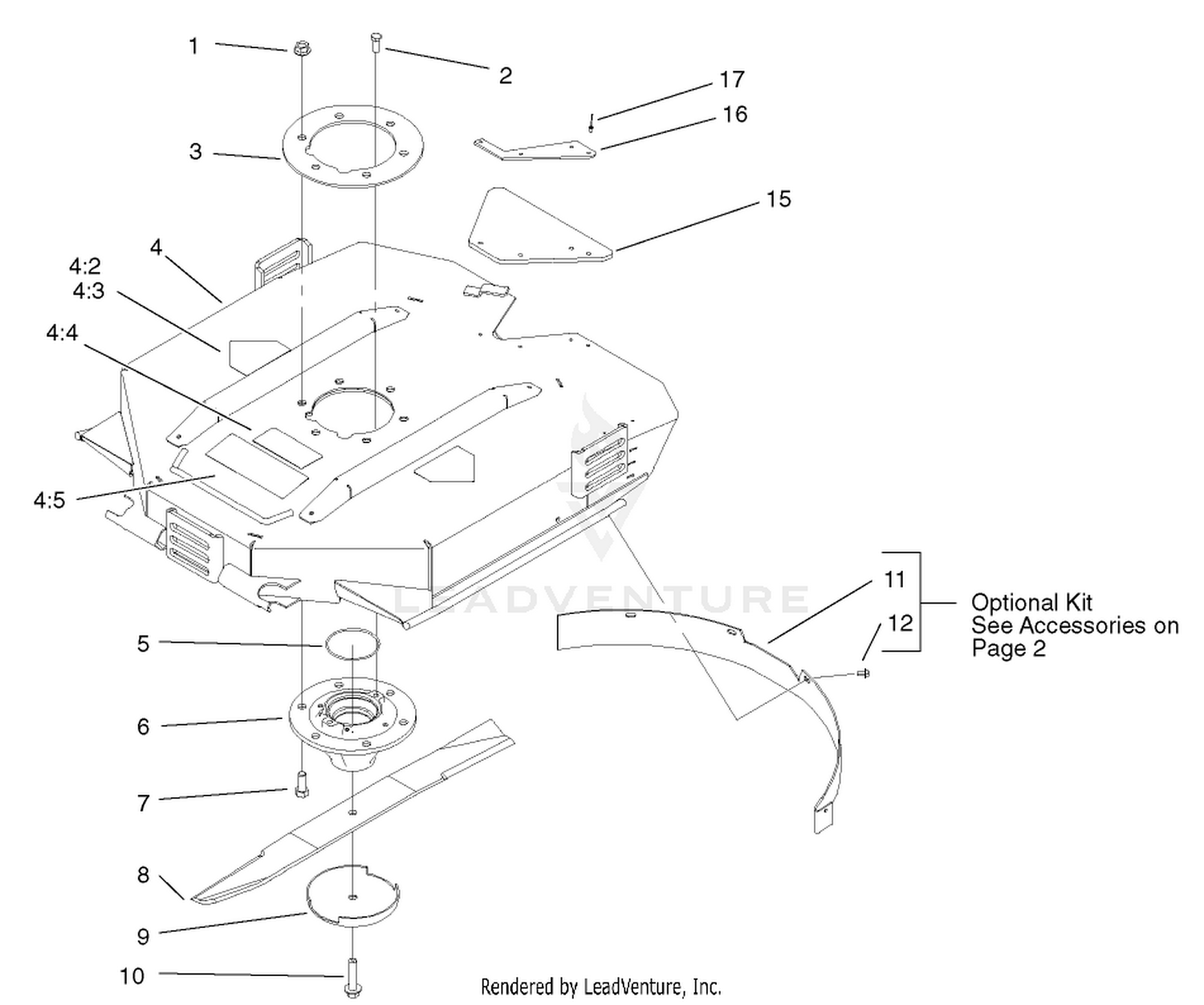

| Ref | Part Number | Description |
|---|
| 1 |
32128-49 |
NUT-HHF Price: $1.04 |
| 2 |
323-6 |
SCREW-HH Price: $0.66 |
| 3 |
104-1051-03 |
PLATE-SPINDLE Price: $59.54 |
| 4 |
127-6389 |
DECK CHAMBER SERVICE ASM This part replaces 105-9180. Price: $1,496.66 |
| 5 |
237-161 |
O-RING Price: $6.06 |
| 6 |
121-3666 |
SPINDLE ASM This part replaces 100-5700. Price: $391.32 |
| 7 |
325-5 |
SCREW-HH Price: $1.20 |
| 8 |
104-5183 |
BLADE-LIFT, HIGH This part replaces 105-4089. Price: $46.49 |
| 8 |
105-9810-03 |
BLADE-ANGLE SAIL This part replaces 100-5754. Price: $36.86 |
| 9 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 10 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 11 |
105-9227-01 |
BAFFLE-MULCHING Price: $72.84 |
| 12 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 15 |
105-9173 |
FLAP-RUBBER Price: $32.57 |
| 16 |
105-3954-03 |
PLATE-FLAP Price: $12.00 |
