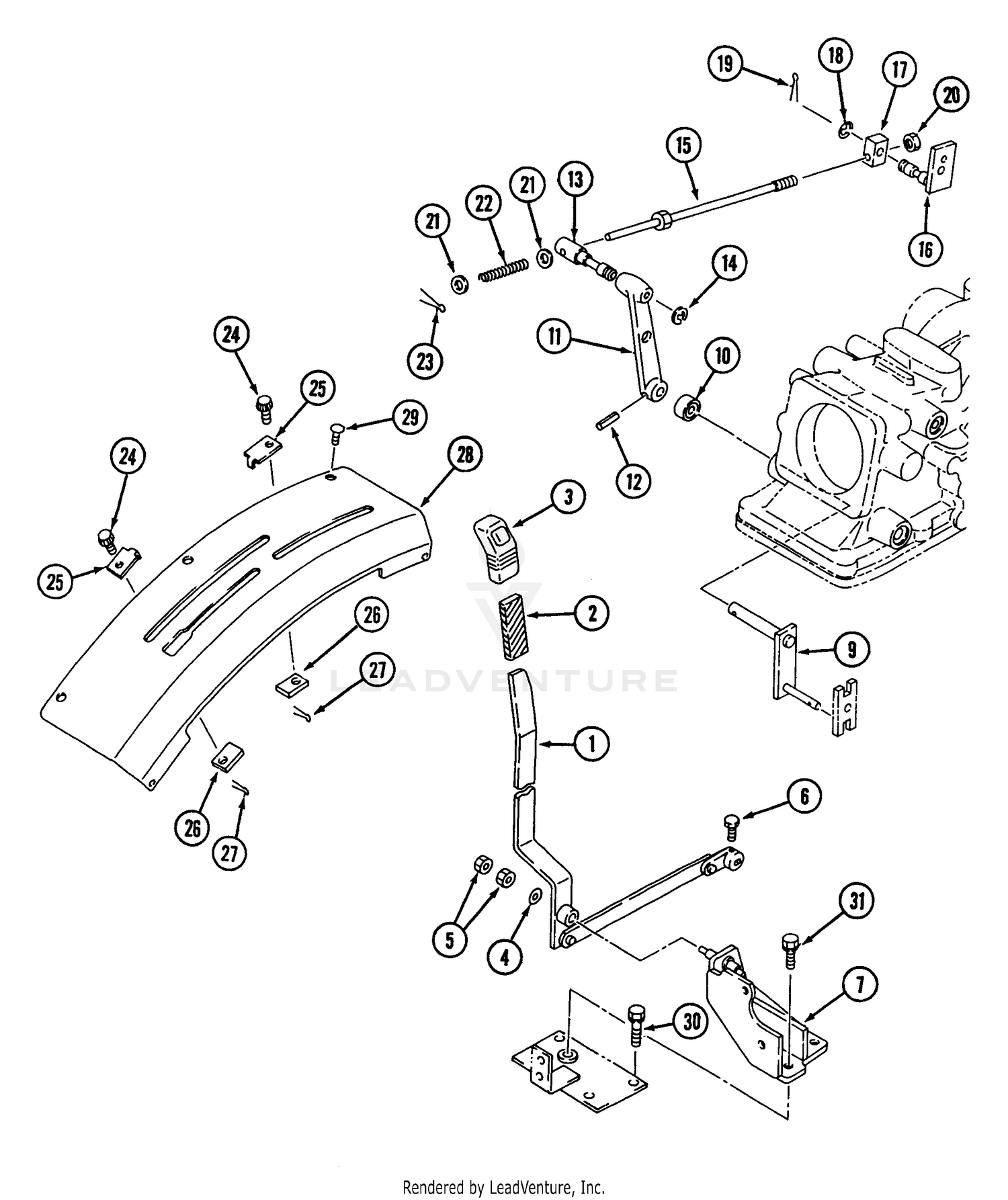

Hydraulic Lift (Part 4)
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MA-19652463AG0 | LEVER P/C ASSEMBLY Not Available Price: |
| 2 | MA-19632439000 | TUBE Not Available Price: |
| 3 | MA-10302444000 | GRIP Not Available Price: |
| 4 | MA-03500150822 | WASHER Not Available Price: |
| 5 | MA-A3010108002 | NUT Not Available Price: |
| 6 | MA-A0400106012 | BOLT Not Available Price: |
| 7 | MA-19652461AG0 | BRACKET-LEVER Not Available Price: |
| 9 | MA-10032413000 | SHIFTER-FE Not Available Price: |
| 10 | MA-08401012227 | OIL SEAL Not Available Price: |
| 11 | MA-10032409AG0 | ARM-FEEDBACK Not Available Price: |
| 12 | MA-05500005032 | SPRING PIN Not Available Price: |
| 13 | MA-10212428AG0 | PIN JOINT Not Available Price: |
| 14 | MA-07420100800 | RING, SNAP Not Available Price: |
| 15 | MA-10032408000 | LINK-FEEDBACK Not Available Price: |
| 16 | MA-10032406AG0 | PLATE Not Available Price: |
| 17 | MA-10032407000 | JOINT-PIN Not Available Price: |
| 18 | MA-03500130815 | WASHER Not Available Price: |
| 19 | MA-05200125015 | COTTER PIN Not Available This part replaces MA-05200125016. Price: |
| 20 | MA-A3010108002 | NUT Not Available Price: |
| 21 | MA-03500130815 | WASHER Not Available Price: |
| 22 | MA-10032412000 | SPRING Not Available Price: |
| 23 | 808766 | Flywheel Price: Call Us |
| 23 | MA-05200125015 | COTTER PIN Not Available This part replaces MA-05200125016. Price: |
| 24 | MA-10212438000 | GRIP Not Available Price: |
| 25 | MA-10302445000 | STOPPER Not Available Price: |
| 26 | MA-19642466000 | PLATE Not Available Price: |
| 27 | MA-05200120016 | COTTER PIN Not Available Price: |
| 28 | MA-19652447BD0 | LEVER GUID Not Available Price: |
| 29 | MA-A2520706012 | SCREW Not Available Price: |
| 30 | MA-F1550110020 | BOLT,W/SPRING WASH Not Available Price: |
| 73 | 494439 | Screen-Rotating Price: Call Us |
| 78 | 805447 | Screw Price: Call Us |
| 332 | 690887 | Nut Price: Call Us |
| 333 | 492341 | Armature-Magneto Price: Call Us |
| 359 | 691077 | Washer Price: Call Us |
| 363 | 19203 | Puller-Flywheel Price: Call Us |
| 373 | 90576 | Nut Price: Call Us |
| 474 | 393295 | Alternator Price: Call Us |
| 501 | 394890 | Regulator Price: Call Us |
| 507 | 398525 | Insulator Price: Call Us |
| 520 | 691084 | Terminal-Ground Price: Call Us |
| 526 | 805448 | Screw Price: Call Us |
| 529 | 690744 | Grommet Price: Call Us |
| 578 | 493792 | Wire-Stop Price: Call Us |
| 726 | 808162 | Flywheel Ring Gear (Includes Hardware) Price: Call Us |
| 729 | 690586 | Clip-Wire Price: Call Us |
| 851 | 493880 | Terminal-Spark Plug Price: Call Us |
| 877 | 393537 | Connector-Wire, Tri Circuit Price: Call Us |
| 1054 | 280275 | Tie-Cable Price: Call Us |
