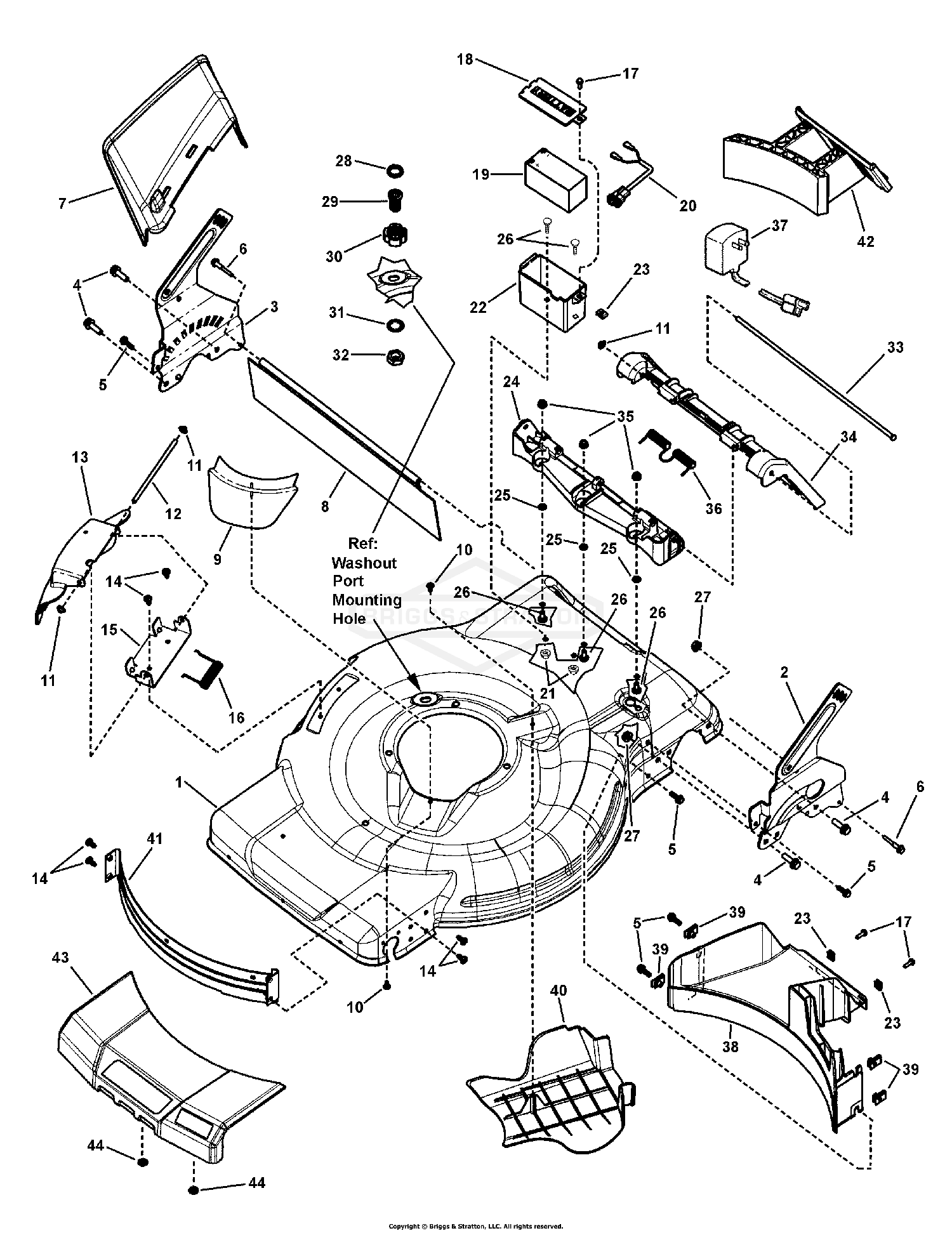

| Ref | Part Number | Description |
|---|
| 2 |
7300885BHYP |
BRACKET, Lower Handle, LH, 22 WBM This part replaces 7300885BH. Price: $23.49 |
| 3 |
7300915BHYP |
BRACKET, Lower Handle, RH, 22 WBM This part replaces 7300915BH. Price: $23.49 |
| 4 |
703410 |
BOLT,5/16-18X1 This part replaces 7091591. Price: $3.61 |
| 5 |
1935450SM |
CAPSCREW-HEX WSHR HD This part replaces 7090699. Price: $3.68 |
| 6 |
7900073YP |
BOLT, 1/4-20 x 1-1/2 Shoulder This part replaces 7900073. Price: $2.89 |
| 7 |
7103299YP |
CHUTE, Side Discharge, 22 WBM This part replaces 7103299. Price: $32.88 |
| 8 |
7103323YP |
GUARD, Rear 22" This part replaces 7103323. Price: $8.49 |
| 9 |
7103296YP |
DEBRIS SHIELD, Front This part replaces 7103296. Price: $7.49 |
| 10 |
703834 |
SCREW, 4.8X1.59X13 This part replaces 7900018. Price: $3.73 |
| 11 |
704005 |
PUSHNUT, CAP, 1/4 This part replaces 7091020. Price: $3.82 |
| 12 |
7101067YP |
ROD, Pivot This part replaces 7101067. Price: $5.87 |
| 13 |
7103298YP |
COVER, Mulching This part replaces 7103298. Price: $14.55 |
| 14 |
703961 |
SCREW, 1/4-20 X .625, Self-Tapping, Zinc/Clear This part replaces 7900067. Price: $3.61 |
| 15 |
7300855BMYP |
BRACKET, CHUTE This part replaces 7300855BM. Price: $8.34 |
| 16 |
166X38MA |
SPRING, Torsion, Side Chute This part replaces 722507. Price: $4.16 |
| 17 |
7091075SM |
SCREW, Hex Washer Flange Self-Tap, #10-24 x 5/8 This part replaces 7091075. Price: $3.72 |
| 18 |
7103458YP |
TOP, Battery Box, Miniature This part replaces 7103458. Price: $4.48 |
| 19 |
707495 |
BATTERY This part replaces 7102931. Price: $54.99 |
| 20 |
7102968YP |
HARNESS, Battery, 1.3 A/HR This part replaces 7102968. Price: $5.02 |
| 21 |
703233 |
NUT, 1/4-20, GR5 This part replaces 725891. Price: $3.94 |
| 22 |
7103457YP |
BOTTOM, Battery Box, Miniature This part replaces 7103457. Price: $10.99 |
| 23 |
1960593SM |
NUT, #10-24, Speed Retainer w/Extrusion This part replaces 1960593. Price: $4.27 |
| 24 |
7103292YP |
HINGE, Rear Discharge Door This part replaces 7103292. Price: $16.90 |
| 25 |
703826 |
BOLT, PUSHNUT 1/4 This part replaces 1960518. Price: $2.95 |
| 26 |
703841 |
BOLT, 1/4-20X0.625 This part replaces 7090803. Price: $3.39 |
| 27 |
703409 |
NUT, 5/16-18, GR5 This part replaces 7091601. Price: $4.92 |
| 28 |
7103957YP |
WASHER, Hose This part replaces 7103957. Price: $3.19 |
| 29 |
7103804YP |
ADAPTOR, Washout Port, WBM This part replaces 7103804. Price: $5.69 |
| 30 |
7103919YP |
COUPLING, Hose This part replaces 7103919. Price: $3.91 |
| 31 |
1960547SM |
LOCKWASHER-INTERNAL This part replaces 7090880. Price: $3.61 |
| 32 |
1960716SM |
NUT, 5/8-11, NC-2B Black Hex Jam This part replaces 1960716. Price: $2.69 |
| 33 |
7103322YP |
ROD, Pivot, Rear Door This part replaces 7103322. Price: $3.20 |
| 34 |
7501541YP |
ASSEMBLY, Door, 22 WBM This part replaces 7103291. Price: $41.95 |
| 35 |
7001278MA |
CHUTE HDWARE KIT SEAR This part replaces 722398. Price: $3.89 |
| 36 |
7103309YP |
SPRING, Torsion, Rear Door This part replaces 7103309. Price: $4.75 |
| 37 |
770625 |
CHARGER-BATTERY This part replaces 7103988. Price: $55.57 |
| 38 |
7103293YP |
BAFFLE, Rear, Rear Wheel Drive WBM This part replaces 7103293. Price: $56.70 |
| 39 |
705876 |
NUT This part replaces 7023295. Price: $3.82 |
| 40 |
7104819YP |
BELT COVER, Rear Drive This part replaces 7104819. Price: $30.48 |
| 41 |
7301020YP |
BAFFLE, FRONT This part replaces 7301020. Price: $47.05 |
| 42 |
7103453YP |
PLUG, Mulching, 22 Deck This part replaces 7103453. Price: $30.04 |
| 43 |
7600191YP |
KIT, NOSE COVER This part replaces 7103295. Price: $32.62 |
