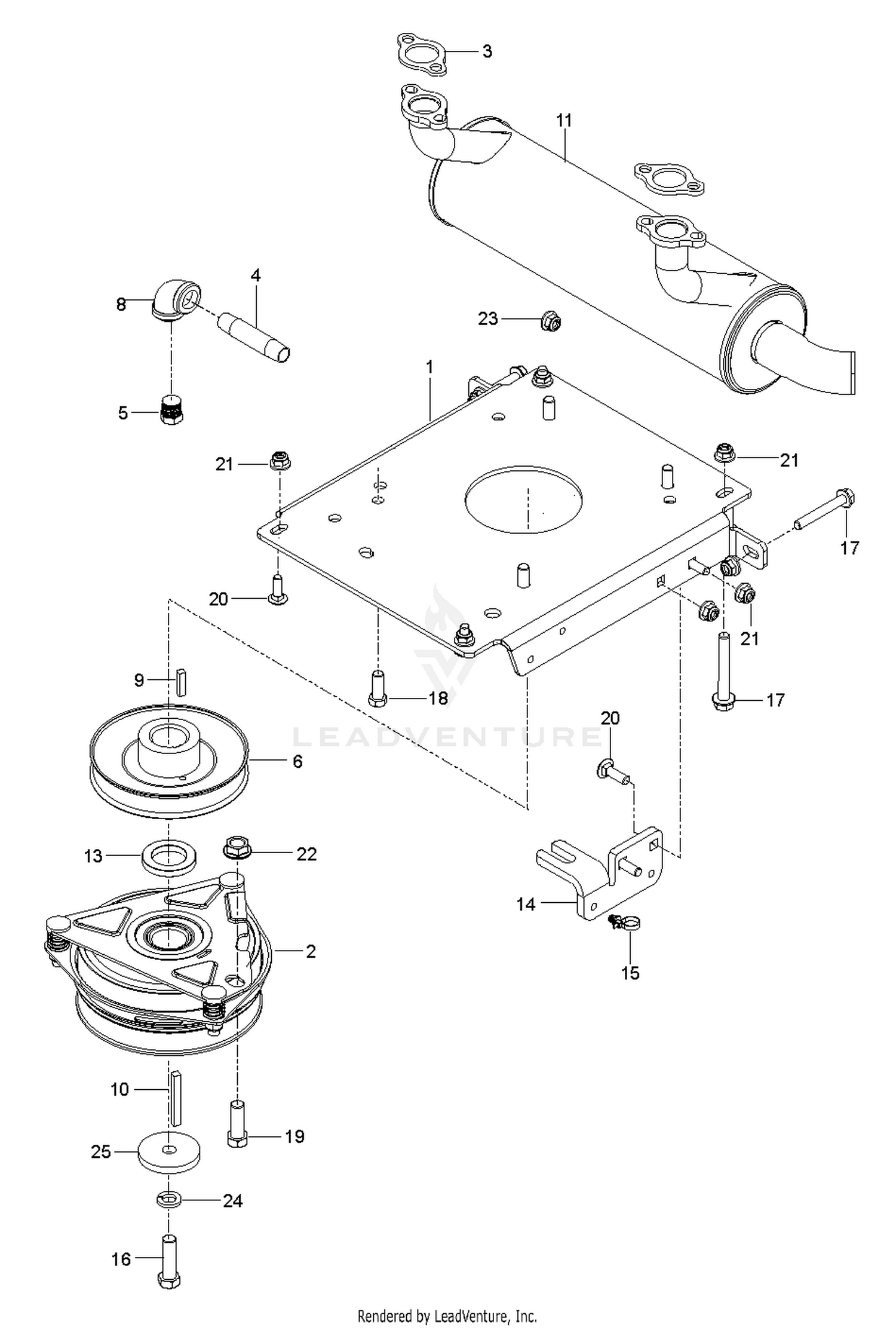

| Ref | Part Number | Description |
|---|
| 000000000 |
| |
Engine, Kohler CV752 (27 HP). For engine replacement parts, see a Kohler dealer (597865401) Price: Call Us 000000000 |
| 1 |
582733302 |
PLATE.PNT.ENGINE.PZ/PZT.EDIP Price: $59.99 |
| 2 |
539113437 |
CLUTCH, 150 FT/LBS Price: $399.99 |
| 3 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 4 |
539118911 |
PIPE NIPPLE 3/8 X 3 Price: $5.99 |
| 5 |
522837001 |
PLUG, DRAIN 3/8 NPTF Price: $2.99 |
| 6 |
510019801 |
PULLEY, ENGINE Price: $49.99 |
| 9 |
539105308 |
KEY 1/4 SQ X 1.0 Price: $3.99 |
| 10 |
539910210 |
KEY 1/4 SQ X 2 Price: $4.99 |
| 11 |
583901001 |
MUFFLER.KOH.EFI.W/O2.SENSOR Price: $329.99 |
| 13 |
525313902 |
Spacers This part replaces 525313901. Price: $14.99 |
| 14 |
597180803 |
Stop This part replaces 522676703. Price: $11.99 |
| 15 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
| 16 |
581332805 |
Bolts This part replaces 581332801. Price: $2.99 |
| 17 |
574233802 |
Hardware Price: $2.99 |
| 18 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 19 |
596436601 |
Screws This part replaces 539104867. Price: $1.99 |
| 20 |
595901501 |
Bolts Price: $3.99 |
| 21 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 22 |
596577901 |
Nuts This part replaces 539102582. Price: $2.99 |
| 23 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 24 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
