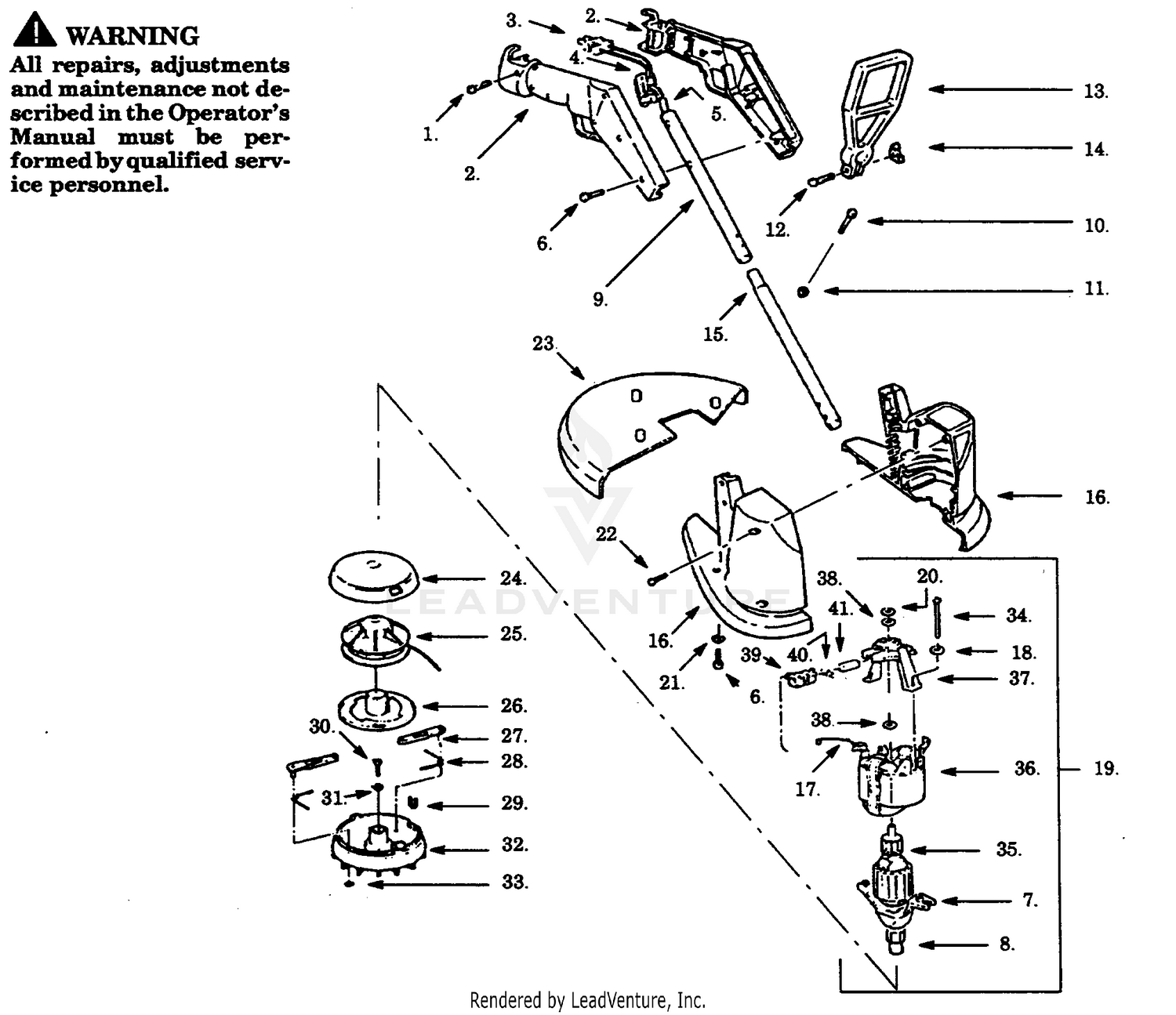

TRIMMER/BRUSHCUTTER ASSEMBLY
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-0545 | BED ASM Price: $1,416.99 |
| 1 | 534826802 | Screw Price: $0.99 |
| 2 | 32128-21 | NUT-HF Price: $0.39 |
| 2 | 534826522 | Handle Set Price: $3.33 |
| 3 | 534936001 | Plug Price: $3.33 |
| 3 | 98-8761-01 | GUIDE-WHEEL Price: $48.62 |
| 4 | 3231-21 | SCREW-CARR Price: $0.76 |
| 4 | 534193003 | Trigger Switch Price: $2.99 |
| 5 | 534828001 | Harness Assembly Price: $3.33 |
| 6 | 108-3156 | BRACKET-ROD Price: $33.17 |
| 6 | 534826801 | Screw Price: $1.99 |
| 7 | 106-5354 | SPRING-LATCH Price: $30.57 |
| 7 | 534872701 | Endbell Price: $3.33 |
| 8 | 534918602 | Shaft Adaptor Price: $3.33 |
| 9 | 105-5394 | ROD-TRAILER, LARGE Price: $19.45 |
| 9 | 534828100 | Upper Handle Tube Price: $5.99 |
| 10 | 534829600 | Screw Price: $3.33 |
| 10 | 98-8756 | SPACER-STOP Price: $12.55 |
| 11 | 323-38 | SCREW-HH Price: $2.62 |
| 11 | 534828300 | Nut Price: $3.33 |
| 12 | 534828400 | Bolt Price: $1.99 |
| 12 | 98-8677-01 | INSERT-STANDARD Price: $117.45 |
| 13 | 105-5392 | RIVET-DRIVE Price: $1.76 |
| 13 | 534159205 | Assist Handle Price: $3.33 |
| 14 | 534828500 | Nut Price: $3.33 |
| 14 | 98-8776 | MAT-BED Price: $179.44 |
| 15 | 534828200 | Tube Price: $4.44 |
| 15 | 98-8777 | SPACER Price: $5.64 |
| 16 | 534826602 | Housing Set Price: $6.99 |
| 17 | 534810031 | Lead Wire Price: $3.33 |
| 18 | 534520020 | Washer Price: $1.99 |
| 19 | 534968403 | Motor Assembly Price: $74.99 |
| 20 | 534246701 | Retaining Ring Price: $0.99 |
| 21 | 534828700 | Washer Price: $1.99 |
| 22 | 534826800 | Screw Price: $1.99 |
| 23 | 534368004 | Guard Price: $7.99 |
| 24 | 534919200 | Cover Price: $2.99 |
| 25 | 952710536 | Spool w/Line Price: Call Us |
| 26 | 534100640 | Cam Price: $2.99 |
| 27 | 534918800 | Arm Price: $3.33 |
| 28 | 534908501 | Spring Price: $1.99 |
| 29 | 534918500 | Line Saver Price: $1.99 |
| 30 | 534978600 | Screw Price: $1.99 |
| 31 | 534908700 | Washer Price: $1.99 |
| 32 | 534972601 | Housing Ass'y. (Inc. 27,28,29,32,33) Price: $3.33 |
| 33 | 534400700 | Nut Price: $1.99 |
| 34 | 534500261 | Screw Price: $3.33 |
| 35 | 534367600 | Armature/End Bell Price: $3.33 |
| 36 | 534367803 | Field Ass'y Price: $3.33 |
| 37 | 534872601 | Endbell Price: $3.99 |
| 38 | 534494616 | Washer Price: $1.99 |
| 39 | 534260007 | Brush Holder Ass'y Price: $2.99 |
| 40 | 534570009 | Spring Price: $1.99 |
