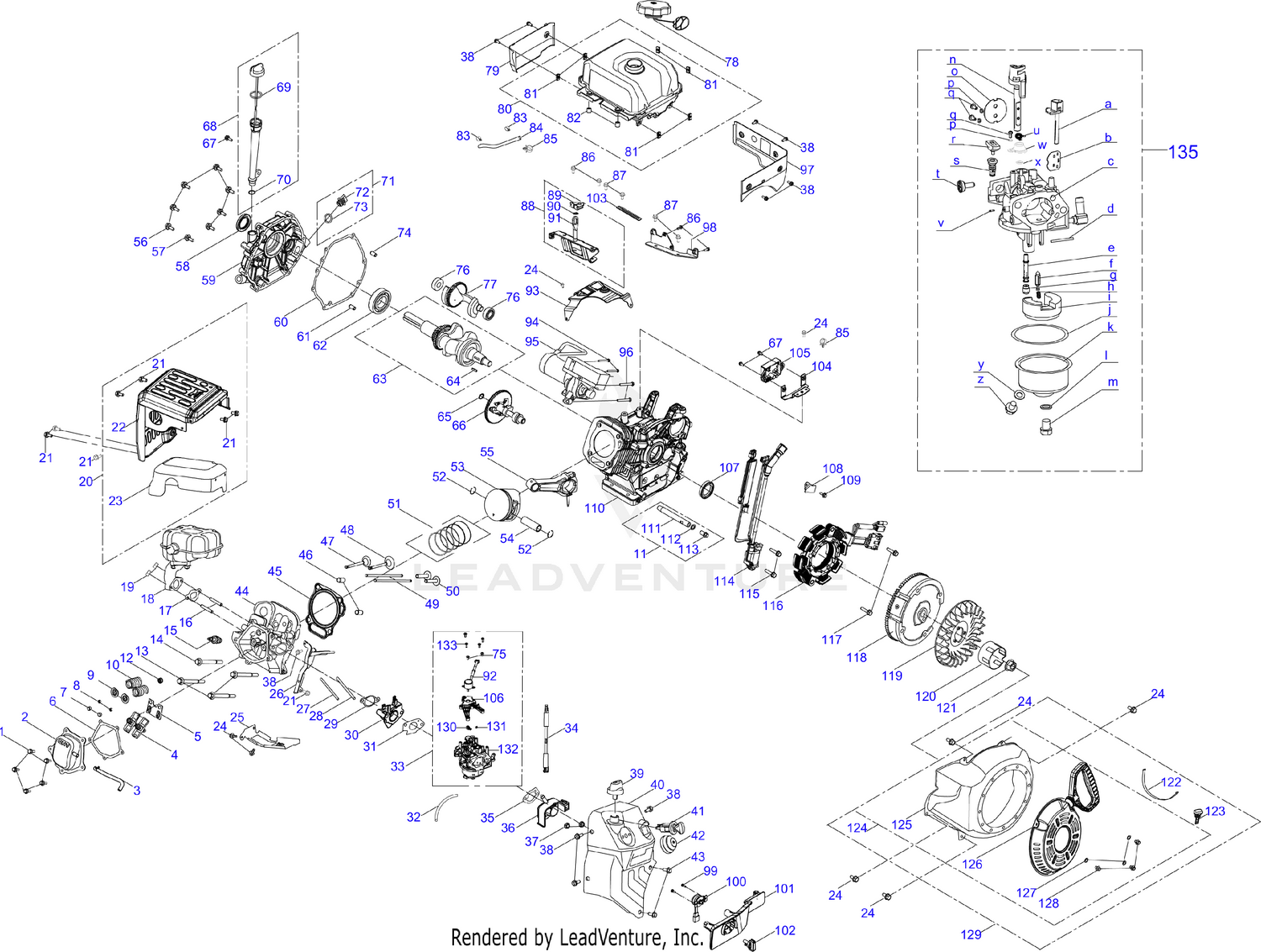

General Assembly
Parts (159)
| Ref | Part Number | Description |
|---|---|---|
| a | None | Choke Shaft |
| b | None | Choke Plate |
| c | None | Carburetor Body |
| d | 711-06036 | HINGE FLOAT PIN Price: $0.60 |
| e | None | Nozzle Tube |
| f | 751P14036A | NEEDLE VALVE Price: $5.16 |
| g | None | Main Jet |
| h | 732P05251A | NEEDLE VALVE SPRING This part replaces 732P05251. Price: $1.70 |
| i | 731P09131 | CARBURETOR FLOAT Price: $2.89 |
| j | 951-11970 | FUEL BOWL GASKET Price: $5.95 |
| k | 951-15487 | FLOAT BOWL Price: $8.96 |
| l | 951-11348A | FUEL BOWL GASKET Price: $5.07 |
| m | 710-04945 | BOLT M8-1 x 10 Price: $3.66 |
| n | None | Throttle Shaft |
| o | None | Throttle Plate |
| p | 736P05209A | LOCK WASHER 3MM Price: $2.45 |
| q | 710P06580 | SCREW M3x 6 Price: $2.77 |
| r | None | Idle Jet Rivet |
| s | None | Idle Jet |
| t | 710P06038A | SPEED IDLE SCREW Price: $2.45 |
| u | None | Throttle Shaft Spring |
| v | 737P05003 | PRIMER LINE Price: $1.78 |
| w | None | Throttle Shaft Spring |
| x | 736P05037 | FIBER WASHER Price: $0.12 |
| y | 951-11349A | FUEL DRAIN PLUG GASKET Price: $3.66 |
| z | 710-04938 | FUEL DRAIN PLUG Price: $3.66 |
| 1 | 710-04968 | BOLT M6 x 16 Price: $5.77 |
| 2 | 951-11220 | VALVE COVER Price: $31.06 |
| 3 | 751P20188 | BREATHER HOSE Price: $3.95 |
| 4 | 951-11981A | ROCKER ARM ASSEMBLY Price: $35.16 |
| 5 | 951-11965B | PUSH ROD GUIDE Price: $5.75 |
| 6 | 951-15425A | VALVE COVER GASKET This part replaces 951-15425. Price: $9.59 |
| 7 | 951-12269 | EXHAUST VALVE ADJUSTER Price: $5.48 |
| 8 | 951-14912A | VALVE CAP Price: $3.03 |
| 9 | 951-14911A | VALVE SPRING SEAT This part replaces 951-14911. Price: $4.64 |
| 10 | 951-15812 | VALVE SPRING Price: $6.88 |
| 11 | 751P19228A | OIL DRAIN PIPE Price: $12.19 |
| 12 | 951-11964A | INTAKE VALVE SEAL Price: $9.96 |
| 13 | 710-06064 | SCREW M10-1.25 x 87 x GR10.9 Price: $5.72 |
| 14 | 710-06065 | SCREW M10-1.25 x 65 x GR10.9 Price: $5.53 |
| 15 | 951-10292A | SPARK PLUG (F6RTC/RN11YC/BPR6ES) Price: $6.35 |
| 16 | 710-04964 | STUDS M8-1.25 x 48.5 Price: $5.48 |
| 17 | 951-11212A | MUFFLER GASKET Price: $4.81 |
| 18 | 951-15426A | MUFFLER Price: $80.84 |
| 19 | 751-15427 | NUT M8 Price: $3.64 |
| 20 | 951-05388 | MUFFLER SHIELD ASSEMBLY Price: $69.86 |
| 21 | 710-04914 | BOLT M6-1 x 10 GR8.8 Price: $3.71 |
| 22 | 751P15428 | MUFFLER SHIELD (OUTER) Price: $54.16 |
| 23 | 751P15429A | MUFFLER SHIELD (INNER) Price: $29.17 |
| 24 | 710-04915 | BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 25 | 951-11317 | CYLINDER BAFFLE Price: $25.21 |
| 26 | 951-15430 | RECOIL SNOW GUARD Price: $13.06 |
| 27 | 710-04963A | CARBURETOR STUD Price: $5.55 |
| 28 | 751-20209 | STUD M6 x 123 Price: $2.45 |
| 29 | 951-15434A | CARBURETOR INSULATOR GASKET Price: $6.24 |
| 30 | 751P11316A | INSULATOR Price: $7.61 |
| 31 | 951-15435 | CARBURETOR INSULATOR GASKET Price: $6.24 |
| 32 | 935-05038 | PRIMER HOSE Price: $11.24 |
| 33 | 651P08796 | CARBURETOR ASSEMBLY This part replaces 651-08796. Price: $80.33 |
| 34 | 951-15436 | CHOKE KNOB SHAFT Price: $5.37 |
| 35 | 951-15448 | HEATER BOX CARBURETOR GASKET Price: $7.16 |
| 36 | 751P20214 | HEATER BOX Price: $4.27 |
| 37 | 712-05015 | HEX NUT Price: $5.78 |
| 38 | 710-04916 | BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 39 | 951-15450A | CHOKE KNOB Price: $6.35 |
| 40 | 951-15452 | CONTROL PANEL Price: $23.70 |
| 41 | 951-15022A | ENGINE KEY SWITCH ASSEMBLY This part replaces 951-15022. Price: $9.61 |
| 42 | 951-10639B | PRIMER Price: $13.84 |
| 43 | 710-05192 | SCREW M6-1 x 20 CL5.8 Price: $5.38 |
| 44 | 751P15813A | CYLINDER HEAD This part replaces 751-15813. Price: $125.53 |
| 45 | 951-11963A | CYLINDER HEAD GASKET Price: $14.41 |
| 46 | 715-04097 | DOWEL PIN Price: $5.34 |
| 47 | 951-15814 | EXHAUST VALVE Price: $17.21 |
| 48 | 951-15777 | INTAKE VALVE Price: $17.52 |
| 49 | 951-14226A | PUSH ROD This part replaces 951-14226. Price: $9.70 |
| 50 | 951-11962A | TAPPET This part replaces 951-11962. Price: $5.88 |
| 51 | 951-12579 | PISTON RING KIT Price: $25.50 |
| 52 | 951-11953A | PISTON PIN SNAP RING Price: $3.42 |
| 53 | 951-11952 | PISTON Price: $38.35 |
| 54 | 951-11954A | PISTON PIN This part replaces 951-11954. Price: $7.31 |
| 55 | 951-11951 | CONNECTING ROD ASSEMBLY Price: $68.39 |
| 56 | 710-06061 | SCREW M8-1.25 x 38 GR10.9 Price: $5.67 |
| 57 | 710-06289 | BOLT M8 x 45 Price: $3.89 |
| 58 | 951-11375A | OIL SEAL Price: $13.55 |
| 59 | 751P20248 | CRANKCASE COVER Price: $56.32 |
| 60 | 951-15455A | CRANKCASE COVER GASKET Price: $12.54 |
| 61 | 715-04102 | DOWEL PIN Price: $4.93 |
| 62 | 951-15456 | BALL BEARING Price: $24.17 |
| 63 | 951-14218 | CRANKSHAFT ASSEMBLY Price: $235.20 |
| 64 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 65 | 736-04476 | WASHER Price: $5.01 |
| 66 | 951-11959B | CAMSHAFT Price: $59.85 |
| 67 | 710-05003A | BOLT M6-1 x 18 This part replaces 710-05003. Price: $3.11 |
| 68 | 951-05391A | DIPSTICK OIL ASSEMBLY Price: $23.25 |
| 69 | 921-04663A | O-RING Price: $5.05 |
| 70 | 951-15459 | O-RING Price: $3.56 |
| 71 | 951-05392A | OIL DRAIN PLUG Price: $6.35 |
| 72 | 751P15462A | OIL PLUG This part replaces 751P15462. Price: $2.47 |
| 73 | 951-11960 | O-RING Price: $3.78 |
| 74 | 715-04096A | DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 75 | 751-22625 | SCREW M4x8 Price: $1.70 |
| 76 | 951-15463 | BALL BEARING Price: $10.75 |
| 77 | 951-11968 | BALANCE GEAR ASSEMBLY Price: $101.98 |
| 78 | 951-15172A | FUEL CAP Price: $15.87 |
| 79 | 951-15464 | FUEL TANK BACK PANEL Price: $6.79 |
| 80 | 951-05394 | FUEL TANK ASSEMBLY Price: $98.33 |
| 81 | 951-15465A | THREADED TAB This part replaces 951-15465. Price: $2.82 |
| 82 | 951-15466 | BUSHING Price: $2.94 |
| 83 | 951-11700A | CARBURETOR HOSE CLAMP Price: $3.60 |
| 84 | 951-15467 | FUEL HOSE Price: $16.11 |
| 85 | 723-04071A | FUEL LINE SUPPORT CLAMP This part replaces 723-04071. Price: $2.77 |
| 86 | 710-06537 | BOLT Price: $3.23 |
| 87 | 710-04921 | BOLT M8-1.25 x 14 GR8.8 Price: $4.75 |
| 88 | 951-05395 | FUEL TANK MOUNTING BRACKET Price: $20.39 |
| 89 | 951-15469 | RUBBER GROMMET Price: $3.38 |
| 90 | 951-15470 | RUBBER GROMMET Price: $3.71 |
| 91 | 951-15471 | FUEL TANK MOUNTING BRACKET Price: $19.19 |
| 92 | 751P22749 | STEPPER MOTOR Price: $19.36 |
| 93 | 751P20253 | GOVERNOR GEAR BRACKET Price: $7.36 |
| 94 | 751-15472 | SCREW Price: $4.29 |
| 95 | 951-15492 | ELECTRIC STARTER Price: $386.66 |
| 96 | 710-04967 | BOLT M8-1.25 x 55 GR8.8 Price: $5.59 |
| 97 | 951-15474A | FUEL TANK FRONT PANEL Price: $10.04 |
| 98 | 951-15475 | FUEL TANK BASE BRACKET Price: $13.41 |
| 99 | 751-20216 | SCREW Price: $2.45 |
| 100 | 751P22750 | SPEED CONTORL SWITCH Price: $13.66 |
| 101 | 751P22751 | SPEED KNOB COVER Price: $3.40 |
| 102 | 751P22753 | SPEED CONTROL KNOB Price: $1.70 |
| 103 | 951-15889 | CLIP Price: $4.62 |
| 104 | 751P22754 | ECM BRACKET Price: $2.84 |
| 105 | 751P22756 | ECM Price: $38.16 |
| 106 | 751P22757 | MOTOR BASE Price: $6.83 |
| 107 | 951-11499A | OIL SEAL Price: $12.13 |
| 108 | 951-11186 | ALTERNATOR WIRE CLAMP BRACKET Price: $4.44 |
| 109 | 710-04966 | BOLT M6-1 x 8 GR8.8 Price: $5.30 |
| 110 | 951-14221 | CRANKCASE COMPLETE Price: $343.20 |
| 111 | 951-11350A | OIL DRAIN PIPE This part replaces 951-11350. Price: $7.05 |
| 112 | 736-04440A | FLAT WASHER Price: $6.01 |
| 113 | 710-04906 | OIL DRAIN PLUG Price: $5.86 |
| 114 | 751P22758 | IGNITION MODULE Price: $26.15 |
| 115 | 710-05350 | IGNITION COIL BOLT M6-1 x 28 GR8.8 Price: $3.53 |
| 116 | 751P22759 | CHARGING COIL Price: $36.45 |
| 117 | 710-04969 | BOLT-M6-1 x 30 GR8.8 Price: $3.66 |
| 118 | 951-12556 | FLYWHEEL Price: $178.45 |
| 119 | 951-11313A | COOLING FAN Price: $44.17 |
| 120 | 951-11314 | STARTER CUP Price: $16.55 |
| 121 | 712-05169 | FLYWHEEL NUT M16X1.5 Price: $7.30 |
| 122 | 725-06031 | CABLE TIE - 3 x 150 Price: $2.04 |
| 123 | 951-10630 | IGNITION KEY Price: $6.07 |
| 124 | 951-05396 | BLOWER HOUSING ASSEMBLY Price: $73.14 |
| 125 | 951-15481 | BLOWER HOUSING Price: $41.64 |
| 126 | 951-05397A | RECOIL START ASSEMBLY Price: $49.96 |
| 127 | 736-04455B | FLAT WASHER Price: $5.94 |
| 128 | 710-06354 | BOLT M6 x 10 Price: $5.73 |
| 129 | 651P05915 | RECOIL STARTER Price: $114.47 |
| 130 | 751P22760 | GUIDE CLAMP Price: $1.70 |
| 131 | 732P06906 | DAMPER SPRING Price: $3.95 |
| 132 | 651P08803 | CARBURETOR This part replaces 651-08803. Price: $46.14 |
| 133 | 710-05268 | SCREW M4-0.7x10 Price: $1.92 |
