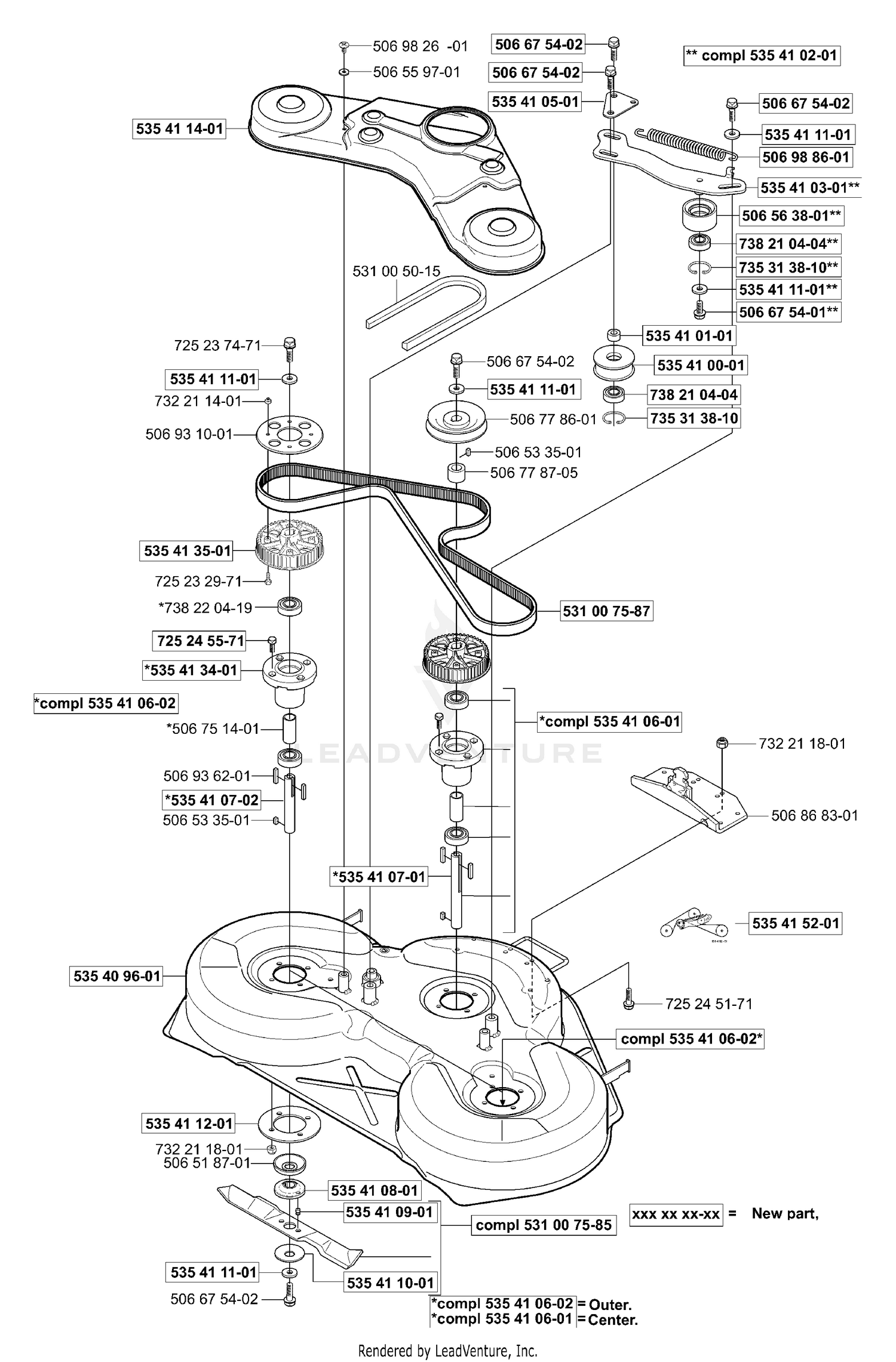

Deck (41" Mulch)
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 506518701 | 506518701 | BEARING COVER Price: $6.99 |
| 506533501 | 506533501 | KEY Price: $3.99 |
| 506559701 | 506559701 | WASHER Price: $4.99 |
| 506563801 | 506563801 | ROLLER Price: $29.99 |
| 506675401 | 506675401 | BOLT Price: $4.99 |
| 506675402 | 506675402 | BOLT Price: $5.99 |
| 506751401 | 506751401 | SPACER Price: $9.99 |
| 506778601 | 506778601 | PULLEY Price: $49.99 |
| 506778705 | 506778705 | Spacer Price: $26.02 |
| 506868301 | 506868301 | Price: $97.71 |
| 506931001 | 506931001 | FLANGE Price: $49.99 |
| 506936201 | 506936201 | KEY Price: $5.99 |
| 506982601 | 506982601 | SCREW Price: $5.99 |
| 506988601 | 594924101 | Springs This part replaces 506988601. Price: $3.99 |
| 531005015 | 589531401 | BELT This part replaces 531005015. Price: $44.99 |
| 531007585 | 531007585 | BLADE COMPLETE RIDER 155 Price: $19.99 |
| 531007587 | 589533701 | BELT This part replaces 531007587. Price: $74.99 |
| 535409601 | 535409601 | DECK SHELL Price: $369.46 |
| 535410001 | 535410001 | PULLEY Price: $49.99 |
| 535410101 | 535410101 | SPACER Price: $8.99 |
| 535410201 | 535410201 | TENSIONER Price: $101.99 |
| 535410301 | 535410301 | TENSION Price: $62.56 |
| 535410501 | 535410501 | LINK Price: $13.99 |
| 535410601 | 535410601 | MANDREL ASSY. Price: $99.99 |
| 535410602 | 535410602 | BLADE HOUSING ASSY Price: $109.99 |
| 535410701 | 535410701 | SHAFT Price: $44.99 |
| 535410702 | 535410702 | SHAFT Price: $49.99 |
| 535410801 | 535410801 | ADAPTER Price: $44.99 |
| 535410901 | 535410901 | PIN Price: $5.99 |
| 535411001 | 535411001 | WASHER Price: $10.99 |
| 535411101 | 535411101 | WASHER Price: $5.99 |
| 535411201 | 535411201 | WASHER Price: $37.99 |
| 535411401 | 535411401 | COVER Price: $119.99 |
| 535413401 | 535413401 | BEARING HOUSING Price: $89.99 |
| 535413501 | 535413501 | PULLEY Price: $32.99 |
| 535415201 | 535415201 | BELT DECAL Price: $6.52 |
| 725232971 | 725232971 | SCREW Price: $2.99 |
| 725237471 | 725237471 | SCREW M6S 6X30 Price: $4.99 |
| 725245171 | 725245171 | SCREW Price: $2.08 |
| 725245571 | 725245571 | SCREW Price: $3.99 |
| 732211401 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 732211601 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 732211801 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 735313810 | 735313810 | RETAINING RING Price: $2.99 |
| 738210404 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
