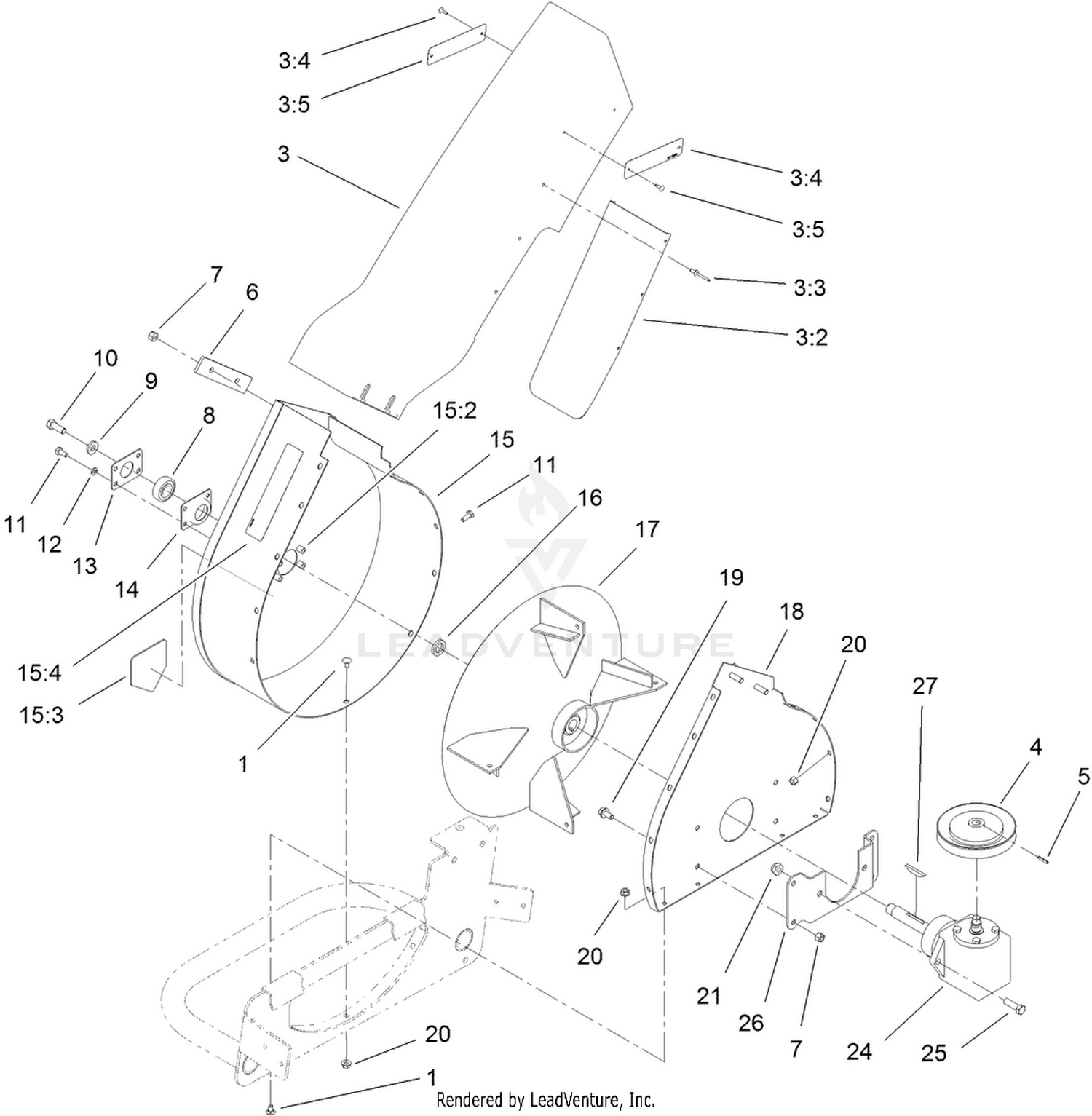

Blower Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3229-10 | SCREW-CARR Price: $0.22 |
| 3 | 110-5666 | CHUTE ASM Price: $349.97 |
| 4 | 56-4810-03 | PULLEY ASM Price: $229.99 |
| 5 | 32121-8 | PIN-ROLL, SLOTTED Price: $0.88 |
| 6 | 110-5684-03 | BRACKET-CHUTE Price: $24.93 |
| 7 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 8 | 38-7820 | BEARING-BALL Price: $13.99 |
| 9 | 43-0940 | SPACER Price: $1.25 |
| 10 | 3235-22 | SCREW-HH, LOCK Price: $2.59 |
| 11 | 321-3 | SCREW-HH Price: $0.28 |
| 12 | 3253-3 | WASHER-LOCK Price: $0.31 |
| 13 | 63-9700-03 | PLATE-COVER Price: $18.43 |
| 14 | 37-6730 | CUP-BEARING Price: $15.84 |
| 15 | 110-3096 | BLOWER HOUSING ASM Price: $669.98 |
| 16 | 63-9710 | SPACER-BEARING Price: $10.24 |
| 17 | 56-4780-03 | IMPELLER ASM Price: $926.99 |
| 18 | 110-3094-03 | MOUNTING PLATE ASM Price: $630.21 |
| 19 | 3234-14 | SCREW-HHF Price: $0.61 |
| 20 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 21 | 3296-44 | NUT-LOCK, NI Price: $2.46 |
| 24 | 110-3065-03 | GEAR BOX ASM Price: $1,084.65 |
| 25 | 323-7 | SCREW-HH Price: $0.65 |
| 26 | 110-3099-03 | MOUNT-BLOWER Price: $59.72 |
