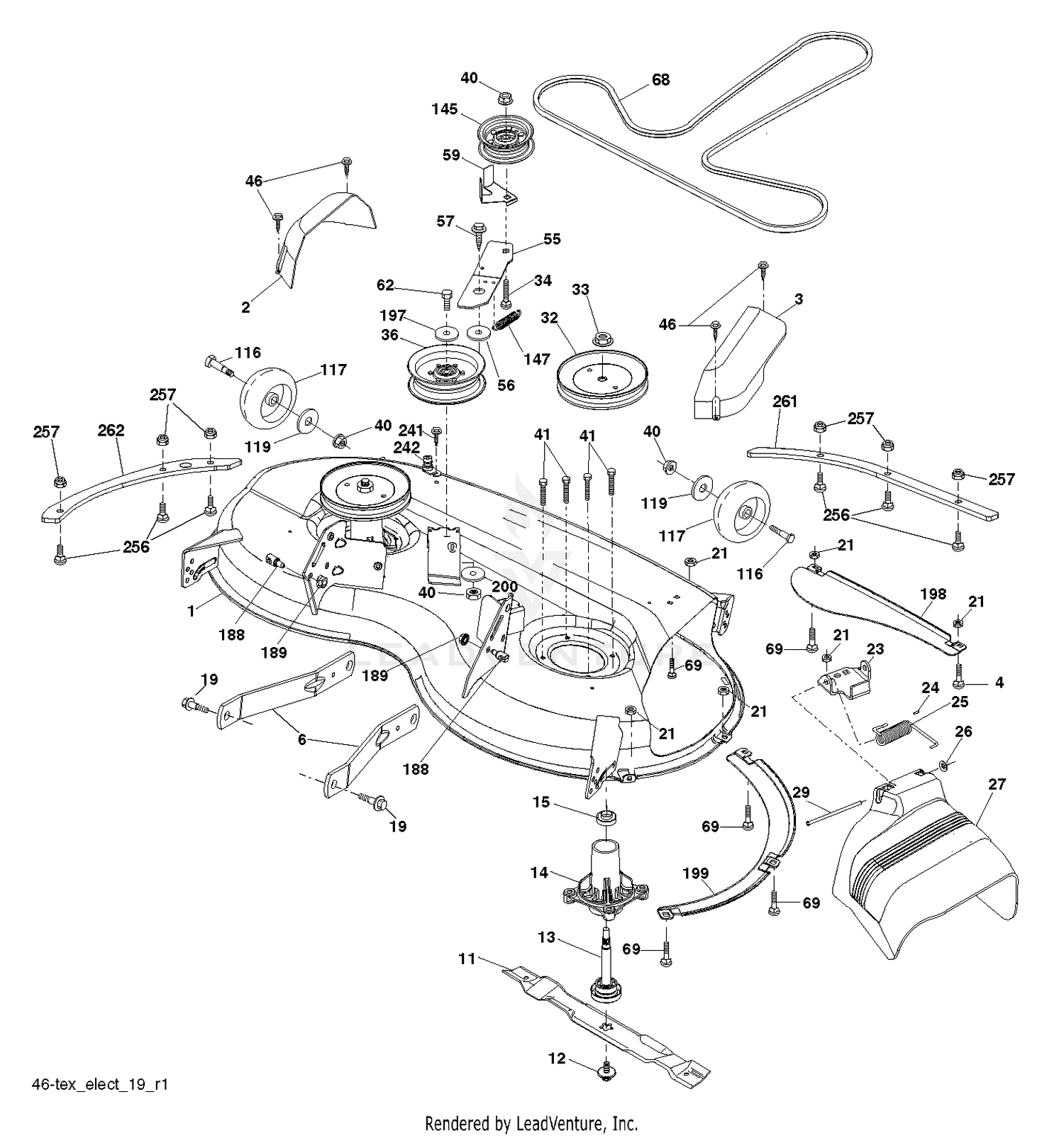

| Ref | Part Number | Description |
|---|
| 1 |
32-1140 |
DISCONTINUED This part replaces 321-13. Price: $2.04 |
| 1 |
547746001 |
KIT.SVC.DECK.WELD.46.TEX_668 This part replaces 589535304. Price: $449.99 |
| 2 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 2 |
532405507 |
COVER.MANDREL.LH.46" Price: $19.99 |
| 3 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 3 |
532405506 |
COVER.MANDREL.RH.46" Price: $19.99 |
| 4 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 4 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 5 |
10-7070 |
KEY-SQUARE Price: $1.02 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
61-2120 |
DISCONTINUED Price: Call Us |
| 7 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 11 |
61-3470 |
AIR CLEANER HOSE Price: $39.40 |
| 12 |
3334-945 |
TIE-CABLE This part replaces 3333-975. Price: $0.43 |
| 12 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 13 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 587256501. Price: $49.99 |
| 14 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 15 |
76-0070 |
DISCONTINUED Price: Call Us |
| 16 |
59-9810 |
DISCONTINUED Price: Call Us |
| 17 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 18 |
70-7080 |
WASHER Price: $5.31 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 19 |
61-2170 |
DISCONTINUED Price: Call Us |
| 20 |
3218-3 |
NUT-JAM Price: $0.25 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 21 |
70-8020 |
DISCONTINUED Price: Call Us |
| 22 |
70-8040 |
WASHER Price: $5.46 |
| 23 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
3213-9 |
SCREW-HH Price: $5.50 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 25 |
61-3390 |
BELT Price: $39.04 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
61-0040 |
MUFFLER Price: $418.82 |
| 27 |
2112-9 |
CLAMP Price: $7.78 |
| 27 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99 |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 29 |
3217-6 |
NUT-HEX Price: $1.19 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
12-3270 |
SCREW Price: $3.09 |
| 31 |
61-0020-03 |
MUFFLER SHROUD ASM This part replaces 61-0020. Price: $445.18 |
| 32 |
3256-70 |
WASHER-FLAT Price: $0.25 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $12.99 |
| 33 |
323-10 |
SCREW-HH This part replaces 322-46. Price: $0.89 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 35 |
32128-25 |
NUT-HF Price: $3.19 |
| 36 |
70-8030 |
KEY Price: $9.12 |
| 37 |
84-1840-03 |
MUFFLER GRILLE This part replaces 66-5330. Price: $431.06 |
| 38 |
2412-41 |
CLAMP-R Price: $4.82 |
| 39 |
3290-410 |
TIE-MOUNT, PUSH Price: $4.57 |
| 40 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 41 |
61-2220 |
SPACER Price: $9.77 |
| 42 |
323-47 |
SCREW-HH Price: $1.22 |
| 44 |
3218-1 |
NUT-JAM Price: $1.29 |
| 45 |
61-3330 |
PULLEY Price: $199.28 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 46 |
61-3340 |
BUSHING Price: $32.74 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 62 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 68 |
584453101 |
V-BELT.DRIVE.MWR.MECHANICL.46" This part replaces 532405143. Price: $49.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 197 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 198 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 199 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 200 |
596135501 |
Washers This part replaces 532413524. Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 256 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- This part replaces 539109800. Price: $2.99 |
| 257 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 261 |
589481805 |
PLATE.REINF.DECK.46".FRONT.BLK Price: $17.99 |
| 262 |
589482005 |
PLATE.REINF.DECK.46".SIDE.BLK Price: $17.99 |
| 532416405 |
COUPLING.QUICK |
CONNECT Price: $8.99 532416405 |
| 547746001 |
KIT.SVC.DECK.WELD.46.TEX_668 |
This part replaces 589361201. Price: $449.99 547746001 |
