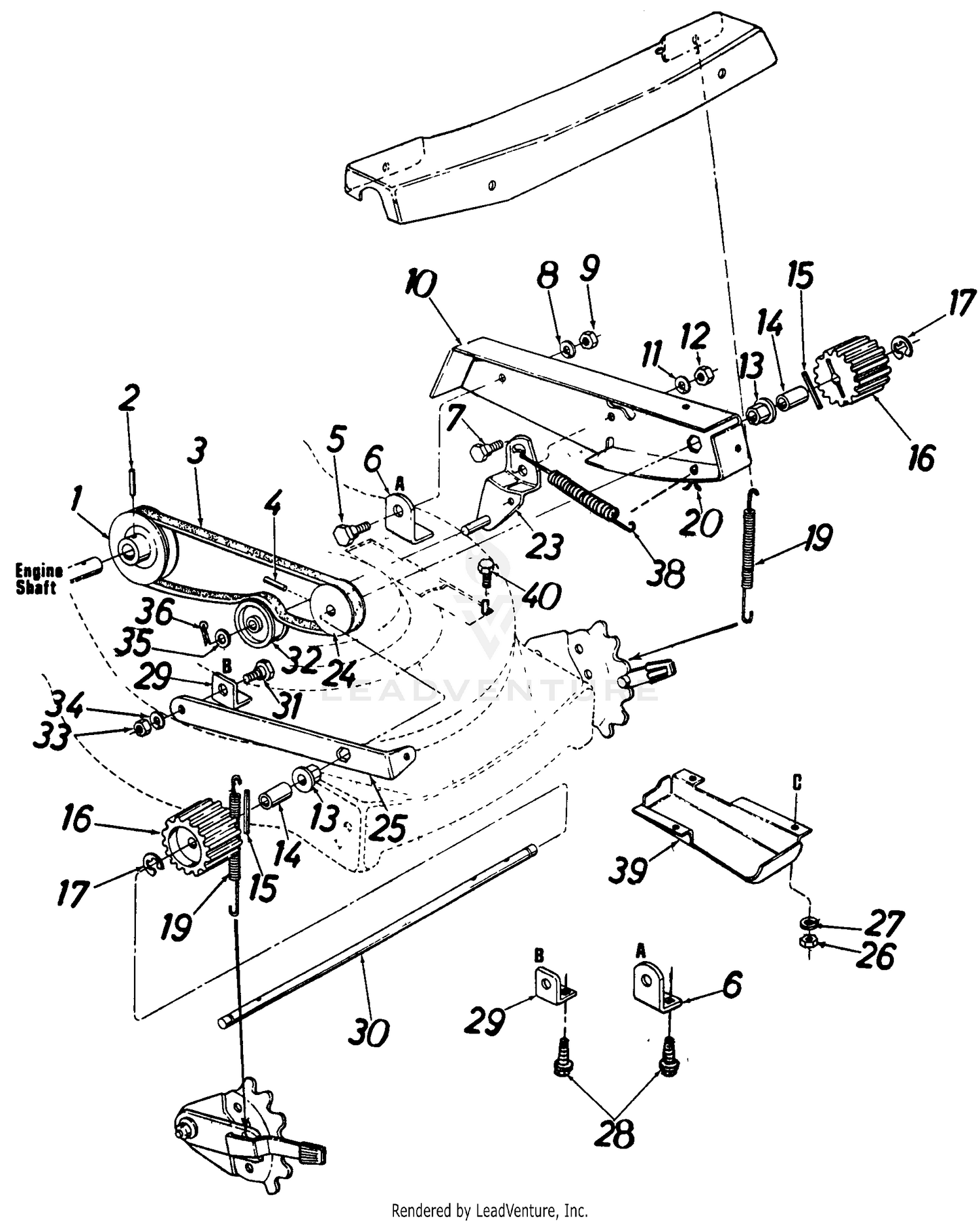

| Ref | Part Number | Description |
|---|
| 2 |
915-0246 |
Roll Pin 3/16 x 1.25" Not Available This part replaces 715-0246. Price: |
| 3 |
954-0163 |
V-BELT 1/2 x 28 Not Available This part replaces 754-0163. Price: |
| 4 |
715-0247 |
SPRING PIN Not Available Price: |
| 5 |
738-0147 |
SHOULDER SCREW .500 DIA x .170 Not Available Price: |
| 6 |
15346 |
BRACKET Not Available Price: |
| 7 |
738-0147 |
SHOULDER SCREW .500 DIA x .170 Not Available Price: |
| 8 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 9 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 10 |
13613 |
BELT COVER ASS'Y Not Available Price: |
| 11 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 12 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 13 |
748-0228 |
HEX FLANGE BEARING .505 ID Not Available Price: |
| 14 |
711-0313 |
SLEEVE Not Available Price: |
| 15 |
915-0246 |
Roll Pin 3/16 x 1.25" Not Available This part replaces 715-0246. Price: |
| 16 |
931-0393 |
DRIVE PINION Not Available This part replaces 731-0393. Price: |
| 17 |
916-0104 |
E-RING FOR .500 This part replaces 716-0104. Price: $3.37 |
| 19 |
732-0344 |
EXTENSION SPRING Not Available Price: |
| 20 |
714-0115 |
Cotter Pin Price: $3.48 |
| 23 |
13608 |
BRACKET AS Not Available Price: |
| 25 |
12980 |
BRACKET-CO Not Available Price: |
| 26 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 27 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 28 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 29 |
15347 |
BRACKET-PI Not Available Price: |
| 30 |
738-0356 |
SHAFT-PINION Not Available Price: |
| 31 |
738-0147 |
SHOULDER SCREW .500 DIA x .170 Not Available Price: |
| 32 |
756-0360 |
FLAT IDLER PULLEY Not Available Price: |
| 33 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 34 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 35 |
736-0160 |
Fl-Wash. .53 I.D. x .93 O.D. Price: $3.90 |
| 36 |
714-0115 |
Cotter Pin 1/8" Dia. x 1.00" Lg.* Price: $3.48 |
| 38 |
932-0395 |
EXTENSION SPRING Not Available This part replaces 7320395. Price: |
| 39 |
13610 |
Belt Cover Baffle Price: Call Us |
