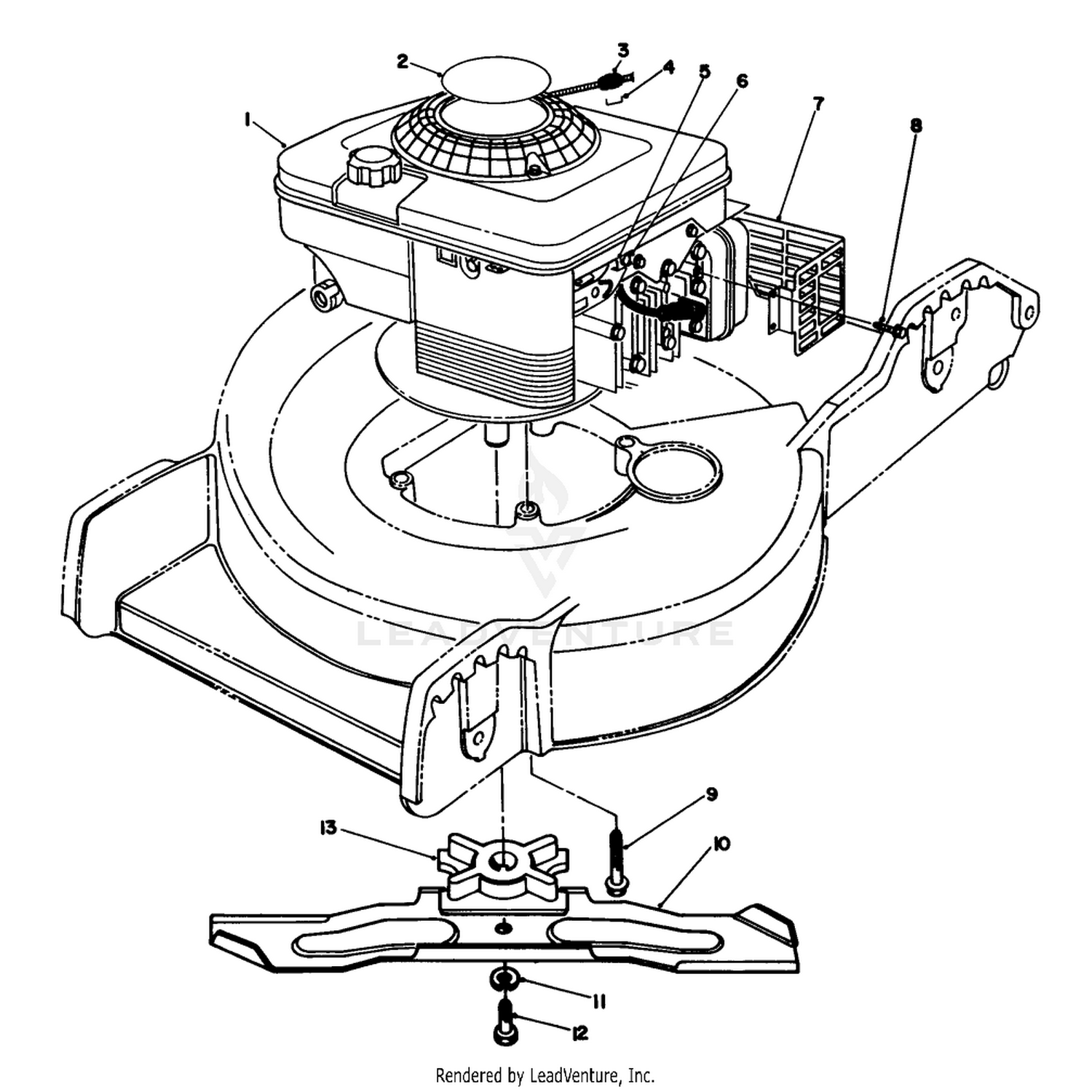

Engine Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 80-2860 | DISCONTINUED Price: Call Us |
| 5 | 2210-249 | CLAMP-CASING Price: $2.05 |
| 6 | 86-7990 | CLAMP SCREW F/W ENGINE This part replaces 2210-313. Price: $2.05 |
| 7 | 104-7577-03 | SHIELD-MUFFLER This part replaces 82-8550. Price: $16.78 |
| 8 | 104-2065 | SCREW-HWH This part replaces 32144-73. Price: $0.28 |
| 9 | 32144-106 | DISCONTINUED Price: Call Us |
| 10 | 33-0490-03 | BLADE-18" This part replaces 33-0490. Price: $24.06 |
| 11 | 3253-22 | WASHER-LOCK Price: $2.09 |
| 12 | 26-0671 | SCREW-HH Price: $7.99 |
