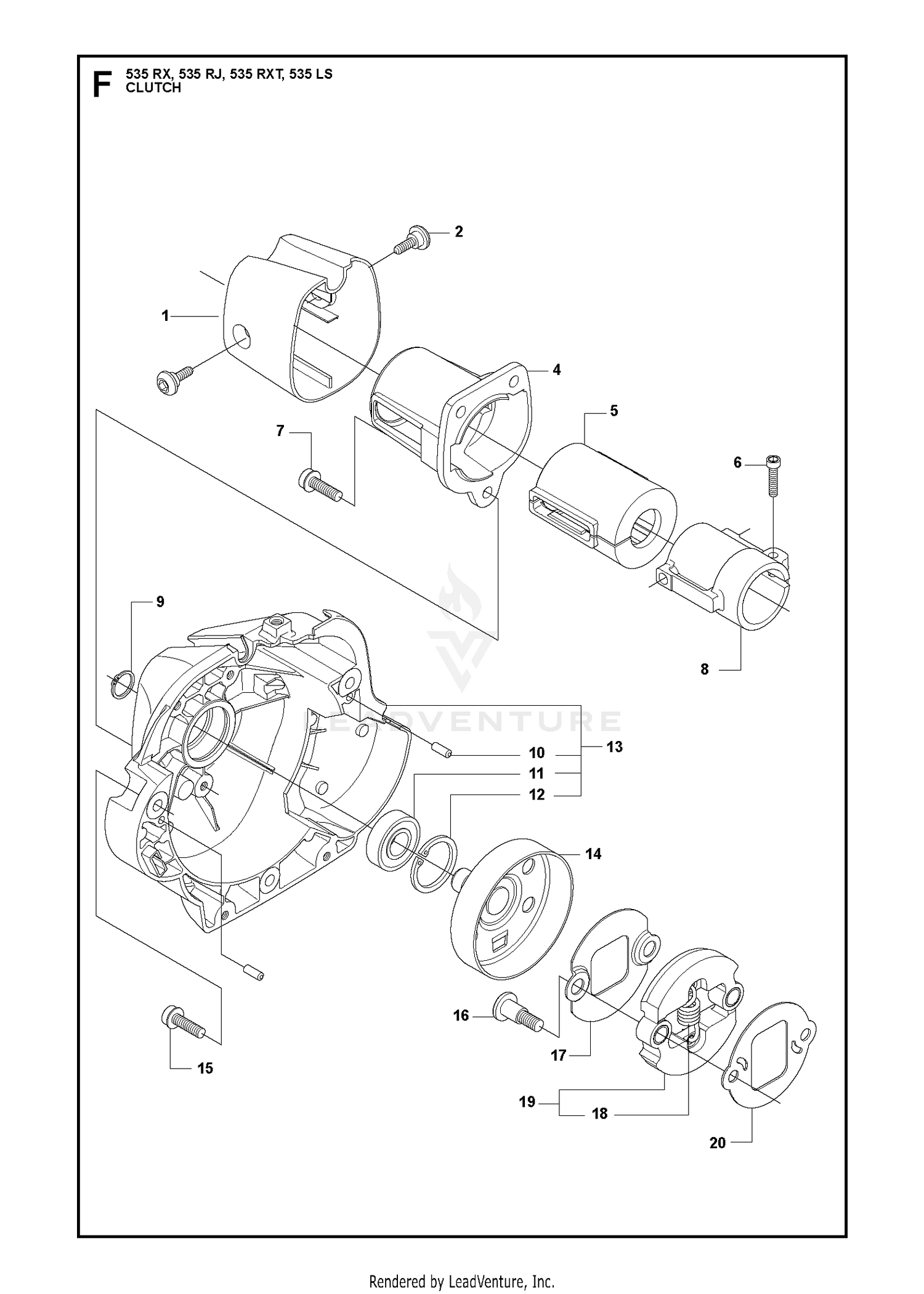

CLUTCH
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | SG404070-03 | HEAD-TINE Price: Call Us |
| 2 | 323-15 | SCREW-HH Price: $1.53 |
| 2 | 503961301 | SCREW MT5X11 Price: $0.50 |
| 3 | SG477125 | SCREW-SET, SQH Price: $10.26 |
| 4 | 537310001 | HOLDER, TUBE Price: $22.99 |
| 4 | SG487200 | BUMPER-HEAD Price: $25.52 |
| 5 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 5 | 537322701 | VIBRATION ABSORBER Price: $11.99 |
| 6 | 725533355 | SCREW MC6S 5X25 Price: $3.99 |
| 6 | SG447080 | BUSHING-FLANGED Price: $37.96 |
| 7 | 503200320 | SCREW Price: $3.99 |
| 7 | SG437100 | SPACER This part replaces SG437100-03. Price: $45.57 |
| 8 | SG449127-03 | POST-SPRING Price: $49.81 |
| 9 | 735311400 | SEEGER CLIP Price: $2.99 |
| 9 | SG449129 | BOLT-SHOULDER Price: $25.27 |
| 10 | 503240702 | PIN Price: $1.99 |
| 10 | SG487201 | SPACER-PLASTIC Price: $65.49 |
| 11 | 738210104 | BALL BEARING Price: $9.99 |
| 12 | 735312810 | RETAINING RING SGH 28 Price: $3.99 |
| 12 | SG486311 | TUBE-METAL, HEAD BUMPER Price: $18.73 |
| 13 | SG449126-03 | POST-SPRING Price: $30.77 |
| 14 | 323-12 | SCREW-HH Price: $1.14 |
| 14 | 537352901 | CLUTCH DRUM Price: $29.99 |
| 15 | 325-6 | SCREW-HH Price: $1.42 |
| 15 | 503200320 | SCREW Price: $3.99 |
| 16 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 16 | 537418101 | SCREW CLUTCH Price: $3.99 |
| 17 | 537415701 | WASHER Price: $4.99 |
| 18 | 537427201 | SPRING Price: $5.99 |
| 19 | 537340401 | CLUTCH CPL Price: $24.99 |
| 20 | 537046802 | WASHER This part replaces 537046801. Price: $4.99 |
