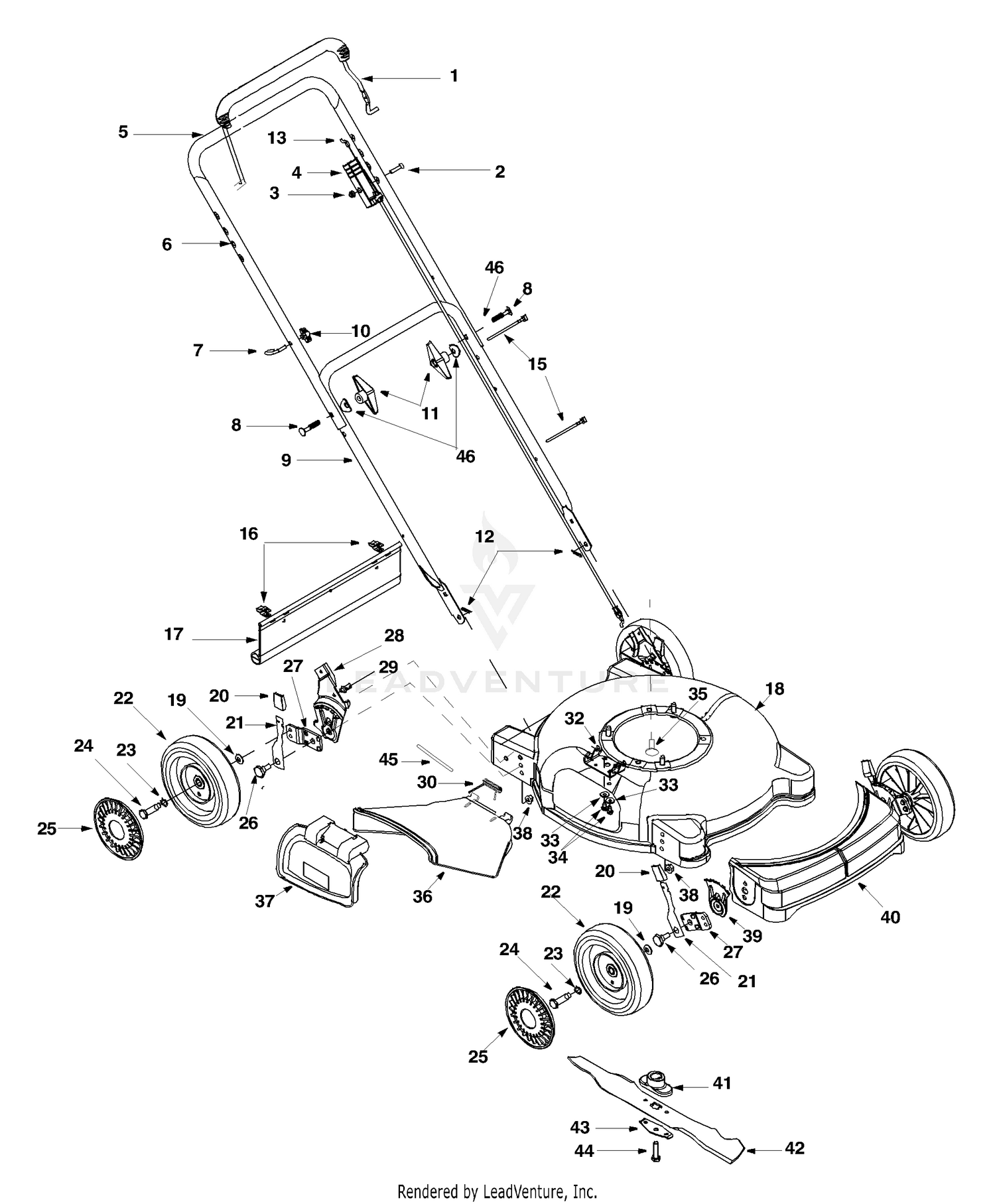

| Ref | Part Number | Description |
|---|
| 1 |
747-0824B-0637 |
Std. Control Handle This part replaces 647-0004. Price: $57.85 |
| 2 |
710-1270 |
SCREW 1/4-20 x 1.310 Not Available Price: |
| 3 |
712-0324 |
Hex Lock Nut Price: $3.38 |
| 4 |
746-0883 |
Control Housing Price: $15.66 |
| 5 |
720-0295 |
Foam Grip Price: $29.03 |
| 6 |
749-0705 |
UPPER HANDLE Not Available Price: |
| 7 |
710-1205 |
Rope Guide Price: $3.53 |
| 8 |
710-1174 |
Carriage Bolt Price: $6.28 |
| 9 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928. Price: $29.67 |
| 10 |
720-0279 |
Wing Nut Price: $3.93 |
| 11 |
720-0284 |
Hand Knob Price: $4.08 |
| 12 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 13 |
946-0554 |
Control Cable: 40.5" This part replaces 746-0554. Price: $19.73 |
| 16 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 17 |
731-0872B |
Rear Flap Not Available This part replaces 731-0872A. Price: |
| 19 |
736-0105 |
Bell Washer Price: $3.96 |
| 20 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 21 |
94832 |
Spring Lever This part replaces 732-0404. Price: $9.48 |
| 22 |
753-08093 |
Wheels - Front This part replaces 734-2004A. Price: $39.95 |
| 23 |
936-0504 |
WAVE WASHER This part replaces 736-0504. Price: $3.90 |
| 24 |
738-0102 |
Axle Bolt Price: $9.22 |
| 25 |
731-0981C |
Hubcap, 8" This part replaces 731-0981A. Price: $9.24 |
| 26 |
738-0507B |
Shoulder Bolt Price: $3.86 |
| 27 |
15262B |
Pivot Bar Price: $13.59 |
| 28 |
987-02106A |
HANDLE BRACKET ASSEMBLY (RH) Not Available This part replaces 682-3024. Price: |
| 29 |
738-0585 |
Stake Bolt Price: Call Us |
| 30 |
932-0731 |
Torsion Spring This part replaces 732-0731. Price: $9.09 |
| 32 |
782-7006 |
MOUNTING BRACKET Not Available Price: |
| 33 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 34 |
710-0599 |
Hex Washer Hd. TT Screw Price: $3.86 |
| 35 |
710-0654A |
TT Sems Screw Price: $3.75 |
| 36 |
731-1409B |
Side Discharge Chute This part replaces 731-1409. Price: $24.80 |
| 37 |
682-7002 |
MULCH PLUG ASSEMBLY Not Available Price: |
| 38 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 39 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 40 |
931-1949B |
FRONT DECK COVER Not Available This part replaces 731-1949. Price: |
| 41 |
748-0376E |
Blade Adapter This part replaces 748-0376C. Price: $19.13 |
| 43 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524A. Price: $5.34 |
| 44 |
710-1044 |
Hex Bolt Price: $3.48 |
| 45 |
747-0710A |
HINGE PIN This part replaces 747-0710. Price: $3.86 |
| 46 |
736-0451 |
Saddle Washer Price: $3.75 |
