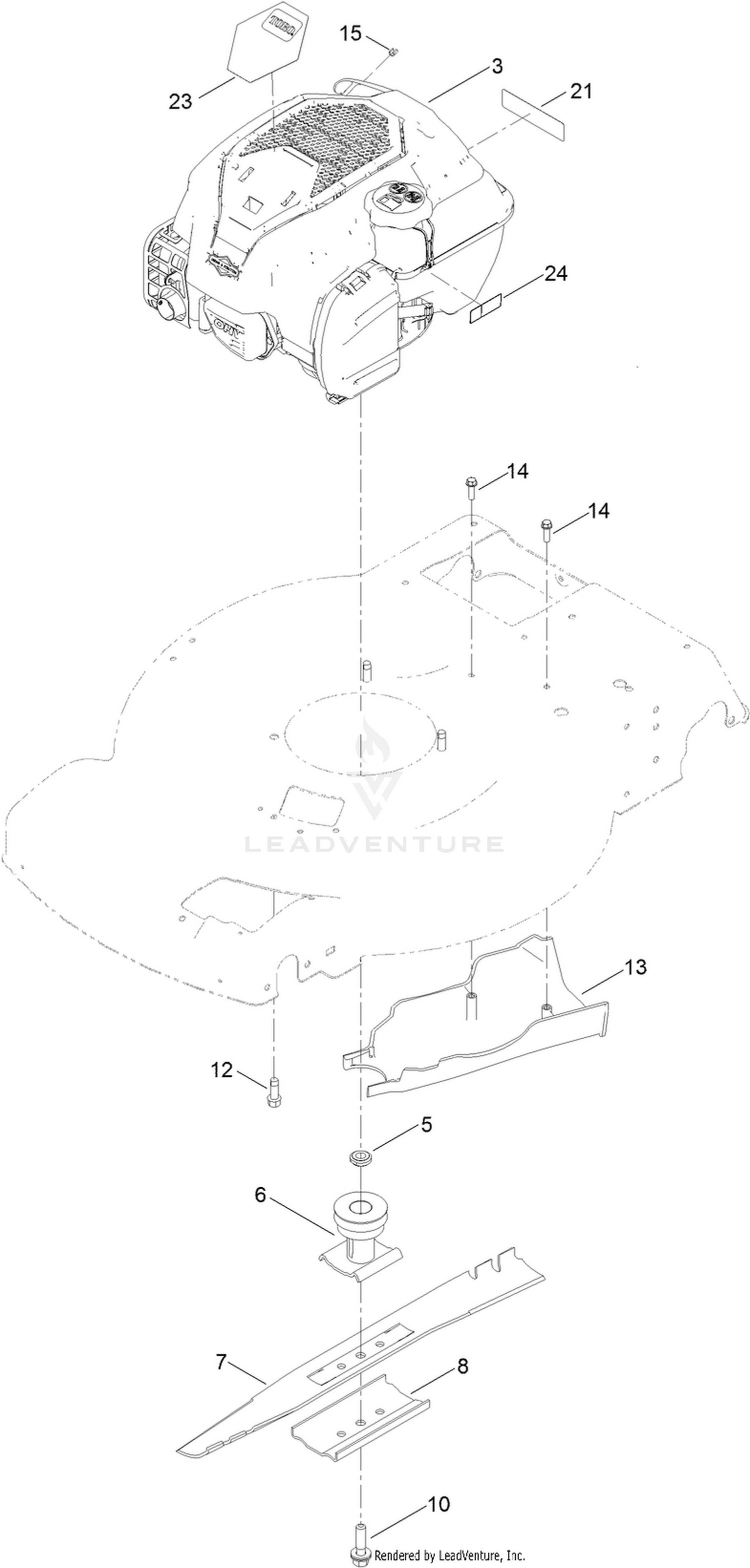

Engine and Blade Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 106-3999 | SPACER-DRIVER Price: $2.22 |
| 6 | 130-6705 | DRIVER-BLADE Price: $26.31 |
| 7 | 131-4547-03 | BLADE-22 INCH Price: $21.88 |
| 8 | 108-3766-03 | SUPPORT-BLADE Price: $7.65 |
| 10 | 125-2466 | BOLT-BLADE Price: $2.20 |
| 12 | 95-1726 | SCREW-TAPTITE Price: $1.79 |
| 13 | 130-6709 | COVER-BELT, REAR Price: $10.34 |
| 14 | 46-8091 | SCREW-HWH Price: $3.59 |
| 15 | 2210-316 | STOP-ROPE Price: $4.41 |
| 21 | 133-8062 | DECAL-ARRESTOR, SPARK Price: $2.39 |
| 23 | 137-4816 | DECAL- B&S SHROUD Price: $3.08 |
