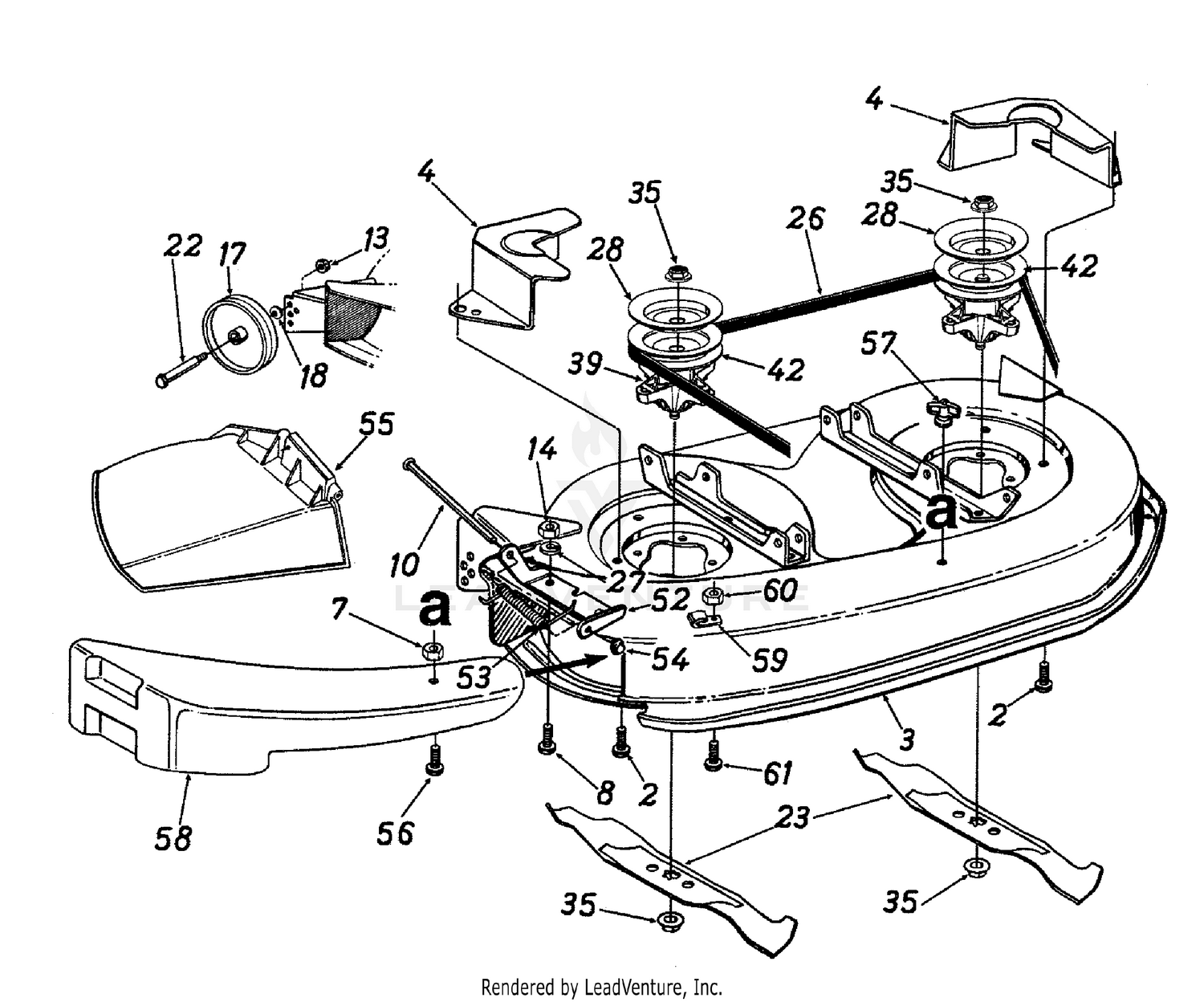

| Ref | Part Number | Description |
|---|
| 2 |
710-1260A |
Hex Wash. Hd. Scr. 5/16-18 x .75" This part replaces 7101260. Price: $3.34 |
| 4 |
783-0149B |
Belt Guard This part replaces 783-0149. Price: $33.00 |
| 8 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 10 |
911-0792 |
Hinge Pin This part replaces 7110792. Price: $4.05 |
| 13 |
712-0181 |
Hex Top L-Nut 3/8-16 Thd. Price: $3.90 |
| 14 |
712-3006 |
HEX NUT Price: $4.05 |
| 17 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 18 |
736-0105 |
Bell-Wash. .40" I.D. x .88" O.D. Price: $3.96 |
| 22 |
938-0373 |
Shld. Bolt .498" Dia. x 1.53" This part replaces 738-0373. Price: $8.45 |
| 23 |
942-0616A |
Blade, 21.23", Star 3-in-1 This part replaces 7420616. Price: $29.15 |
| 26 |
954-0371A |
Upper V-belt This part replaces 754-0371A. Price: $96.40 |
| 27 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 28 |
783-0342A |
BRAKE DISC BRACKET Not Available This part replaces 783-0342. Price: |
| 35 |
712-0417A |
HEX NUT Price: $6.50 |
| 42 |
756-0980 |
PULLEY 5.75" DIA Not Available Price: |
| 52 |
703-1693A |
Hinge Mtg. Brkt. This part replaces 7031693. Price: $20.29 |
| 53 |
732-0602A |
Torsion Spring Not Available This part replaces 7320602. Price: |
| 54 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 59 |
96606 |
Retainer Hook Brkt. This part replaces 16606. Price: $6.71 |
| 60 |
712-0271 |
Hex Sems Nut 1/4-20 Thd. Price: $3.78 |
