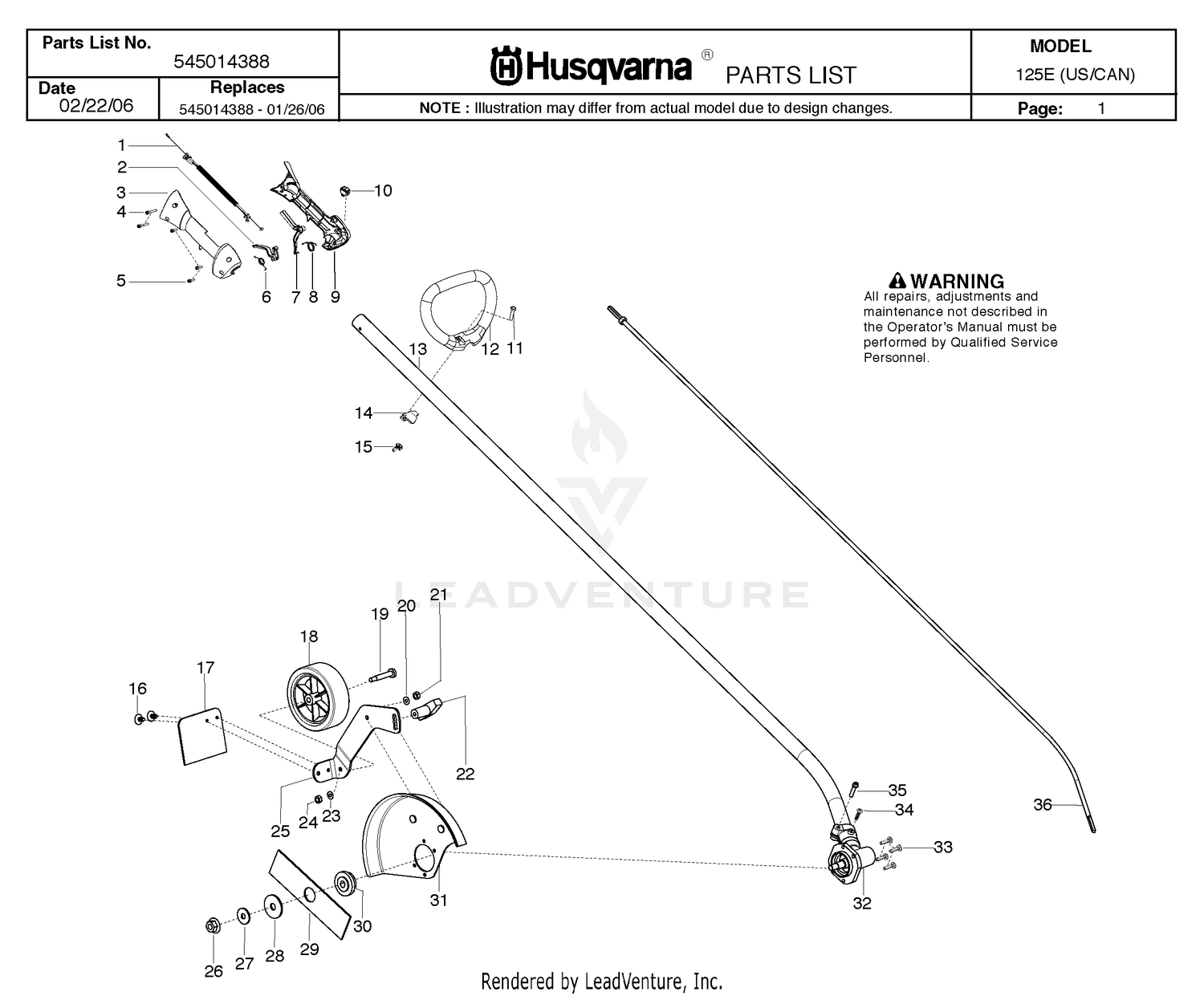

SHAFT & HANDLE
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 545125301 | ASSY-CABLE WIRE HARNESS This part replaces 530150561. Price: $19.99 |
| 2 | 545066001 | TRIGGER THROTTLE Price: $5.99 |
| 3 | 545062001 | HOUSING-THROTTLE RH Price: $8.99 |
| 4 | 530016448 | SCREW Price: $2.99 |
| 5 | 530016449 | SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 6 | 530016454 | SPRING TRIGGER Price: $4.99 |
| 7 | 530059804 | THROTTLE LOCKOUT Price: $4.99 |
| 8 | 545045601 | SPRING LOCKOUT Price: $4.99 |
| 9 | 545067001 | HSG THROTTLE LH Price: $9.99 |
| 10 | 545049301 | KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 11 | 530015820 | BOLT, TYPE 2 Price: $3.99 |
| 12 | 545042201 | HANDLE Price: $14.99 |
| 13 | 545043801 | KIT-DRIVESHAFT Price: $18.99 |
| 14 | 530059185 | CLAMP ASSIST HANDLE Price: $2.99 |
| 15 | 530091373 | NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 16 | 530053012 | FASTENER MUD FLAP Price: $2.99 |
| 17 | 530071251 | KIT MUD FLAP Price: $5.99 |
| 18 | 530095125 | WHEEL-4"(FRONT)(RUBBER) Price: $6.99 |
| 19 | 530015981 | BOLT-SHOULDER AXLE Price: $3.99 |
| 20 | 530092062 | WASHER Price: $2.99 |
| 21 | 530015515 | LOCKNUT Price: $2.99 |
| 22 | 530092059 | KNOB Price: $4.99 |
| 23 | 530092062 | WASHER Price: $2.99 |
| 25 | 530053009 | WHEEL BRKT ADJ Price: $11.99 |
| 26 | 530015793 | NUT-FLANGE (LH) Price: $4.99 |
| 27 | 530016240 | WASHER BELLVILLE Price: $3.99 |
| 28 | 530015792 | WASHER-FLAT. Price: $4.99 |
| 29 | 530053007 | BLADE Price: $6.99 |
| 30 | 530054623 | DUST CUP Price: $8.99 |
| 31 | 545044101 | KIT - EDGER GUARD Price: $15.99 |
| 32 | 545006005 | KIT GEARBOX EDGER HUSQ Price: $49.99 |
| 33 | 530016312 | SCR 10-24 MS LDK PAN PH Price: $2.99 |
| 34 | 530015775 | SCREW 8-16 X 9/16 (PLAS Price: $2.99 |
| 35 | 530016014 | SCREW - CARB. ADAPTOR Price: $2.99 |
| 36 | 545007507 | FLEXSHAFT 57" Price: $24.99 |
