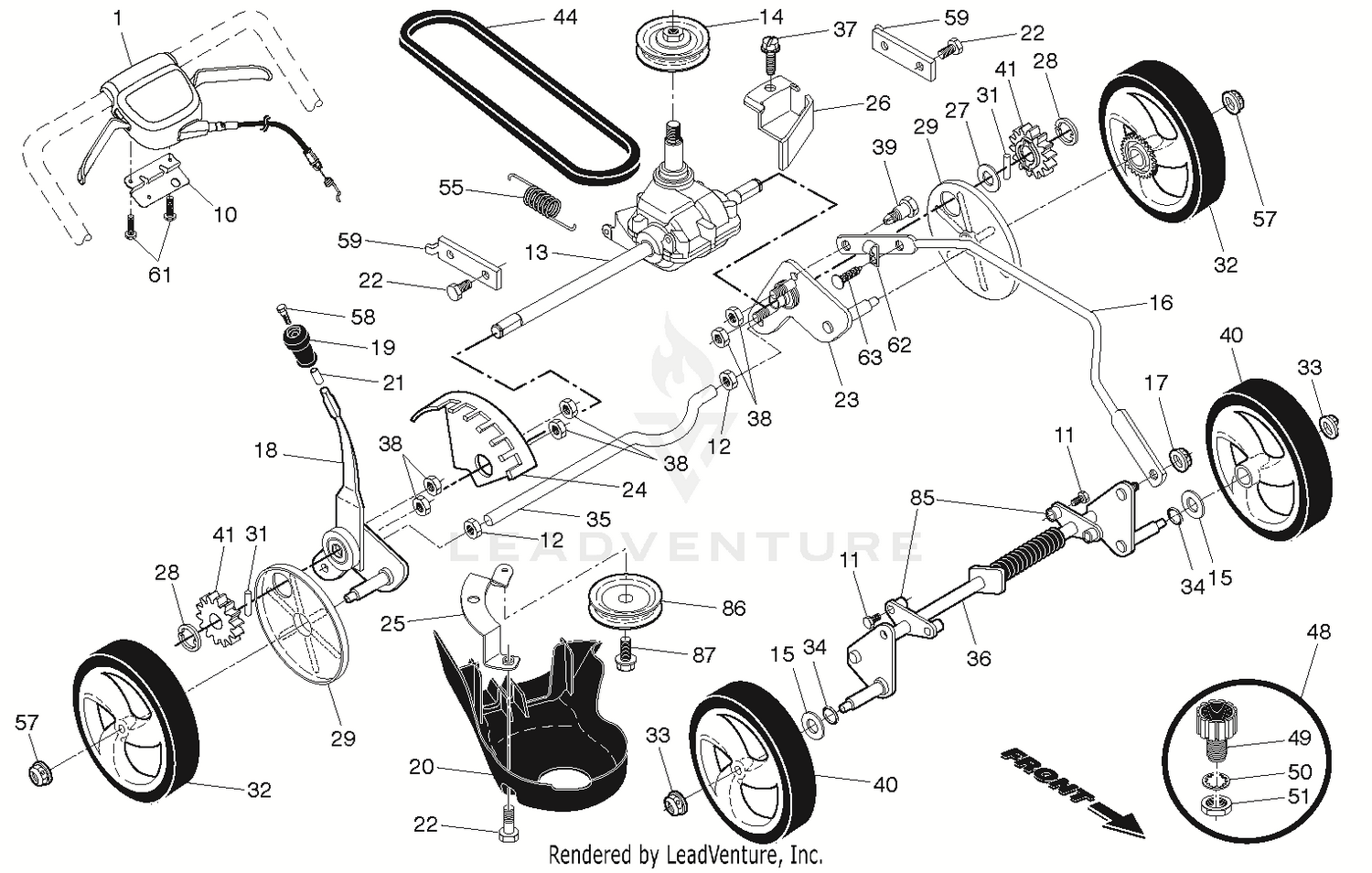

| Ref | Part Number | Description |
|---|
| 1 |
21549138 |
DRIVE CONTROL ASSEMBLY Price: $68.95 |
| 10 |
21549099 |
MOUNTING BRCKT, DRIVE CONTROL Price: $3.95 |
| 11 |
21546912 |
Screw, Rear Baffle Price: $5.95 |
| 12 |
21549077 |
NUT, HEX Price: $5.45 |
| 13 |
21549139 |
GEARCASE ASSEMBLY, COMPLETE Price: $102.95 |
| 14 |
21549102 |
PULLEY, DRIVE Price: $10.45 |
| 15 |
21546870 |
Washer, Flat Price: $4.95 |
| 16 |
21549103 |
ROD, CONNECTING Price: $26.95 |
| 17 |
21546908 |
Nut, Hex Price: $6.95 |
| 18 |
21549104 |
KIT, SELECTOR ASSEMBLY Price: $55.95 |
| 19 |
21549105 |
KNOB, WHEEL ADJUSTER Price: $5.45 |
| 20 |
21549106 |
DEBRIS SHIELD Price: $28.55 |
| 21 |
21549107 |
ANCHOR Price: $11.95 |
| 22 |
21546179 |
BOLT.5/16-18HEX.WHS.HD.LCKSERR Price: $8.95 |
| 23 |
21549108 |
WHEEL AXLE ASSEMBLY, LH Price: $29.95 |
| 24 |
21549109 |
BRACKET, HEIGHT ADJUSTMENT Price: Call Us |
| 25 |
21549110 |
MOUNTING BRCKT, DEBRIS SHIELD Price: $14.95 |
| 26 |
21549140 |
BELT KEEPER Price: Call Us |
| 27 |
21547090 |
Washer 17/32 x 3/4 x 16 Ga. Price: $5.95 |
| 28 |
21547525 |
E-RING Price: $4.90 |
| 29 |
21549111 |
COVER, DUST, WHEEL Price: $3.95 |
| 31 |
21547485 |
Pawl, Drive Price: $5.95 |
| 32 |
21549112 |
WHEEL & TIRE ASSEMBLY, REAR Price: $22.00 |
| 33 |
06500905 |
NUT-LK-TOP-FLG .375-16 GG ZCC This part replaces 21546790. Price: $1.45 |
| 34 |
21546886 |
O-Ring Price: $6.45 |
| 35 |
21549113 |
AXLE, REAR Price: $45.95 |
| 36 |
21549114 |
AXLE, FRONT Price: $39.95 |
| 37 |
21548414 |
SCREW, HI-LO THREAD #12 X 5/8 Price: $5.45 |
| 38 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 This part replaces 21548415. Price: $0.45 |
| 39 |
21549115 |
BOLT Price: $6.45 |
| 40 |
21549116 |
WHEEL & TIRE ASSEMBLY, FRONT Price: $61.45 |
| 41 |
21549117 |
PINION Price: $6.95 |
| 44 |
21549118 |
BELT, DRIVE Price: $24.95 |
| 48 |
21548431 |
KIT, WATER WASHOUT ASSEMBLY Price: $19.90 |
| 49 |
21548431 |
KIT, WATER WASHOUT ASSEMBLY This part replaces 21548422. Price: $19.90 |
| 50 |
21548420 |
WASHER, LOCK, INTERNAL TOOTH Price: $3.25 |
| 51 |
21548421 |
LOCKNUT, HEX, WITH O-RING Price: $4.35 |
| 55 |
21549119 |
SPRING, TENSION Price: $8.75 |
| 57 |
21546897 |
Flanged Locknut, Hex Price: $5.45 |
| 58 |
21549120 |
BOLT, SHOULDER Price: $3.95 |
| 59 |
21549121 |
SUPPORT BRACKET Price: $5.45 |
| 61 |
21549122 |
SCREW Price: $6.00 |
| 62 |
21546887 |
Clip, Cable Price: $4.95 |
| 63 |
21548436 |
FASTENER, PUSH Price: $3.95 |
| 85 |
21549123 |
SUPPORT BRACKET, FRONT AXLE Price: $35.95 |
| 86 |
21549124 |
PULLEY, IDLER Price: $20.45 |
