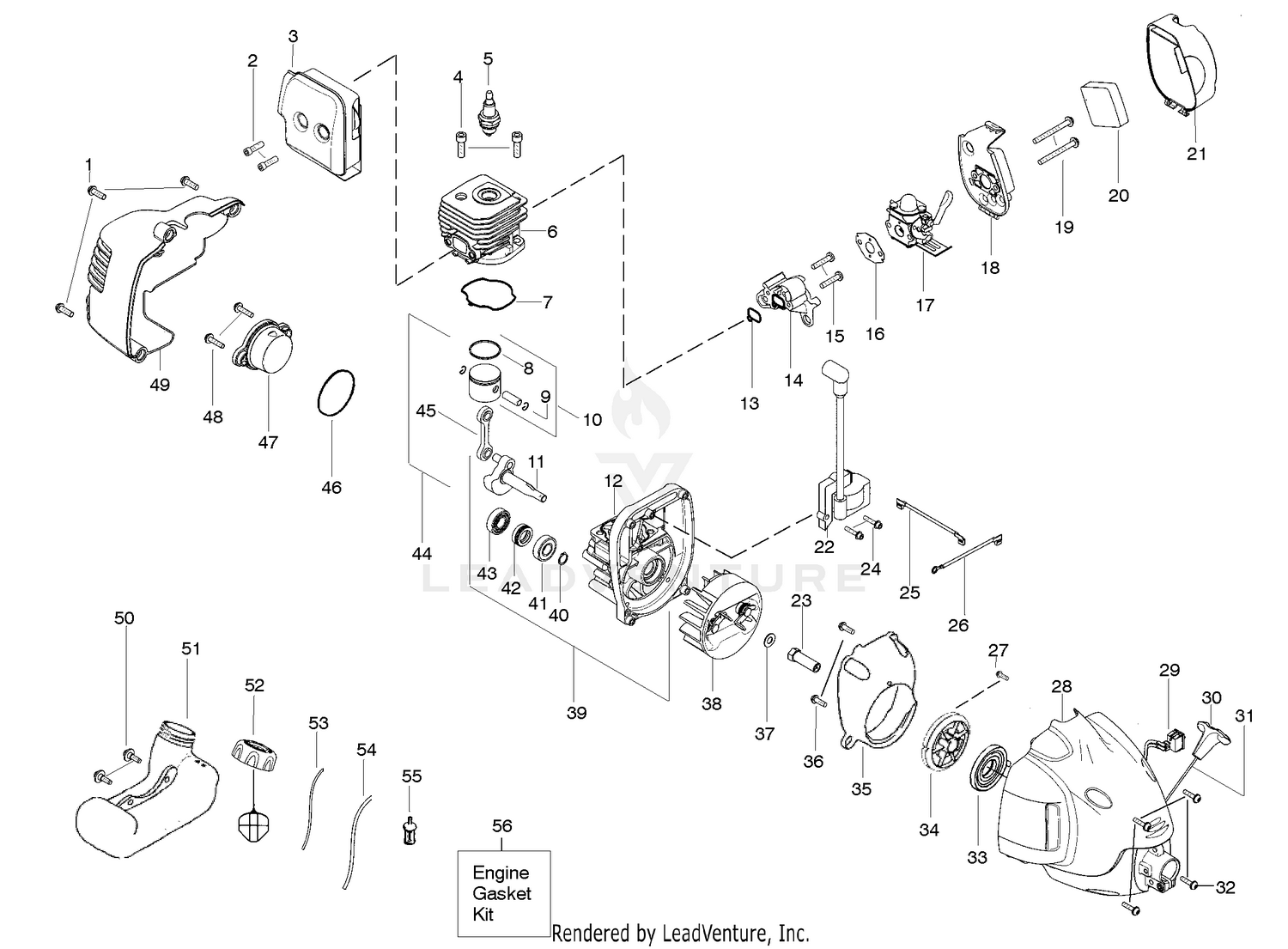

| Ref | Part Number | Description |
|---|
| 1 |
530015880 |
Screw Price: $1.99 |
| 2 |
530058982 |
Bolt-Muffler Price: $1.99 |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 5 |
952030249 |
Spark Plug (RCJ 6Y) Price: Call Us |
| 6 |
530012541 |
Cylinder Price: $11.99 |
| 7 |
530071750 |
Seal-Cylinder (kit) Price: $8.99 |
| 8 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 9 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 010 |
100-9150 |
CRANKCASE Price: $3,894.62 |
| 11 |
530012555 |
Assy-Crankshaft Price: $17.99 |
| 13 |
530071750 |
Seal-Cyl/Carb.(kit) Price: $8.99 |
| 14 |
530057547 |
Adapter-Carb. Price: $7.99 |
| 15 |
530016309 |
Screw Price: $1.99 |
| 16 |
530071750 |
Gasket-Carb. (kit) Price: $8.99 |
| 17 |
530071752 |
Kit-Carb. Zama (C1U-W18) Price: $29.99 |
| 18 |
530057544 |
Air Box Price: $6.99 |
| 19 |
530016429 |
Screw Price: $1.99 |
| 020 |
98-7486 |
PLUG Price: $1.11 |
| 20 |
530036575 |
Foam-Air Filter Price: $1.49 |
| 21 |
530058740 |
Cover-Air Box Price: $5.99 |
| 22 |
545081826 |
KIT MODULE W/O INTERRUPT This part replaces 530039234. Price: $31.99 |
| 23 |
530027953 |
Coupling-Drive Price: $1.99 |
| 24 |
530016357 |
Screw Price: $1.99 |
| 25 |
530014663 |
Assy-Leadwire Price: $5.99 |
| 26 |
530014662 |
Assy-Ground Wire Price: $4.99 |
| 27 |
530016391 |
Screw Price: $1.99 |
| 28 |
530071735 |
Assy.-Fan Hsg Price: $15.99 |
| 29 |
530071356 |
Kit-Switch Price: $4.99 |
| 030 |
98-7487 |
PLUG Price: $3.18 |
| 30 |
530058742 |
Handle-Starter Price: $2.99 |
| 31 |
530071798 |
Kit - Rope Price: $3.99 |
| 32 |
530016386 |
Screw This part replaces 530015810. Price: $5.99 |
| 33 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 34 |
545081852 |
Kit - Starter Pulley This part replaces 530071797. Price: $9.99 |
| 35 |
530057548 |
Baffle Price: $6.99 |
| 36 |
530015880 |
Screw Price: $1.99 |
| 37 |
530015828 |
Washer-Flat Price: $1.99 |
| 38 |
530054115 |
Assy-Flywheel Price: $27.99 |
| 040 |
98-7488 |
PLUG Price: $2.74 |
| 40 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 41 |
530055728 |
Outer Bearing Price: $6.99 |
| 42 |
530019264 |
Seal Price: $2.99 |
| 43 |
738210101 |
BEARING BALL 6001 This part replaces 530032125. Price: $8.99 |
| 45 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 46 |
530071750 |
O-Ring-C'case (kit) Price: $8.99 |
| 48 |
530016386 |
Screw Price: $5.99 |
| 49 |
530058737 |
Shroud-Rear Price: $7.99 |
| 050 |
98-9379 |
PLUG-EXPANSION This part replaces 98-7489. Price: $0.76 |
| 50 |
530016431 |
Retainer-Tank Price: $3.99 |
| 52 |
530058743 |
Assy-Fuel Cap Price: $7.99 |
| 53 |
530069247 |
Kit-Fuel Line (Small) Price: $3.69 |
| 54 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 55 |
530095646 |
Assy-Fuel Pickup Price: $2.69 |
| 060 |
98-7490 |
PLUG Price: $0.60 |
| 070 |
98-7500 |
CAP-SEALING Price: $7.89 |
| 080 |
98-7501 |
CAP-SEALING Price: $4.84 |
| 090 |
98-7502 |
PIN-STRAIGHT Price: $0.24 |
| 100 |
98-7503 |
PIN-STRAIGHT Price: $0.42 |
| 110 |
98-7504 |
PIN-STRAIGHT Price: $0.72 |
| 120 |
98-7505 |
PIN-STRAIGHT Price: $0.66 |
| 130 |
98-7506 |
PIN-PIPE Price: $3.62 |
| 140 |
98-7509 |
O-RING Price: $4.31 |
| 150 |
100-9153 |
PIPE-RETURN, WATER Price: $6.85 |
