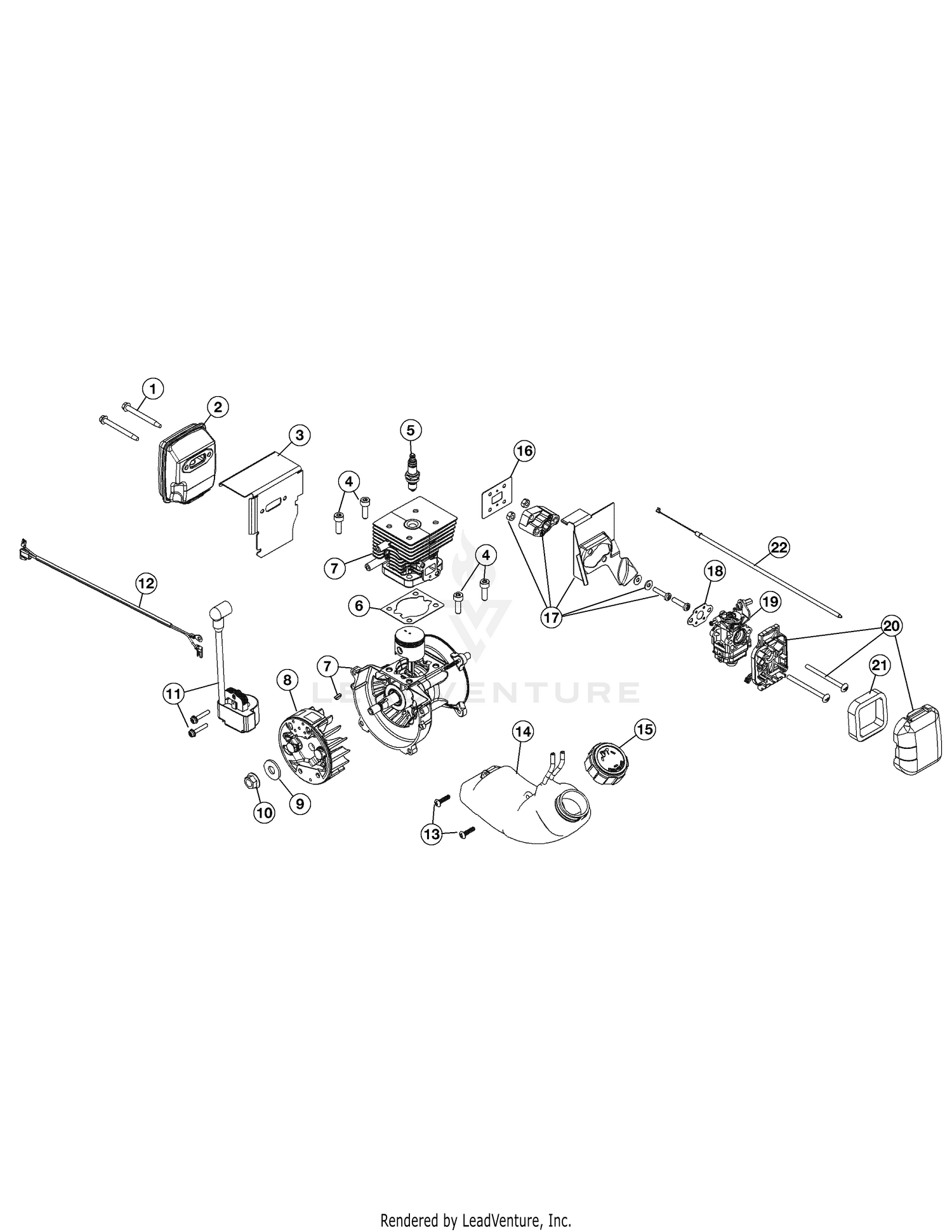

Engine Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710-04188A | Muffler Screws Price: $3.63 |
| 3 | 753-05946 | Muffler Gasket Price: $8.69 |
| 4 | 710-04715 | Screw Price: $6.01 |
| 5 | 794-00082 | Spark Plug This part replaces 794-00042. Price: $6.35 |
| 6 | 753-05704 | CYLINDER GASKET Not Available Price: |
| 8 | 753-05948 | FLYWHEEL ASSEMBLY Not Available Price: |
| 9 | 736-04107 | Washer Price: $3.86 |
| 10 | 712-04137 | Nut Price: $6.07 |
| 11 | 753-04109 | MODULE ASSEMBLY PULSE CARBURETOR Not Available Price: |
| 12 | 753-05949 | Lead Wire Price: $4.99 |
| 13 | 710-04194 | Screw Price: $3.66 |
| 15 | 791-182529 | Fuel Cap Price: $18.68 |
| 16 | 753-05702 | INSULATOR GASKET Not Available Price: |
| 18 | 791-181709 | Carburetor Gasket Price: $4.30 |
| 21 | 791-181757 | Air Filter Price: $3.59 |
