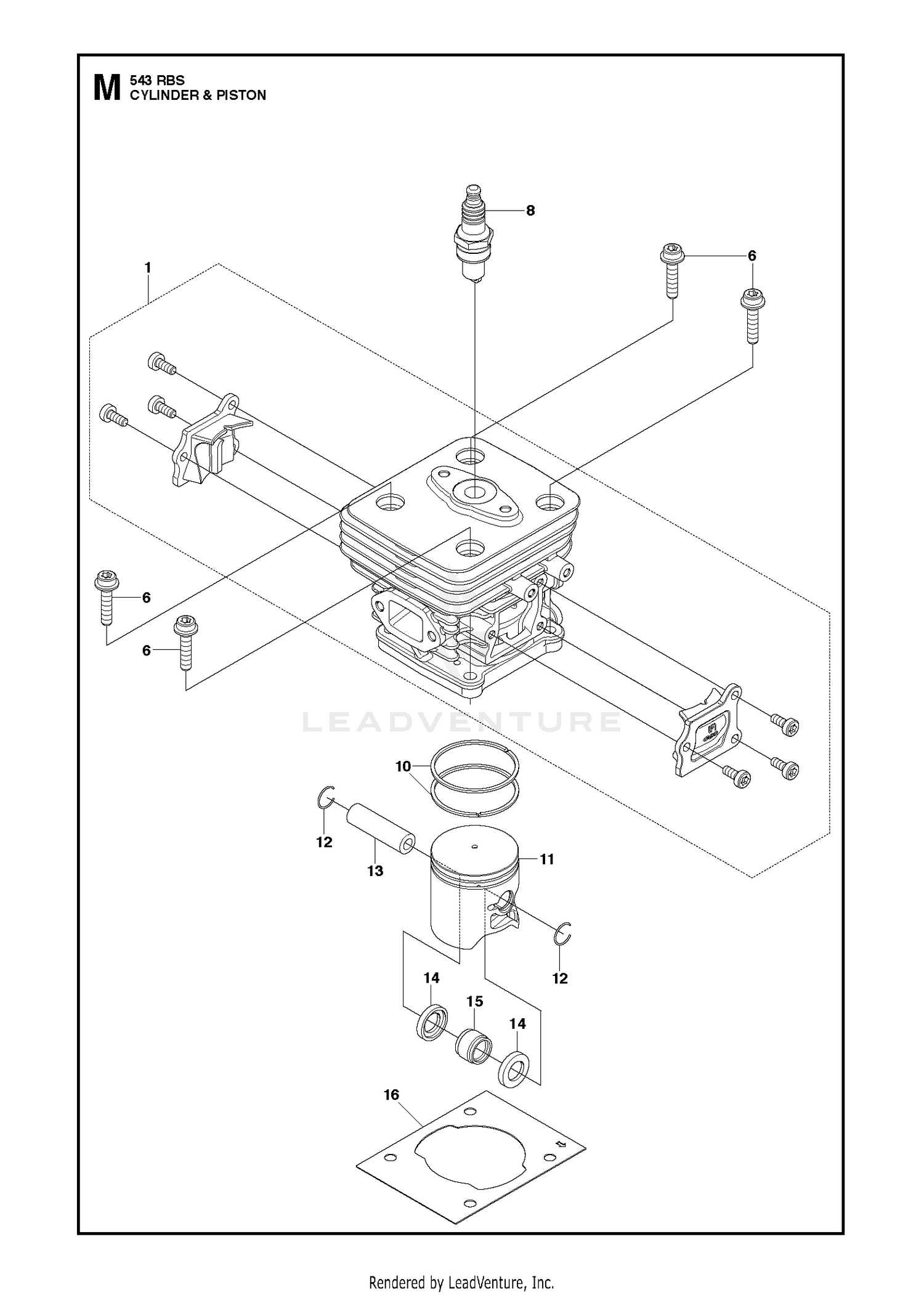

CYLINDER PISTON
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22-8330 | PLUG Price: $64.59 |
| 1 | 577409502 | CYLINDER COMP Price: $69.99 |
| 2 | 237-42 | O-RING Price: $2.78 |
| 3 | 22-8340 | SPRING Price: $19.09 |
| 4 | 22-8350 | BALL Price: $12.28 |
| 5 | 22-8370 | SEAT-VALVE Price: $88.05 |
| 6 | 22-8360 | PIN Price: $43.02 |
| 6 | 506745201 | BOLT Price: $4.99 |
| 8 | 22-8420 | SPOOL Price: $437.22 |
| 8 | 528074001 | SPARK PLUG CMR7H-10 Price: $6.99 |
| 9 | 22-8500 | O-RING Price: $18.87 |
| 10 | 22-8380 | RETAINER Price: $17.86 |
| 10 | 510918001 | RING PISTON Price: $5.99 |
| 11 | 22-8410 | SPRING Price: $17.61 |
| 11 | 577639801 | PISTON Price: $49.99 |
| 12 | 23-3030 | SPACER Price: $33.93 |
| 12 | 516283001 | RING Price: $2.99 |
| 13 | 22-8480 | RING-SNAP Price: $49.87 |
| 13 | 521522701 | PIN Price: $4.99 |
| 15 | 505297301 | ROLLER BEARING Price: $6.99 |
| 16 | 521622001 | GASKET TR Price: $3.99 |
