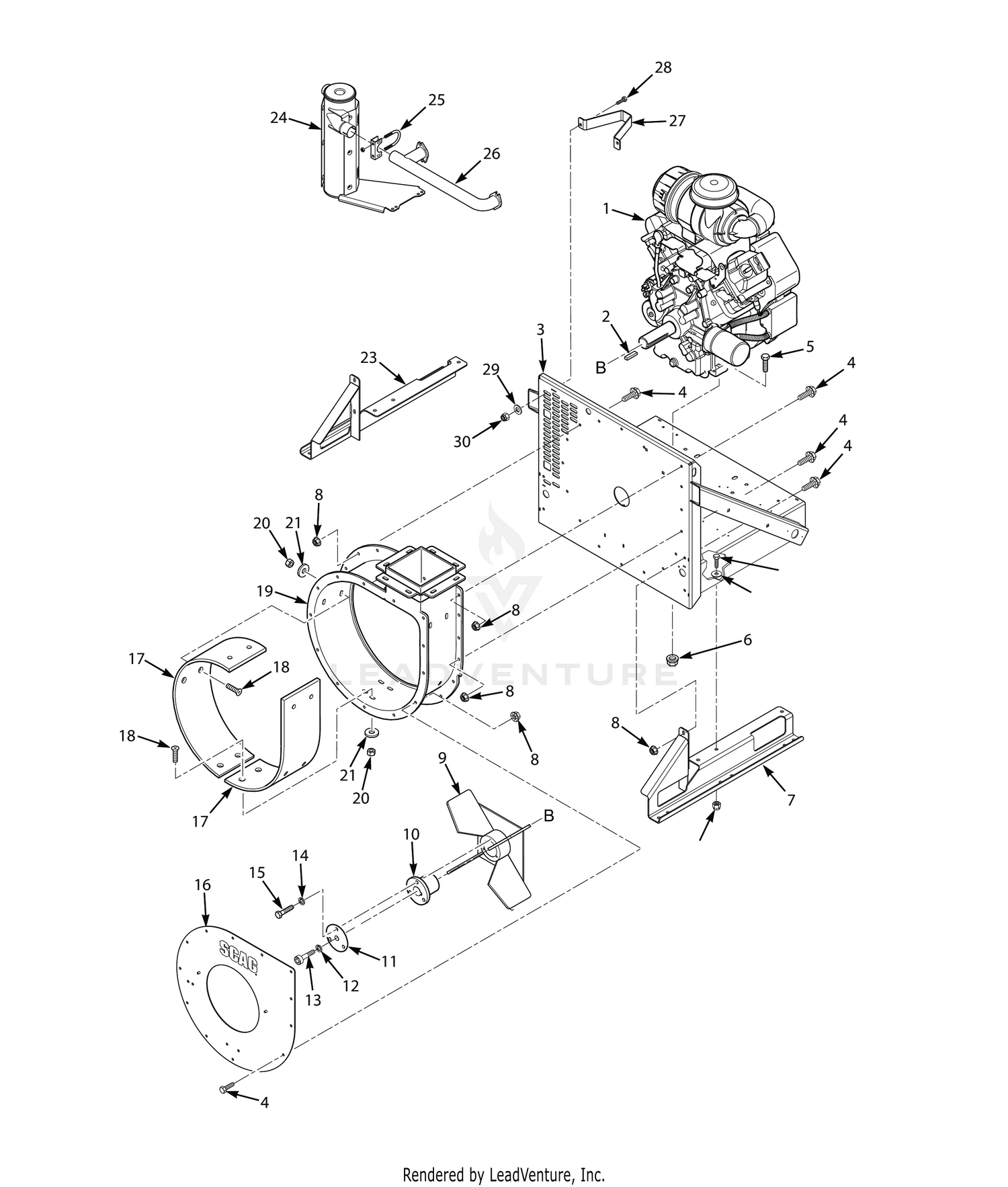

| Ref | Part Number | Description |
|---|
| 2 |
04063-32 |
Key, 3/8 x 3/8 x 3-1/2" Price: Call Us |
| 3 |
462651 |
Frame Weldment w / Decals Price: Call Us |
| 4 |
04017-26 |
Bolt, Hex Head Serrated Flange 3/8-16 x 3/4" Price: Call Us |
| 5 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 5 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI) Price: Call Us |
| 6 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 7 |
452550 |
Mounting Bracket Weldment, RH Skid Price: Call Us |
| 8 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 9 |
452455 |
Impeller Weldment, TL20W Price: Call Us |
| 10 |
484820 |
Hub, Tapered Locking Q2 x 1-7/16" Price: Call Us |
| 11 |
426138 |
Cover Plate, Hub Taper - TL20W Price: Call Us |
| 12 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 13 |
04015-22 |
Socket Head Cap Screw, 5/8-18 x 1-3/4" Price: Call Us |
| 14 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 15 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 16 |
463094 |
Cover, Housing - TLS20W w/Decal Price: Call Us |
| 17 |
462583 |
Wearliner Kit w/ Hardware Price: Call Us |
| 18 |
04014-07 |
Capscrew, 3/8-16 x 1-1/4" Price: Call Us |
| 19 |
462637 |
Housing Weldment w / Decals Price: Call Us |
| 20 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 21 |
04041-04 |
Flatwasher, 1/2 (.5/6 x .938 x .105) Price: Call Us |
| 22 |
452501 |
Weldment, Exhaust Deflector - 29hp Briggs & Stratton Price: Call Us |
| 23 |
452549 |
Mounting Bracket Weldment, LH Skid Price: Call Us |
| 24 |
485385 |
Muffler, 29hp Briggs & Stratton Price: Call Us |
| 25 |
48633 |
Clamp, Muffler (Clamp Only) Price: Call Us |
| 26 |
485004 |
Exhaust Manifold, 29hp Briggs & Stratton Price: Call Us |
| 27 |
426865 |
Muffler Guard Price: Call Us |
| 28 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 29 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
