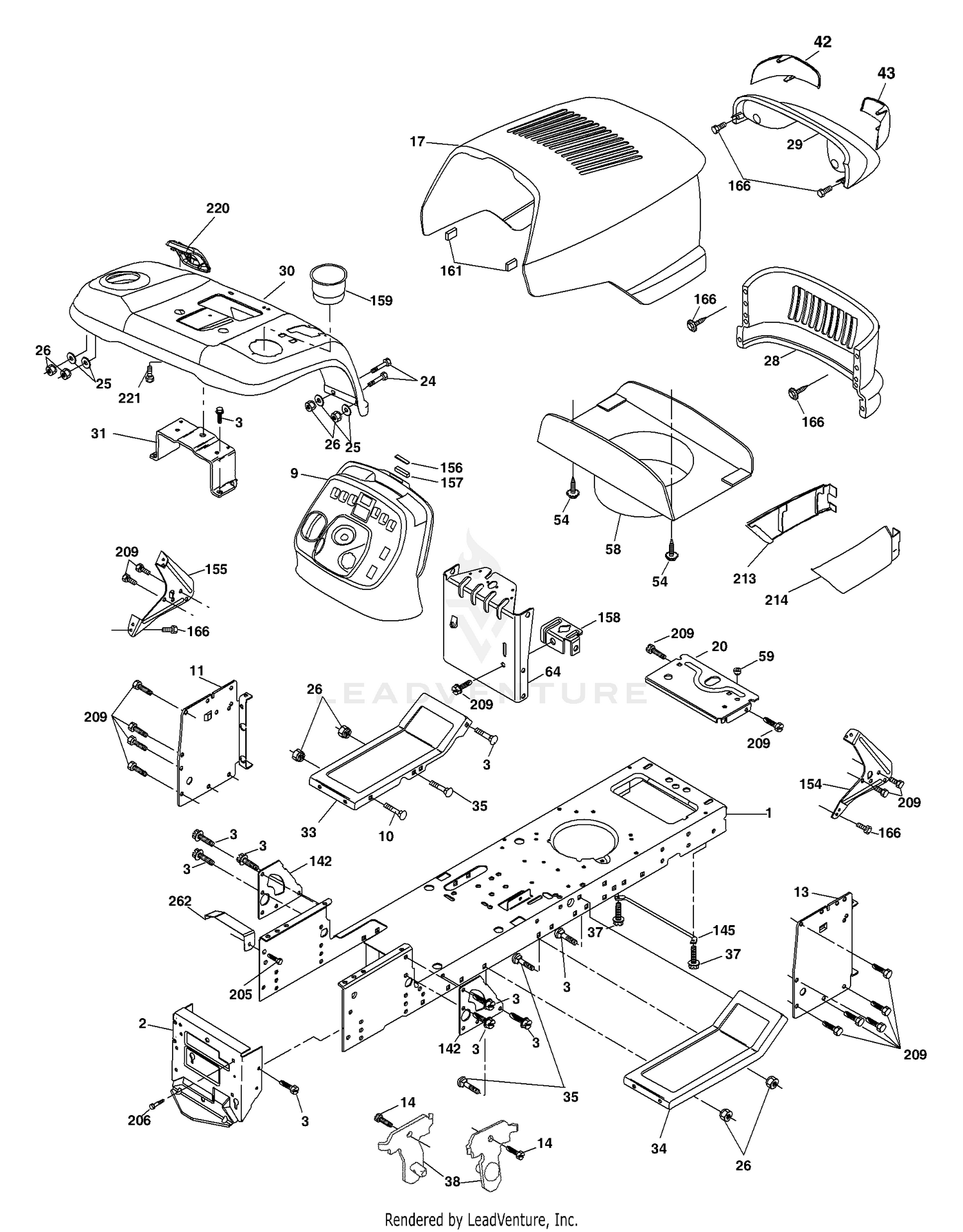

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 3 |
17060612 |
Screw 3/8-16x3/4 Price: Call Us |
| 3 |
340-6 |
FITTING-STRAIGHT Price: $18.79 |
| 4 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 5 |
10-6870-03 |
HUB-WHEEL Price: $150.01 |
| 6 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 7 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 8 |
75-9990 |
HYD MOTOR ASM Price: $831.33 |
| 9 |
163976X428 |
Dash Price: Call Us |
| 9 |
93-6782-01 |
FORK-WHEEL, REAR Price: $916.89 |
| 10 |
3274-93 |
SCREW-HSH Price: $3.39 |
| 11 |
167203 |
Panel Dash Lh Price: Call Us |
| 11 |
3220-3 |
NUT-HJ Price: $0.28 |
| 13 |
178298 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 14 |
322-9 |
SCREW-HH Price: $3.09 |
| 15 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 16 |
75-7730 |
WASHER-THRUST Price: $2.88 |
| 17 |
175259X603 |
Hood Price: Call Us |
| 17 |
325-6 |
SCREW-HH Price: $1.42 |
| 18 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
162026 |
Plate Battery Price: Call Us |
| 20 |
69-9760 |
COVERPLATE Price: $5.38 |
| 21 |
56-7976 |
CLAMP-TUBE Price: $2.44 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 28 |
175289X428 |
Grille Price: Call Us |
| 29 |
179763 |
Light Box Asm W/Lens Price: Call Us |
| 30 |
179775X603 |
Fender Price: Call Us |
| 31 |
183569 |
Bracket Fender Price: Call Us |
| 33 |
179716X603 |
Footrest LH Price: Call Us |
| 34 |
179717X603 |
Footrest RH Price: Call Us |
| 35 |
72110606 |
Bolt RDHD SHT SQNK 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket, Asm. Pivot Mower Rear Price: Call Us |
| 42 |
161841 |
Lens LH Price: Call Us |
| 43 |
161842 |
Lens RH Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 58 |
161236 |
Duct Hood Price: Call Us |
| 59 |
177579 |
Bushing Snap Price: Call Us |
| 64 |
174997 |
Dash Lower Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 154 |
161897 |
Bracket Dash Rh Price: Call Us |
| 155 |
161900 |
Bracket Dash Lh Price: Call Us |
| 156 |
163805 |
Striker Plate Price: Call Us |
| 157 |
163806 |
Magnet Stealth Price: Call Us |
| 158 |
162037 |
Bracket Parking Brake Price: Call Us |
| 159 |
179125X428 |
Cupholder Price: Call Us |
| 161 |
164655 |
Extrusion Bumper Price: Call Us |
| 166 |
171875 |
Screw Hw Hd Hi-Lo #13-16 x 3/4 Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 213 |
169848X428 |
Skirt Grille Lh Price: Call Us |
| 214 |
169847X428 |
Skirt Grille Rh Price: Call Us |
| 220 |
179612X428 |
Console Fuel Window Price: Call Us |
