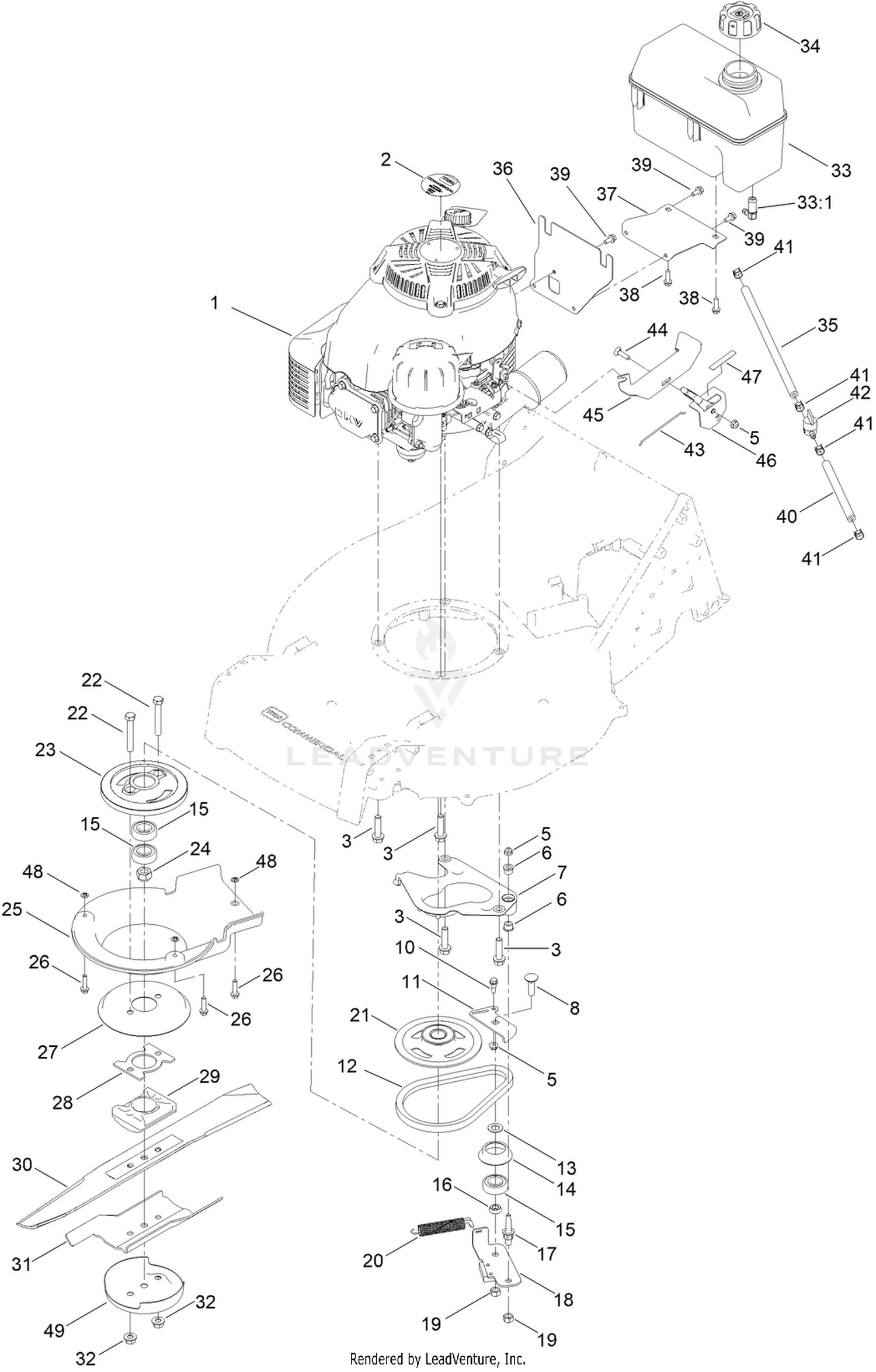

| Ref | Part Number | Description |
|---|
| 2 |
110-0520 |
DECAL Price: $31.99 |
| 3 |
125-1073 |
SCREW-HWH Price: $3.09 |
| 5 |
104-7201 |
NUT-HF Price: $0.69 |
| 6 |
130-2377 |
BUSHING-FLANGE Price: $1.79 |
| 7 |
130-2375 |
PLATE-ANCHOR Price: $45.99 |
| 8 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 10 |
42-3560 |
BOLT-SHOULDER Price: $4.85 |
| 11 |
125-8446 |
PLATE-GUIDE, BBC Price: $8.99 |
| 12 |
110-1790 |
BELT Price: $28.99 |
| 13 |
605256 |
SPACER Price: $1.79 |
| 14 |
138-3217 |
RETAINER-BELT Price: $2.99 |
| 15 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 16 |
107-0758 |
SPACER-BEARING Price: $2.89 |
| 17 |
130-9699 |
BOLT-SHOULDER Price: $6.69 |
| 18 |
125-1063 |
PLATE-BRAKE Price: $21.99 |
| 19 |
603773 |
LOCKNUT This part replaces 125-5069. Price: $2.09 |
| 20 |
108-3792 |
SPRING-TENSION, BRAKE Price: $10.99 |
| 21 |
117-5970 |
PULLEY Price: $34.99 |
| 22 |
3211-42 |
SCREW-HH Price: $4.87 |
| 23 |
126-8108 |
DRUM Price: $52.99 |
| 24 |
108-9342 |
NUT-HEX Price: $3.49 |
| 25 |
125-1006 |
COVER Price: $16.99 |
| 26 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 27 |
138-3225 |
DISK Price: $11.99 |
| 28 |
130-6405-03 |
SPACER-DRIVER, BLADE Price: $10.99 |
| 29 |
107-7487 |
SUPPORT-BLADE Price: $21.99 |
| 30 |
133-8183-03 |
BLADE-21IN, RECYCLING Price: $20.99 |
| 31 |
125-1069-03 |
ACCELERATOR-BLADE Price: $15.99 |
| 32 |
127-6852 |
NUT-FLANGE, LOCK Price: $1.79 |
| 33 |
117-3510 |
TANK-FUEL Price: $90.99 |
| 34 |
93-7198 |
CAP-GAS Price: $14.99 |
| 35 |
109-0297 |
HOSE-FUEL Price: $7.29 |
| 36 |
125-8381-03 |
BRACKET-TANK, MOUNTING Price: $12.99 |
| 37 |
125-8382-03 |
BRACKET-TANK, SUPPORT Price: $10.99 |
| 38 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 39 |
125-8383 |
SCREW-HWH Price: $1.69 |
| 40 |
107-0588 |
HOSE-FUEL Price: $5.67 |
| 41 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 42 |
1-603770 |
VALVE-FUEL Price: $7.79 |
| 43 |
130-9654 |
WIRE-CONTROL Price: $2.59 |
| 44 |
3229-30 |
SCREW-CARR Price: $1.39 |
| 45 |
130-6440-03 |
BRACKET-MOUNT, THROTTLE Price: $30.99 |
| 46 |
130-9655 |
CONTROL-THROTTLE Price: $39.99 |
| 47 |
130-9656 |
DECAL-THROTTLE, CHOKE Price: $2.69 |
| 48 |
32115-15 |
PUSHNUT-RETAINER, BOLT Price: $0.99 |
