| Ref | Part Number | Description |
|---|
| 1 |
20-4840 |
CLAMP-MUFFLER Price: $15.06 |
| 2 |
3217-6 |
NUT-HEX Price: $1.19 |
| 3 |
27-7160 |
DECAL-INSTALLATION Price: $19.89 |
| 4 |
108-3833 |
FILTER-AIR This part replaces 27-7110. Price: $26.73 |
| 5 |
27-7120 |
NUT AND GASKET ASM Price: $15.55 |
| 6 |
27-7140 |
SKIRT-BAFFLE Price: $85.92 |
| 7 |
27-7130 |
CLAMP ASM Price: $49.80 |
| 8 |
27-7150 |
A/C CUP ASM Price: $82.89 |
| 9 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 10 |
95-1836 |
AIR CLEANER HOSE This part replaces 80-0060. Price: $43.61 |
| 11 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 12 |
80-3330 |
GASKET Price: $18.48 |
| 13 |
322-3 |
SCREW-HH Price: $0.79 |
| 14 |
32107-11 |
NUT-SQUARE Price: $0.22 |
| 15 |
27-7170 |
MOUNTING BAND ASM Price: $48.11 |
| 16 |
3258-19 |
SCREW Price: $0.42 |
| 17 |
27-7100 |
AIR CLEANER ASM Price: $323.10 |
| 18 |
43-3810-03 |
TUBE-CLEANER, AIR This part replaces 43-3810. Price: $89.59 |
| 19 |
83-9150 |
DECAL-FLUID, STARTING Price: $20.09 |
| 20 |
27-7180 |
CAP Price: $70.51 |
| 21 |
32128-20 |
NUT-HF Price: $0.99 |

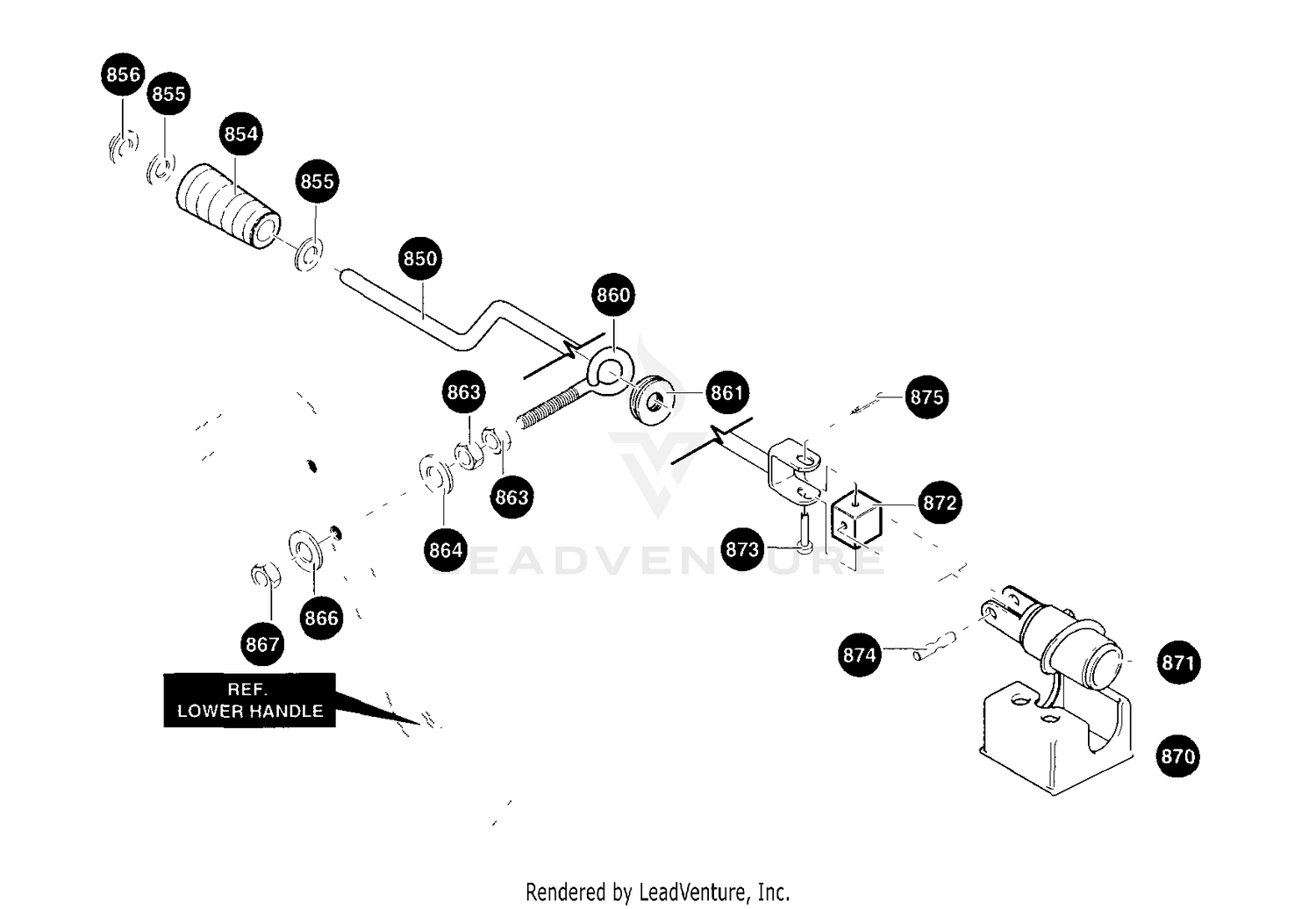

| 850 |
601001749 |
CRANK ASSY W/YOKE Price: $32.99 |
| 854 |
601001569 |
KNOB Price: $2.13 |
| 855 |
601000020 |
WASHER, FLAT .406X .81X. Price: $2.53 |
| 856 |
601001291 |
NUT-PUSH ON 3/8" Price: $3.99 |
| 860 |
601001570 |
BOLT Price: $1.94 |
| 861 |
601001408 |
GROMMET Price: $3.99 |
| 863 |
601001409 |
NUT Price: $2.62 |
| 864 |
601000020 |
WASHER, FLAT .406X .81X. Price: $2.53 |
| 866 |
601000020 |
WASHER, FLAT .406X .81X. Price: $2.53 |
| 867 |
601000653 |
NUT, 3/8-16 HEXNYL Price: $1.99 |
| 870 |
601001830 |
BRACKET, WORM MOUNT Price: $2.28 |
| 871 |
601001831 |
WORM GEAR CHUTE ROTATE 585196 Price: $19.99 |
| 872 |
601002053 |
BLOCK, UNIV Price: $3.99 |
| 873 |
601002054 |
PIN, CLEVIS Price: $3.99 |
| 874 |
601002055 |
PIN, UNIV JOINT Price: $11.99 |
