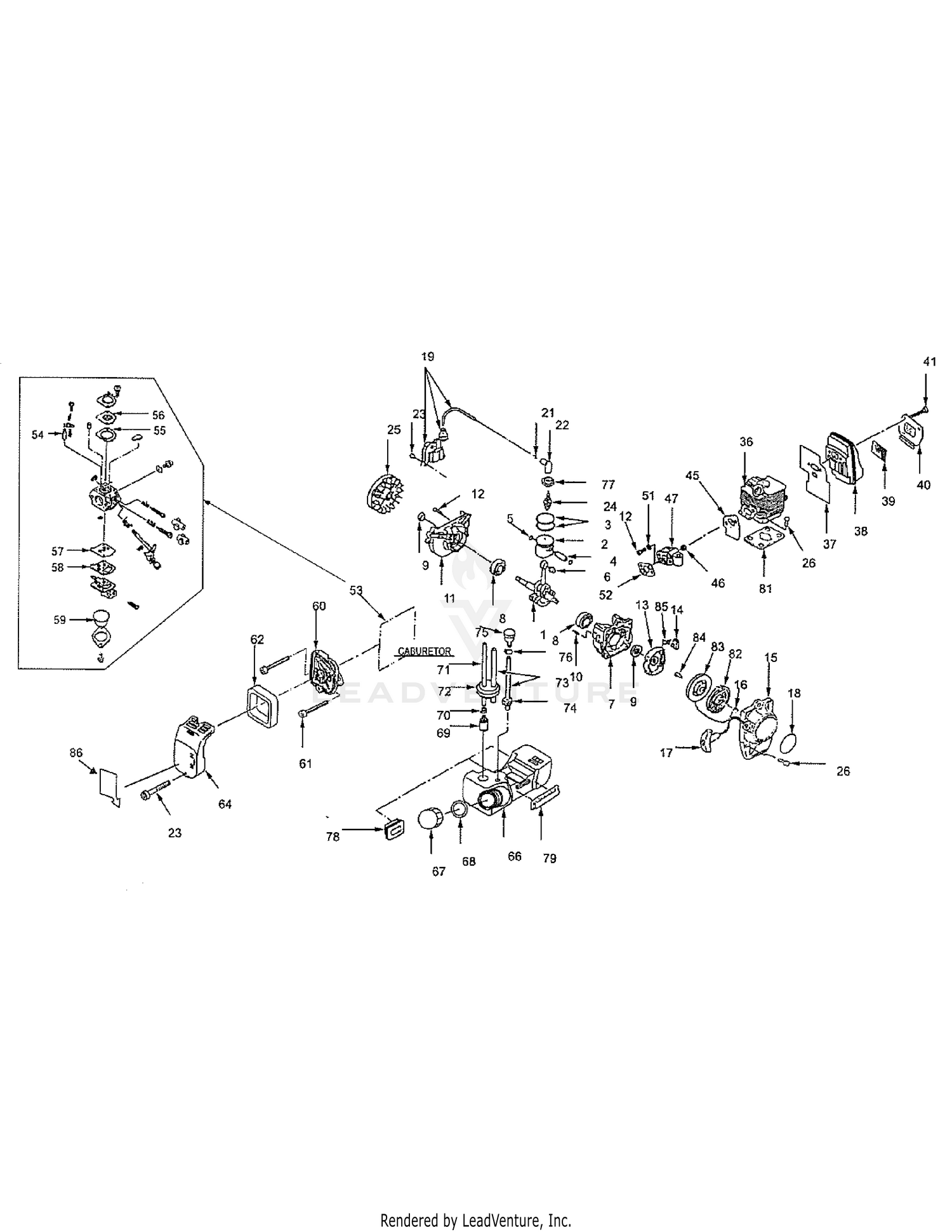

Engine
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 1 | IM-115253470 | CRANKSHAFT Not Available Price: |
| 2 | IM-11501331 | Piston Assembly (Includes 2 Ref. 3) Price: Call Us |
| 3 | IM-11511360 | Ring, Piston Price: Call Us |
| 4 | IM-115323041 | PISTON PIN Not Available This part replaces IM-115323040. Price: |
| 5 | IM-198343210 | CLIP PISTON PIN Not Available Price: |
| 6 | IM-042709008 | BEARING NEEDLE Not Available Price: |
| 7 | IM-110035190 | CRANKCASE ASSEMBLY. Not Available Price: |
| 8 | IM-040106201 | BEARING BALL 6201 Not Available Price: |
| 9 | IM-050209070 | SEAL OIL Not Available Price: |
| 10 | IM-030500512 | DOWEL PIN Not Available Price: |
| 11 | IM-110035201 | CRANKCASE ASSEMBLY. Not Available Price: |
| 12 | IM-010709010 | BOLT M5X25 Not Available Price: |
| 13 | IM-155353090 | PULLEY STARTER Not Available Price: |
| 14 | IM-155163110 | RATCHET Not Available Price: |
| 15 | IM-155103461 | RECOIL ASSEMBLY Not Available Price: |
| 16 | IM-155213050 | ROPE STARTER Not Available Price: |
| 17 | IM-155223061 | KNOB START Not Available Price: |
| 18 | IM-725960230 | PLATE-NAME Not Available Price: |
| 19 | IM-150053370 | COIL ASSEMBLY IGNITION Not Available Price: |
| 21 | IM-198213300 | SPRING Not Available Price: |
| 22 | IM-150413034 | PLUG CAP Not Available Price: |
| 23 | IM-010709018 | BOLT M4X20 Not Available Price: |
| 24 | IM-150265091 | Spark Plug Price: $11.30 |
| 25 | IM-150103500 | FLYWHEEL MAGNETO Not Available Price: |
| 26 | IM-010709009 | BOLT M5 X 20 Not Available Price: |
| 36 | IM-110213561 | CYLINDER Not Available Price: |
| 37 | N/A | Gasket, Muffler See Ref. 80 |
| 38 | IM-135403610 | Muffler Not Available Price: |
| 39 | IM-135493010 | ARRESTER Not Available Price: |
| 40 | IM-135433670 | PLATE BAFFLE OUTER Not Available Price: |
| 41 | IM-010709057 | BOLT M5X Not Available Price: |
| 45 | N/A | Gasket, Insulator See Ref. 80 |
| 46 | IM-020100005 | NUT Not Available Price: |
| 47 | IM-199513590P | INSULATOR Not Available This part replaces IM-199513590. Price: |
| 51 | IM-026100005 | WASHER Not Available Price: |
| 52 | N/A | Gasket See Ref. 80 |
| 53 | IM-130104401 | CARBURETOR ASSEMBLY Not Available Price: |
| 54 | IM-130153240 | FLOAT VALVE Not Available Price: |
| 55 | IM-130123350 | GASKET Not Available Price: |
| 56 | IM-130283357 | DIAPHRAGM METERING Not Available Price: |
| 57 | IM-130513409 | PUMP DIAPHRAGM Not Available Price: |
| 58 | IM-130513413 | GASKET Not Available Price: |
| 59 | IM-198113900 | Rubber Price: $21.58 |
| 60 | IM-135713500 | Case, Air Silencer Price: $16.83 |
| 61 | IM-10709021 | Bolt, M5x50 Price: Call Us |
| 62 | IM-135263360 | Element, Air Filter Price: $8.24 |
| 64 | IM-135713510 | CASE CAP Not Available Price: |
| 66 | IM-160113280 | FUEL TANK Not Available Price: |
| 67 | IM-160033201 | Cap Assembly, Fuel Tank This part replaces IM-160033200. Price: $9.51 |
| 68 | IM-160993100 | GASKET Not Available Price: |
| 69 | IM-130303290 | Filter, Fuel Not Available Price: |
| 70 | IM-198343260 | CLIP Not Available Price: |
| 71 | IM-198163080 | HOSE Not Available Price: |
| 72 | IM-198113730 | Rubber Price: $10.28 |
| 73 | IM-068209182 | HOSE Not Available Price: |
| 74 | IM-198113560 | RUBBER Not Available Price: |
| 75 | IM-160043121 | VALVE ASSEMBLY-REVERSING ALL Not Available Price: |
| 76 | IM-198343060 | CLIP Not Available Price: |
| 77 | IM-198113920 | RUBBER Not Available Price: |
| 78 | IM-198113620 | RUBBER Not Available Price: |
| 79 | IM-198113740 | RUBBER Not Available Price: |
| 80 | IM-135994240 | KIT GASKET Not Available Price: |
| 81 | IM-110993421 | GASKET, CYLINDER Not Available Price: |
| 82 | IM-155263270 | SPRING SPIRAL Not Available Price: |
| 83 | IM-155183121 | REEL Not Available Price: |
| 84 | IM-155343050 | SCREW Not Available Price: |
| 85 | IM-155263261 | SPRING RETURN Not Available Price: |
