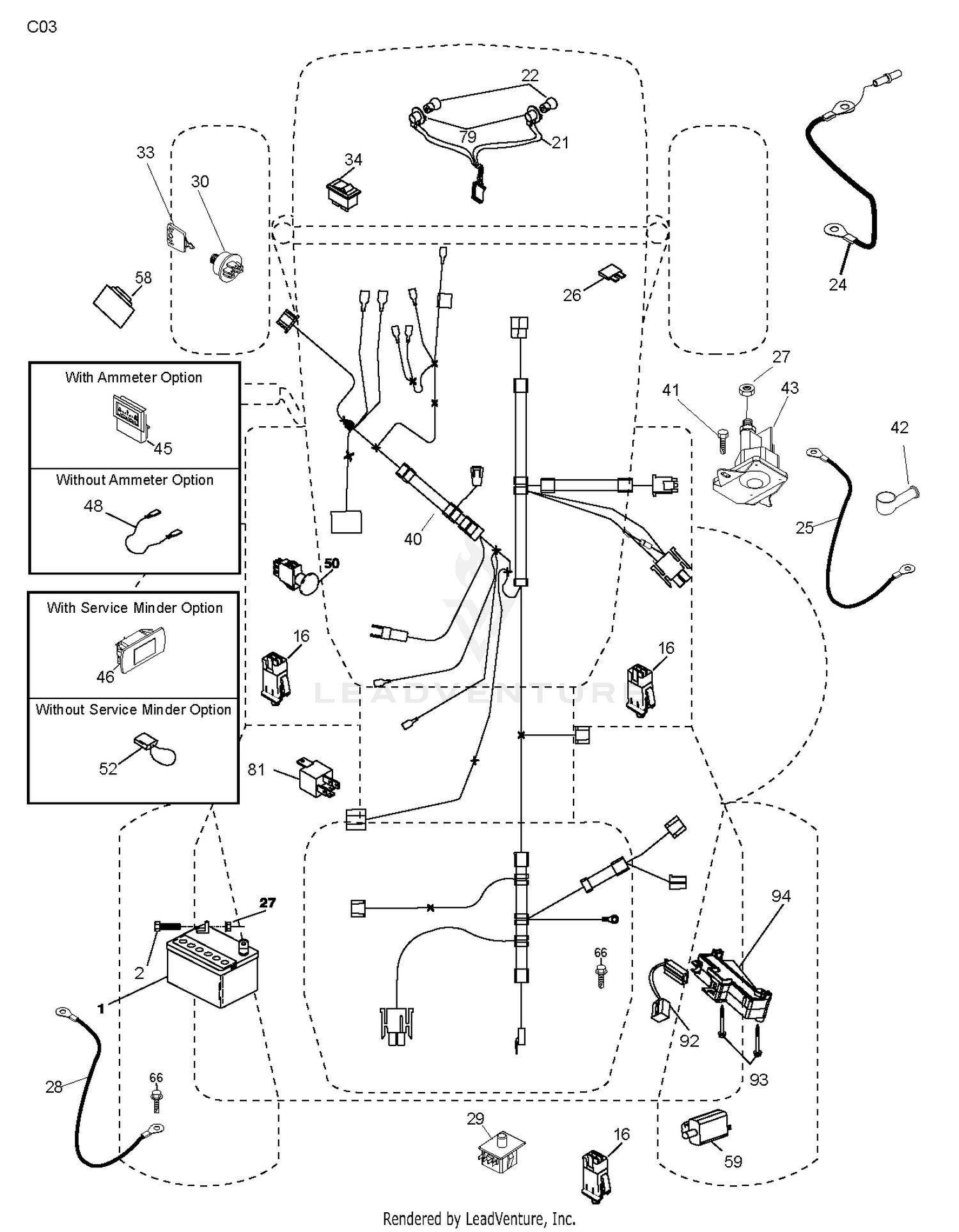

| Ref | Part Number | Description |
|---|
| 1 |
115-4400-03 |
FRAME-SEAT Price: $374.32 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
115-4411-03 |
PLATE-SEAT Price: $408.24 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
104-4821 |
SPRING-TORSION Price: $6.26 |
| 4 |
115-4423-03 |
LATCH-SEAT PLATE Price: $22.94 |
| 5 |
110-0618 |
PIN-CLEVIS Price: $1.42 |
| 6 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 7 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 8 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 9 |
117-4797-03 |
ROD-SEAT FRAME Price: $27.46 |
| 10 |
107-1865 |
R-Clamp Price: $6.86 |
| 11 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 12 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 13 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 14 |
32105-15 |
SCREW-HWH Price: $1.79 |
| 15 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
66-9302 |
SCREW-HHF, WHIZ Price: $4.49 |
| 17 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 19 |
104-7201 |
NUT-HF Price: $0.69 |
| 20 |
110-0413 |
SEATBELT-RETRACTABLE Price: $286.99 |
| 21 |
3212-4 |
SCREW-HH Price: $2.73 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
119-0000-03 |
CHANNEL-SUPPORT Price: $42.04 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
117-4798-03 |
ARM-SUPPORT Price: $114.47 |
| 24 |
112-7449 |
STRAP-SUPPORT This part replaces 112-7449-03. Price: $7.18 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 25 |
532165987 |
CABLE BATTERY Price: $22.99 |
| 26 |
17-7190 |
SPACER-FINGER Price: $6.51 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
3212-8 |
SCREW-HH Price: $5.69 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 28 |
532127725 |
CABLE GROUND Price: $4.18 |
| 29 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $17.99 |
| 30 |
108-8646 |
SCREW-HH, LOCK Price: $2.85 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 32 |
112-7405 |
NUT-HEX, COUPLING Price: $33.55 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532197434 |
RP HARNESS.IGN.ELECT.REG.CRD Price: $74.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
532413931 |
Price: Call Us |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 58 |
532169420 |
KIT.BUZZER.CRD This part replaces 532169419. Price: $64.99 |
| 66 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 81 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $19.99 |
