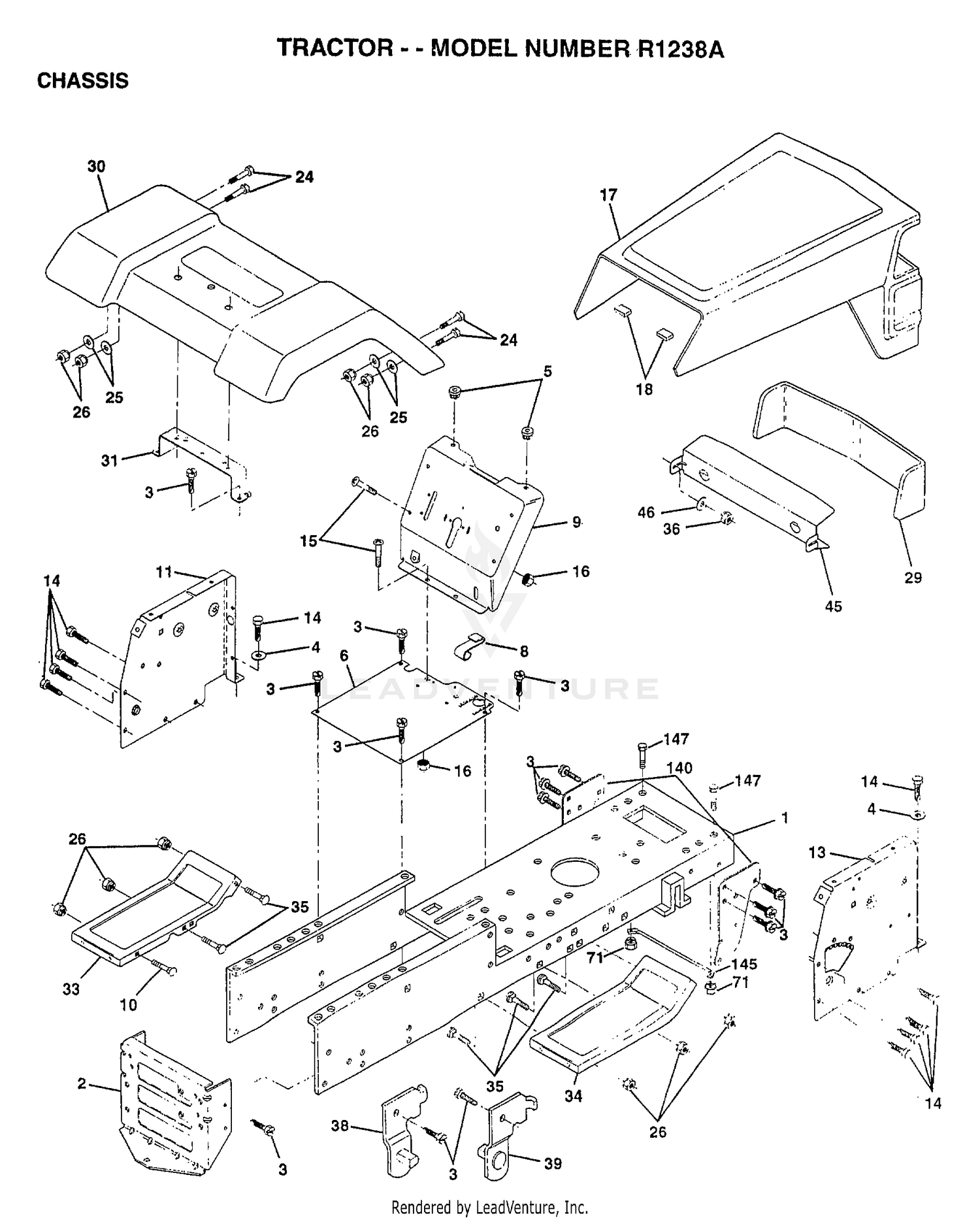

CHASSIS
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 159530 | CHASSIS ASM Price: Call Us |
| 1 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 2 | 140356 | SUB= 145009 Price: Call Us |
| 2 | 323-4 | SCREW-HH Price: $1.02 |
| 3 | 17490612 | SCREW Price: Call Us |
| 3 | 96-1267-03 | PULLEY-FAN Price: $31.57 |
| 4 | 19131216 | WASHER Price: Call Us |
| 4 | 98-3008-03 | HUB-FAN Price: $325.86 |
| 5 | 155272 | BUMPER-HOOD/DASH Price: Call Us |
| 5 | 322-3 | SCREW-HH Price: $0.79 |
| 6 | 33114-070 | SCREW-HH Price: $1.56 |
| 7 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 8 | 155138 | CLIP.RETAINER Price: Call Us |
| 8 | 98-0831 | BEARING-FAN Price: $167.15 |
| 9 | 156272X010 | DASH SILKSCR Price: Call Us |
| 9 | 32151-75 | RING-RETAINING Price: $2.51 |
| 10 | 72140608 | SUB= 72110608 Price: Call Us |
| 10 | 95-6495-03 | HOUSING-BEARING Price: $242.30 |
| 11 | 105-0585-03 | SUPPORT FAN ASM Price: $239.54 |
| 12 | 33104-020 | SCREW-HHF Price: $2.07 |
| 13 | 155934X010 | SUB= 169117X010 Price: Call Us |
| 13 | 5-0838 | WASHER Price: $1.09 |
| 14 | 17490608 | SCREW LT Price: Call Us |
| 14 | 323-6 | SCREW-HH Price: $0.66 |
| 15 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 15 | 74180512 | SCREW Price: Call Us |
| 16 | 106-0308-03 | BRACKET ASM Price: $141.29 |
| 16 | 73510500 | NUT Price: Call Us |
| 17 | 133956X505 | HOOD/GRILL ASM Price: Call Us |
| 17 | 323-7 | SCREW-HH Price: $0.65 |
| 18 | 126938X | SUB= 532126938 Price: Call Us |
| 18 | 33114-045 | SCREW-HH Price: $0.68 |
| 19 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 20 | 3231-6 | SCREW-CARR Price: $2.69 |
| 21 | 98-3013-03 | SUPPORT-FAN Price: $70.73 |
| 22 | 33114-060 | SCREW-HH Price: $0.88 |
| 23 | 106-0375-03 | BRACKET-IDLER Price: $119.65 |
| 24 | 74780616 | BOLT Price: Call Us |
| 24 | 99-4419 | SPACER-IDLER Price: $63.43 |
| 25 | 108-1509-03 | PULLEY-IDLER Price: $76.87 |
| 25 | 19131312 | WASHER Price: Call Us |
| 26 | 32128-21 | NUT-HF Price: $0.39 |
| 26 | 73800600 | NUT Price: Call Us |
| 27 | 95-6477 | DISCONTINUED Price: Call Us |
| 28 | 98-9008 | V-BELT Price: $44.85 |
| 29 | 133954 | LENS SERVICE KIT Price: Call Us |
| 29 | 98-0809 | FAN Price: $363.17 |
| 30 | 109872X505 | FENDER Price: Call Us |
| 30 | 323-5 | SCREW-HH Price: $0.41 |
| 31 | 136619 | BRKT FENDER Price: Call Us |
| 31 | 98-7321 | CLUTCH-FAN, MODULATING Price: $750.75 |
| 32 | 32128-25 | NUT-HF Price: $3.19 |
| 33 | 105476X505 | FOOTREST LH Price: Call Us |
| 34 | 105475X505 | FOOTREST RH Price: Call Us |
| 35 | 72110606 | BOLT Price: Call Us |
| 36 | 108067X | PAL NUT LT Price: Call Us |
| 38 | 139886 | BRACKET ASM LH Price: Call Us |
| 39 | 139887 | BRACKET ASM RH Price: Call Us |
| 45 | 132257 | SUB= 918132257 Price: Call Us |
| 46 | 127316X | RETAINER Price: Call Us |
| 71 | 73680400 | SUB= 73690400 Price: Call Us |
| 140 | 158418 | BRKT SUSPENSION Price: Call Us |
| 147 | 74760412 | BOLT LT Price: Call Us |
