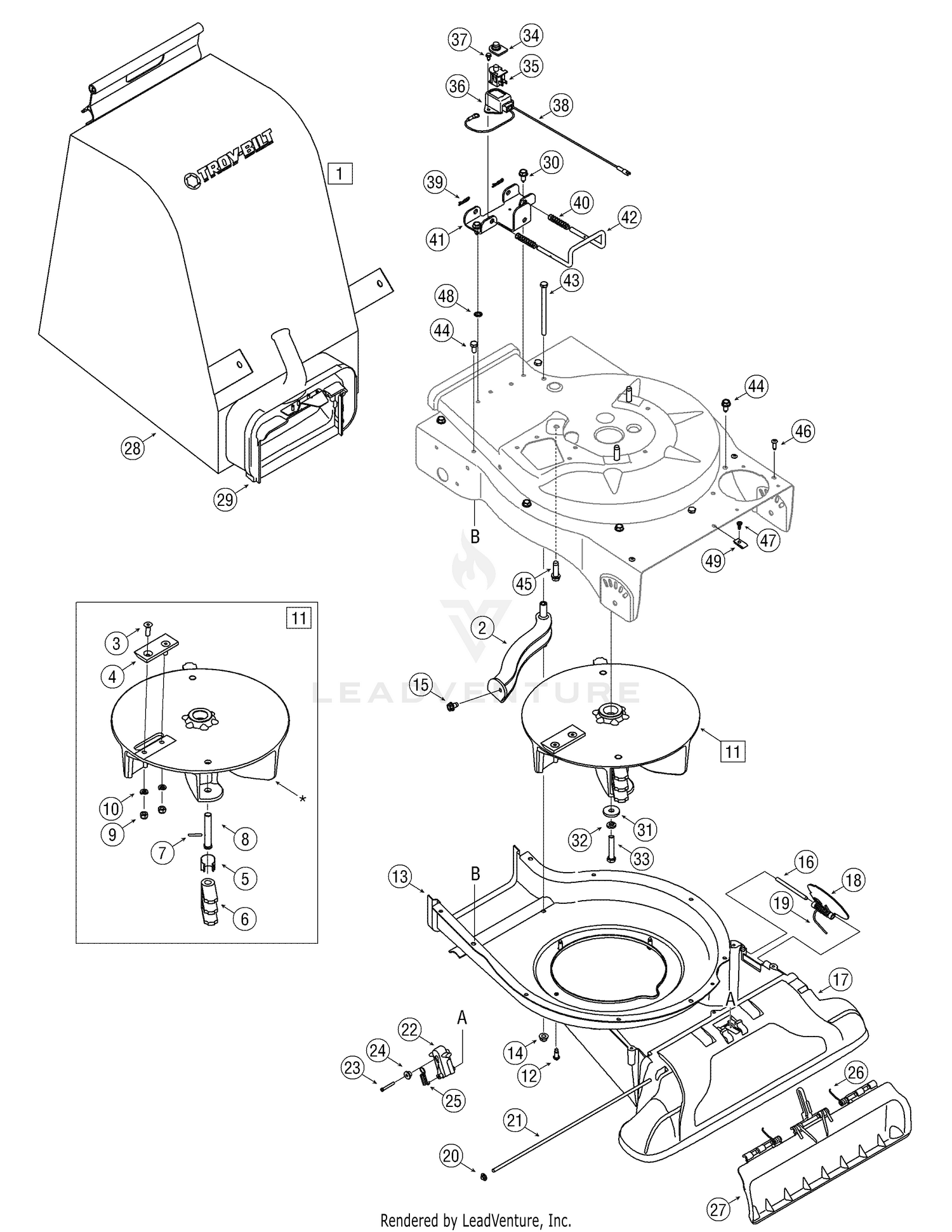

| Ref | Part Number | Description |
|---|
| 2 |
681-0154-0637 |
Screen Assembly This part replaces 681-0154. Price: $42.79 |
| 3 |
710-1054 |
Hex Screw 5/16-24 x 1.0 Price: $3.71 |
| 4 |
981-0490 |
CHIPPER BLADE This part replaces 781-0490. Price: $26.69 |
| 5 |
781-0735 |
Pin Clip Price: $3.71 |
| 6 |
719-0329 |
Flail Price: $27.90 |
| 7 |
715-0166 |
Spiral Pin Price: $5.94 |
| 8 |
711-1401 |
Clevis Pin Price: $8.54 |
| 9 |
712-0411 |
Lock Nut, 5/16-24 Price: $3.71 |
| 10 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 11 |
981-0152 |
IMPELLER ASSEMBLY This part replaces 681-0152. Price: $469.77 |
| 12 |
710-1650 |
Shoulder Screw, #12-24 x.30 x.46 Price: $4.22 |
| 13 |
781-0721B |
Lower Flail Housing Price: $120.30 |
| 14 |
712-04063 |
Flange Lock Nut 5/16-18 Price: $3.56 |
| 15 |
710-0607 |
Screw, 5/16-18 x.500 Price: $6.06 |
| 16 |
747-04297 |
Hinge Pin Price: $5.78 |
| 17 |
981-04031 |
Nozzle This part replaces 731-2293A. Price: $175.47 |
| 18 |
781-1064 |
Base Adapter Door Price: $32.18 |
| 19 |
732-1156 |
Torsion Spring Price: $4.22 |
| 20 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 21 |
711-1551 |
Pivot Rod Price: $10.96 |
| 22 |
731-04967 |
Nozzle Door Lever Price: $12.13 |
| 23 |
710-1256 |
Hex Screw, #8-18 x 1.25 Price: $5.25 |
| 24 |
750-1294 |
Shoulder Spacer Price: $11.82 |
| 25 |
732-3118 |
Extension Spring Price: $8.78 |
| 26 |
732-1151A |
Nozzle Door Torsion Spring Price: $4.17 |
| 27 |
731-2294A |
Nozzle Door Price: $37.59 |
| 28 |
664-04029 |
Bag, with Troy-Bilt Logo Price: $228.93 |
| 28 |
664-04040 |
Bag, Black with no logo Price: $201.99 |
| 29 |
631P0083A |
CHUTE DISCHARGE ASSEMBLY This part replaces 631-0083. Price: $94.09 |
| 30 |
710-0726 |
Hex Index Screw, 5/16-12 x.750 Price: $3.82 |
| 31 |
736-0247 |
Flat Washer.375 ID x 1.25 OD Price: $8.82 |
| 32 |
736-0217 |
Lock Washer 3/8 Price: $3.86 |
| 33 |
710-0818 |
Hex Cap Screw 3/8-24 x 2.0 Price: $5.95 |
| 34 |
925-1700 |
Switch Cover This part replaces 725-1700. Price: $10.40 |
| 35 |
925-3166 |
Switch This part replaces 725-3166. Price: $15.61 |
| 36 |
931-1613 |
Safety Switch Mounting Cover This part replaces 731-1613. Price: $9.16 |
| 37 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 This part replaces 710-0224. Price: $3.19 |
| 38 |
629-0920A |
Wire Harness Price: $36.64 |
| 39 |
714-0104 |
Cotter Pin Price: $3.90 |
| 40 |
732-0962 |
Compression Spring Price: $3.75 |
| 41 |
781-0778A-0637 |
Mounting Bracket This part replaces 781-0778A. Price: $15.07 |
| 42 |
747-1153 |
Lock Rod Price: $14.50 |
| 43 |
710-3195 |
Hex Cap Screw 5/16-18 x 4.5 Price: $6.38 |
| 44 |
710-3025 |
Hex Cap Screw 5/16-18 x.625 Price: $3.64 |
| 45 |
710-0502A |
Hex Washer Screw 3/8-16 x 1.25 Price: $5.71 |
| 46 |
710-1220 |
Screw, #12-16 x.750 Price: $3.96 |
| 47 |
710-0351 |
Screw #10 - 16 x.500 Price: $3.90 |
| 48 |
736-0607 |
External L-Washer 5/16 Price: $3.66 |
| 49 |
726-0139 |
Speed Nut Price: $5.94 |
