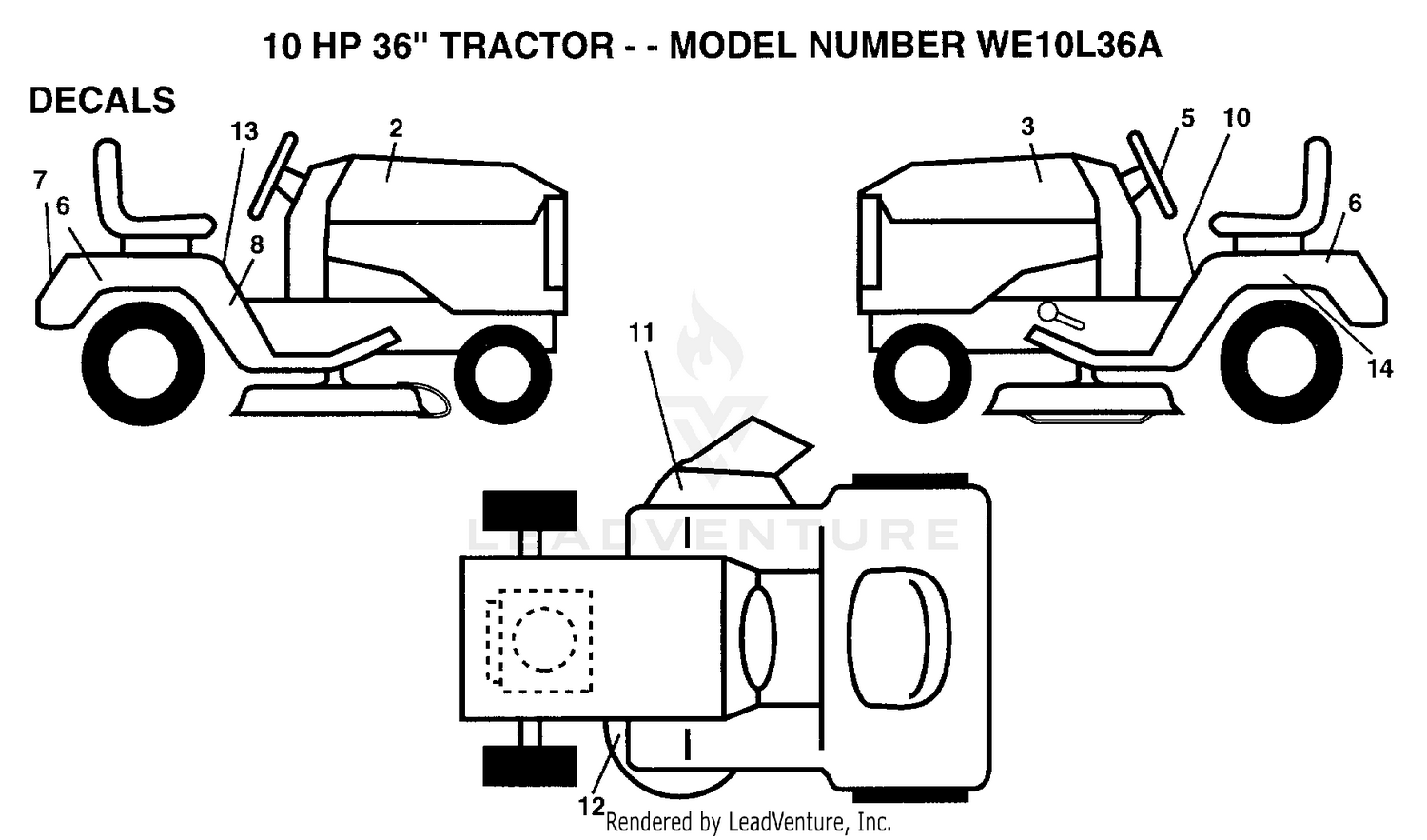

| Ref | Part Number | Description |
|---|
| 2 |
139063 |
DECAL.STRIPE.RH Price: Call Us |
| 3 |
139064 |
DECAL.STRIPE.LH Price: Call Us |
| 5 |
137042 |
DECAL.WHL.STRG. Price: Call Us |
| 6 |
138804 |
DECAL.FEND.QUICKS Price: Call Us |
| 7 |
137043 |
DECAL.FENDER Price: Call Us |
| 8 |
139181 |
DECAL.CENTER.SHIF Price: Call Us |
| 010 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
123637X |
SUB= 138269 Price: Call Us |
| 12 |
136830 |
DECAL.V.BELT Price: Call Us |
| 13 |
133795 |
DECAL CAUTION Price: Call Us |
| 14 |
121549X |
DECAL Price: Call Us |
| 020 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 030 |
98-7708 |
NUT Price: $7.76 |
| 040 |
98-7709 |
COLLAR Price: $8.79 |
| 050 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 060 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 070 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 080 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 090 |
98-7714 |
FRAME-END, DRIVE Price: $311.88 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 140 |
98-7719 |
FRAME-END Price: $88.65 |
| 150 |
98-7720 |
COVER-END Price: $39.58 |
| 160 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
| 138698 |
MANUAL.OPERATOR |
Price: Call Us 138698 |
| 138699 |
NLA |
Price: Call Us 138699 |
| 139586 |
MANUAL.P.WE10L36A |
Price: Call Us 139586 |
