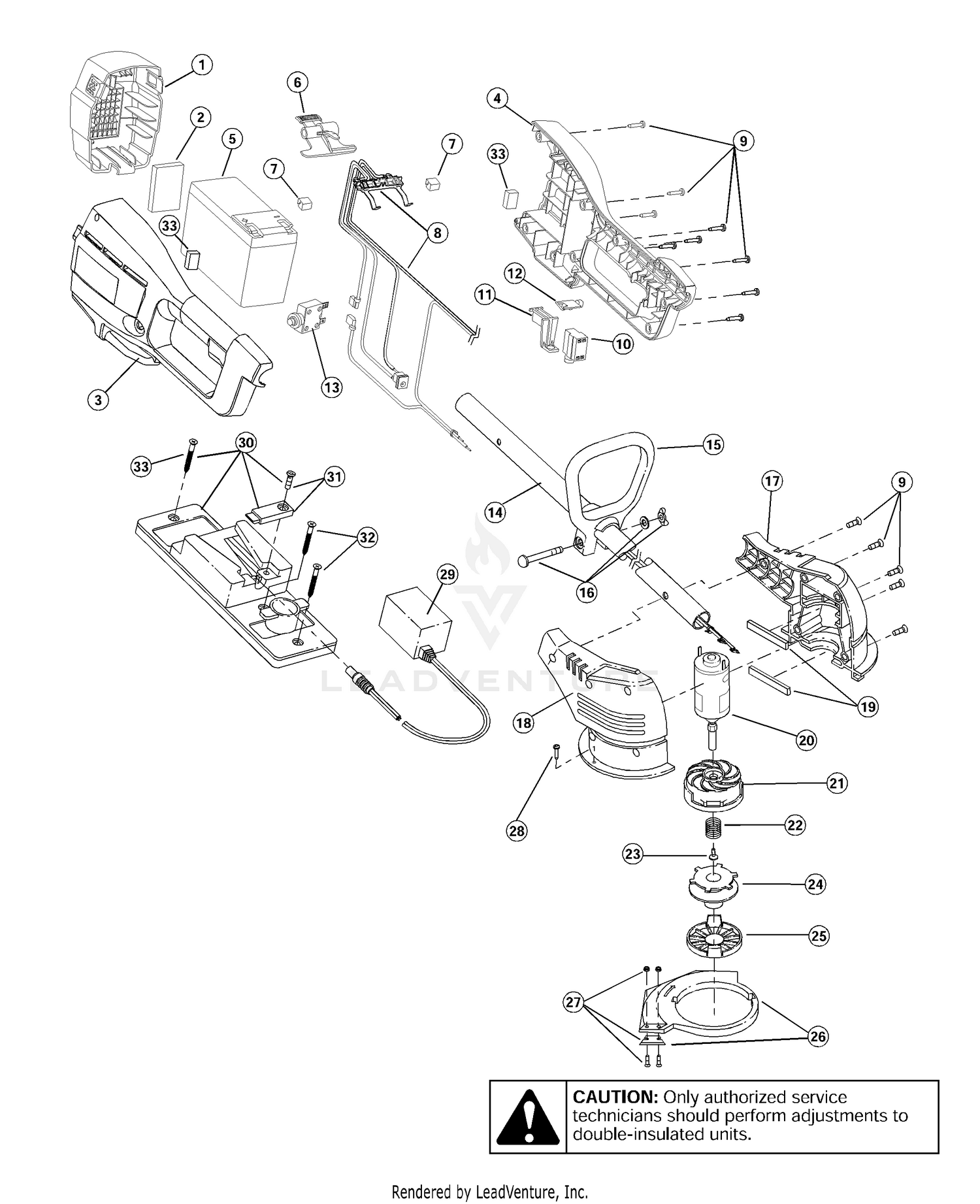

| Ref | Part Number | Description |
|---|
| 1 |
791-182696 |
DOOR, BATTERY 155R Not Available Price: |
| 2 |
791-182542 |
CUSHION, BATTERY ( Not Available Price: |
| 3 |
753-04487 |
BATTERY HOUSING SE Not Available This part replaces 753-04354. Price: |
| 4 |
753-04487 |
BATTERY HOUSING SE Not Available This part replaces 753-04355. Price: |
| 5 |
791-182391 |
LSA POWER- Not Available Price: |
| 6 |
791-182699 |
LATCH, BATTERY 155 Not Available Price: |
| 7 |
791-182702 |
TERMINAL SPACER Not Available Price: |
| 8 |
791-182724 |
ASSEMBLY, WIRE HARNESS Not Available Price: |
| 9 |
791-181482 |
Housing Screw Price: $3.94 |
| 11 |
791-182318 |
TRIGGER, ELECTRIC Not Available Price: |
| 12 |
791-182705 |
SW, SAFETY RELEASE Not Available This part replaces 791-180364. Price: |
| 13 |
791-180365 |
SW, THERMAL OVERLOAD Not Available Price: |
| 14 |
791-180367 |
ASSEMBLY, BATTERY TRIMM Not Available Price: |
| 16 |
791-181587 |
Handle Hardware Price: $17.15 |
| 17 |
753-04356 |
HOUSING:MOTOR:(LH) Not Available Price: |
| 18 |
753-04357 |
HOUSING:MOTOR:(RH) Not Available Price: |
| 19 |
791-180369 |
DAMPER-MOTOR VIBRA Not Available Price: |
| 20 |
791-182715 |
Motor with Shaft Price: $69.46 |
| 21 |
791-180372 |
SP:OTR:SGL STRNG:B Not Available Price: |
| 22 |
791-180374 |
Spring Price: $9.52 |
| 23 |
791-180375 |
ASSEMBLY, SCREW & WASHER Not Available Price: |
| 24 |
791-180292B |
Inner Reel with .080" Line This part replaces 791-180292. Price: $18.48 |
| 25 |
791-180376 |
CVR, REEL (BATTERY TRIMMER) Not Available Price: |
| 26 |
791-180293 |
ASSEMBLY: GRD/BL:BAT TRIM Not Available Price: |
| 27 |
791-180377 |
ASSEMBLY, LINE CUT-OFF BLADE Not Available Price: |
| 28 |
1755 |
Screw This part replaces 791-182469. Price: $3.37 |
| 29 |
791-182534 |
BATTERY CHARGER 12 VOLT Price: $66.04 |
| 31 |
791-180378 |
ASSEMBLY, WALL STATION Not Available Price: |
| 32 |
791-182709 |
SCREW:6 x 2.0" DRYWA Not Available Price: |
| 33 |
753-04007 |
FOAM CUSHON Not Available Price: |
