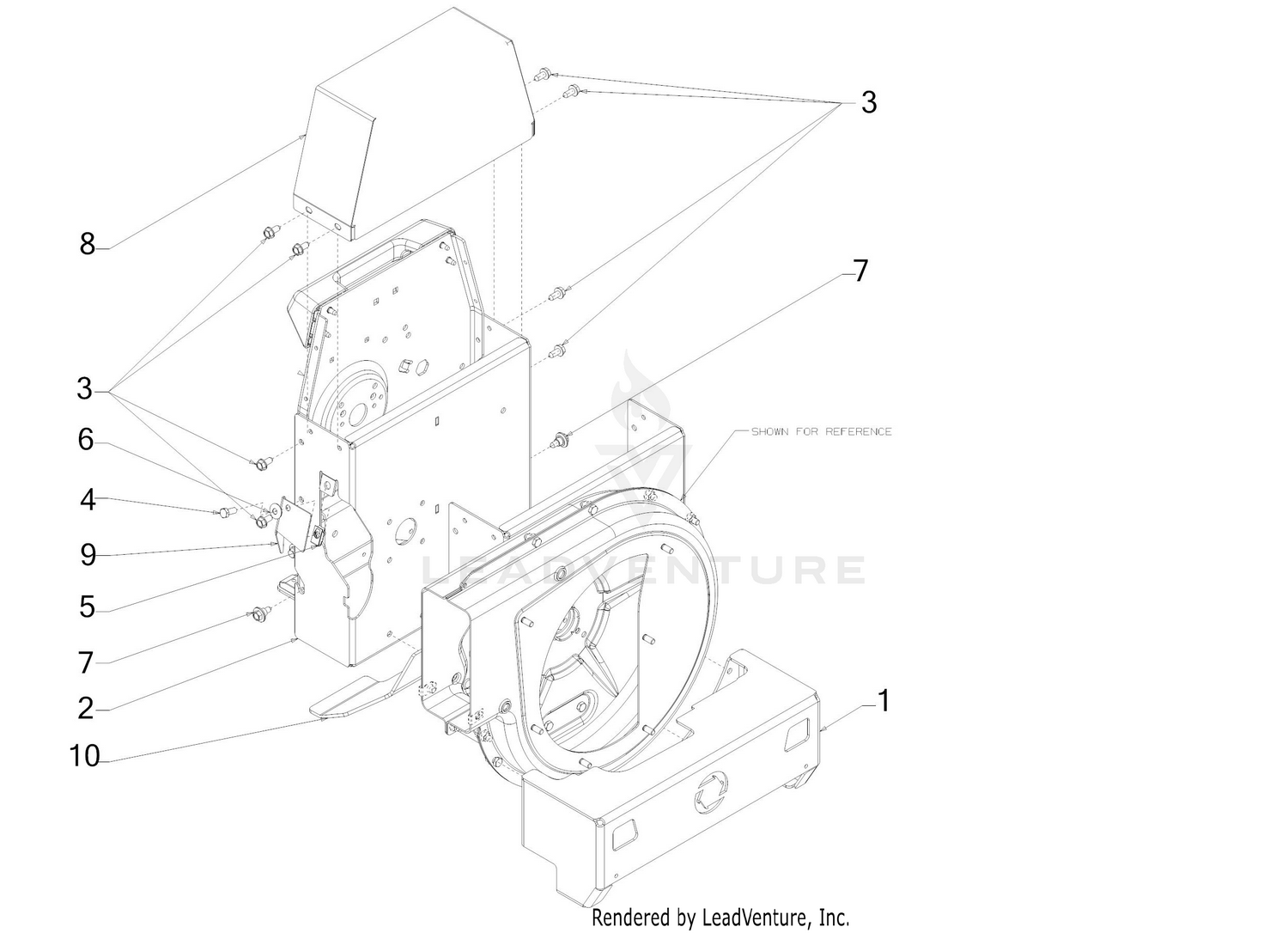

| Ref | Part Number | Description |
|---|
| 1 |
687-05211A-0638 |
WHEEL FRAME WELDMENT (MTD RED) Not Available Price: |
| 2 |
687-05212A-0638 |
FRAME WELDMENT ASSEMBLY (MTD RED) Not Available Price: |
| 3 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 4 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 5 |
726-0211 |
One Mulch Plug Drill Guide This part replaces 926-0211. Price: $3.90 |
| 6 |
736-0242 |
BELL WASHER .337 X.867 x .057 Price: $3.75 |
| 7 |
738-04091A |
SHOULDER SCREW .43X.29X5/16-18 TT Price: $3.50 |
| 8 |
787-03524-0638 |
FRAME MOUNTING COVER BRACKET (MTD RED) Not Available Price: |
| 9 |
787-03583-0638 |
PULL COVER BRACKET (MTD RED) Not Available Price: |
