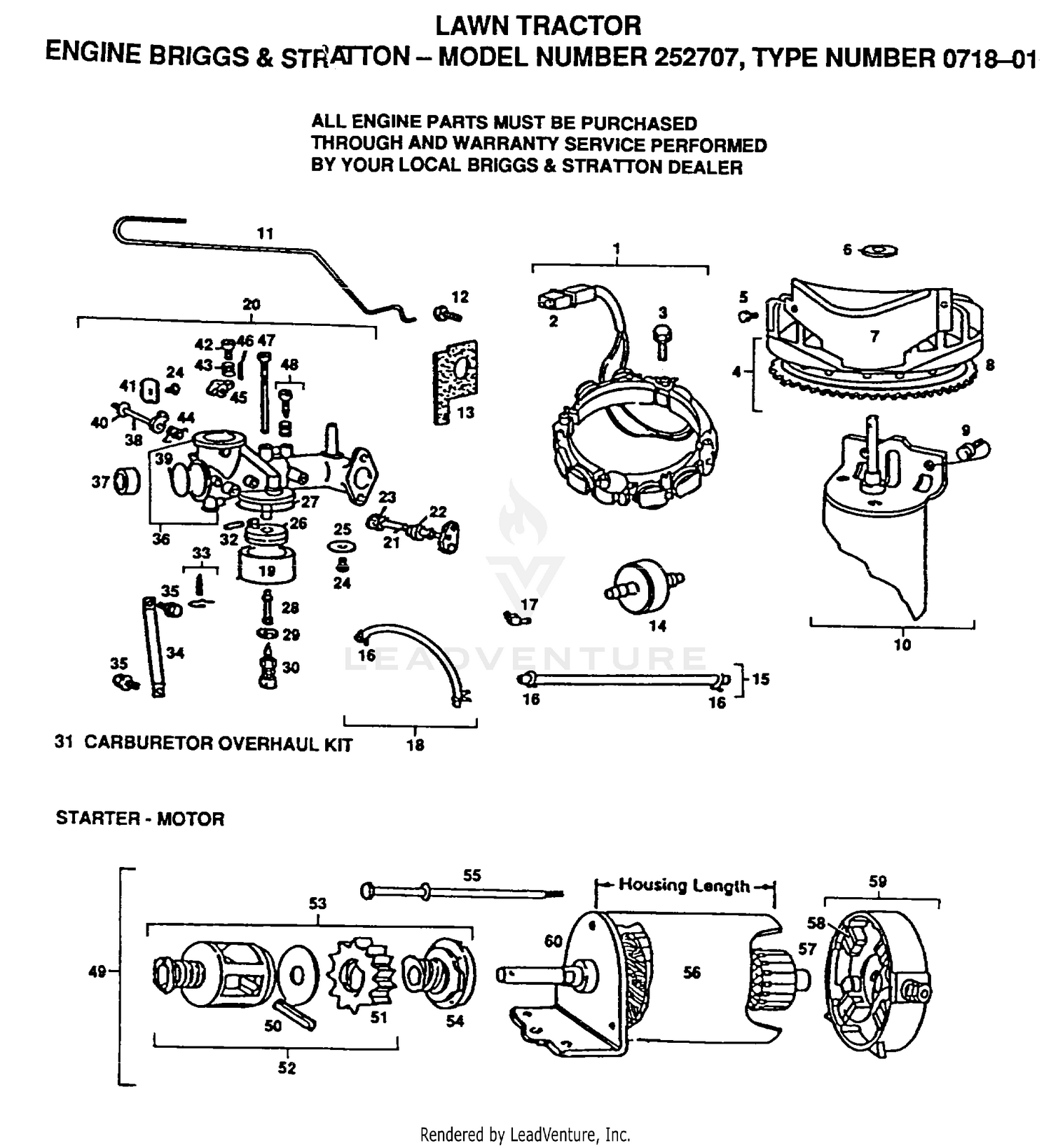

| Ref | Part Number | Description |
|---|
| 1 |
393474 |
STATOR, ALTERNATOR, DUAL CIRCUIT Price: Call Us |
| 1 |
95-7532 |
DISCONTINUED Price: Call Us |
| 2 |
393456 |
DIODE & CONNECTOR ASSY Price: Call Us |
| 2 |
99-7594 |
SEAL-OIL Price: $5.99 |
| 3 |
93621 |
SCREW, SEMS Price: Call Us |
| 3 |
99-7535 |
PLUG Price: $8.15 |
| 4 |
391988 |
FLYWHEEL & RING ASSY Price: Call Us |
| 4 |
99-7536 |
WASHER-SEAL Price: $2.58 |
| 5 |
93984 |
SCREW, SEMS Price: Call Us |
| 5 |
95-7528 |
GEAR-BEVEL, 27 TOOTH Price: $333.09 |
| 6 |
224061 |
WASHER, SPRING Price: Call Us |
| 6 |
99-7532 |
BEARING-ROLLER, TAPER Price: $45.81 |
| 7 |
395405 |
COVER, STARTER Price: Call Us |
| 7 |
95-7526 |
COVER-AXLE Price: $87.93 |
| 8 |
106-1072 |
O-RING This part replaces 99-7537. Price: $21.08 |
| 8 |
392134 |
GEAR, RING Price: Call Us |
| 9 |
93535 |
SCREW, HEX HEAD Price: Call Us |
| 9 |
99-7589 |
PLUG Price: $3.73 |
| 10 |
99-7590 |
WASHER-SEAL Price: $2.94 |
| 11 |
261610 |
LINK, CHOKE Price: Call Us |
| 12 |
93357 |
SCREW, SEMS, CARBURETOR MOUNTING Price: Call Us |
| 13 |
270872 |
GASKET, CARBURETOR Price: Call Us |
| 14 |
298090 |
FILTER, FUEL Price: Call Us |
| 15 |
393815 |
HOSE (CUT TO SUIT) Price: Call Us |
| 16 |
93053 |
CLAMP, HOSE, GREEN Price: Call Us |
| 17 |
67218 |
CONNECTOR, FUEL PIPE Price: Call Us |
| 18 |
390674 |
PIPE, VENT Price: Call Us |
| 19 |
221995 |
BOWL, FLOAT Price: Call Us |
| 20 |
491026 |
CARBURETOR ASSY Price: Call Us |
| 21 |
491006 |
SHAFT & LEVER, THROTTLE Price: Call Us |
| 22 |
398970 |
SEAL, THROTTLE SHAFT Price: Call Us |
| 23 |
271853 |
WASHER, THROTTLE SHAFT, FOAM Price: Call Us |
| 24 |
93499 |
SCREW Price: Call Us |
| 25 |
222433 |
VALVE, THROTTLE Price: Call Us |
| 26 |
299707 |
FLOAT, CARBURETOR Price: Call Us |
| 27 |
270511 |
GASKET, FLOAT BOWL Price: Call Us |
| 28 |
231323 |
SCREW Price: Call Us |
| 29 |
222014 |
WASHER Price: Call Us |
| 30 |
396568 |
VALVE, NEEDLE Price: Call Us |
| 31 |
394698 |
CARBURETOR OVERHAUL KIT Price: Call Us |
| 32 |
230896 |
PIN, FLOAT HINGE Price: Call Us |
| 33 |
394681 |
VALVE, FUEL INLET Price: Call Us |
| 34 |
222311 |
BRACKET, CARBURETOR Price: Call Us |
| 35 |
93572 |
SCREW Price: Call Us |
| 36 |
391787 |
BODY ASSY, CARBURETOR Price: Call Us |
| 37 |
211960 |
VENTURI, CARBURETOR Price: Call Us |
| 38 |
390684 |
SHAFT & LEVER, CHOKE Price: Call Us |
| 39 |
221997 |
PLUG WELSH Price: Call Us |
| 40 |
270382 |
WASHER, FOAM Price: Call Us |
| 41 |
222010 |
VALVE, CHOKE Price: Call Us |
| 42 |
91920 |
SCREW, MACHINE, FILLISTER HEAD Price: Call Us |
| 43 |
26157 |
SPRING, THROTTLE ADJUSTMENT Price: Call Us |
| 44 |
261116 |
SPRING, CHOKE RETURN Price: Call Us |
| 45 |
211712 |
STOP, THROTTLE Price: Call Us |
| 46 |
93043 |
PIN, THROTTLE STOP Price: Call Us |
| 47 |
299740 |
NOZZLE CARBURETOR Price: Call Us |
| 48 |
292681 |
VALVE ASSEMBLY, CARBURETOR IDLE SCREW, SEMS Price: Call Us |
| 49 |
394805 |
MOTER AND DRIVE ASSY. Price: Call Us |
| 50 |
94288 |
ROLL PIN Price: Call Us |
| 51 |
280104 |
GEAR, STARTER Price: Call Us |
| 52 |
490467 |
PINION SPRING KIT Price: Call Us |
| 53 |
490421 |
STARTER DRIVE GROUP Price: Call Us |
| 54 |
398003 |
CLUTCH ASSEMBLY Price: Call Us |
| 55 |
94003 |
BOLT Price: Call Us |
| 56 |
393825 |
HOUSING ASSEMBLY Price: Call Us |
| 57 |
390837 |
ARRMATURE ASSEMBLY Price: Call Us |
| 58 |
395538 |
BRUSH ASSEMBLY Price: Call Us |
| 59 |
395537 |
END CAP ASS'Y. COMMUTATOR Price: Call Us |
