Home / OPE / Snapper / Snow Throwers / Single Stage Snow Throwers / Single Stage Snow Throwers (22" Models) / 1697340-00 - 1022EX, 9.5 Gross TP 22" Single Stage Snowthrower (2020) / Auger Drive Group

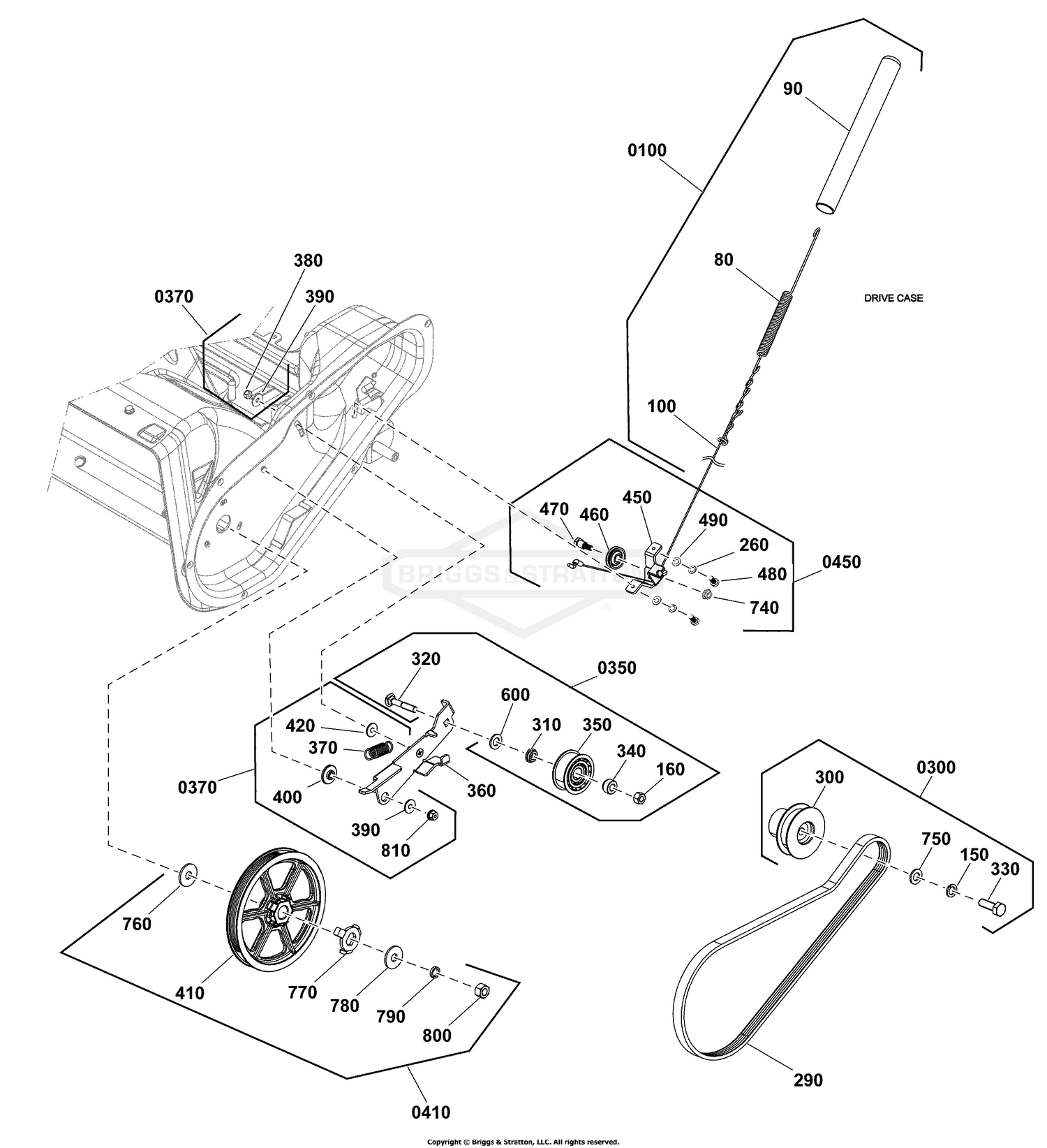

Auger Drive Group

Auger Drive Group

Parts (4)

RefPart NumberDescription
290 709868 BELT, Drive Price: $36.18
330 001X20MA BOLT,HEX.37 24X1.00 Z This part replaces 720016. Price: $3.85
360 709927 PLATE, Tension Price: $11.55
370 709869 SPRING, Tension Price: $5.66
